Flexo Print Label a3 Die Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mylar Cutter With Automatic Die CuttingNegotiableMOQ: 1 -
Paper Creasing Machine and Die Cutting MachineNegotiableMOQ: 1
-
High Precision Plastic Die Cutting MachineNegotiableMOQ: 1
-
Flatbed Die Cutting Machine for Paper Label and Films DP-320BNegotiableMOQ: 1
-
Electronic Sponges Die Cutting MachineNegotiableMOQ: 1

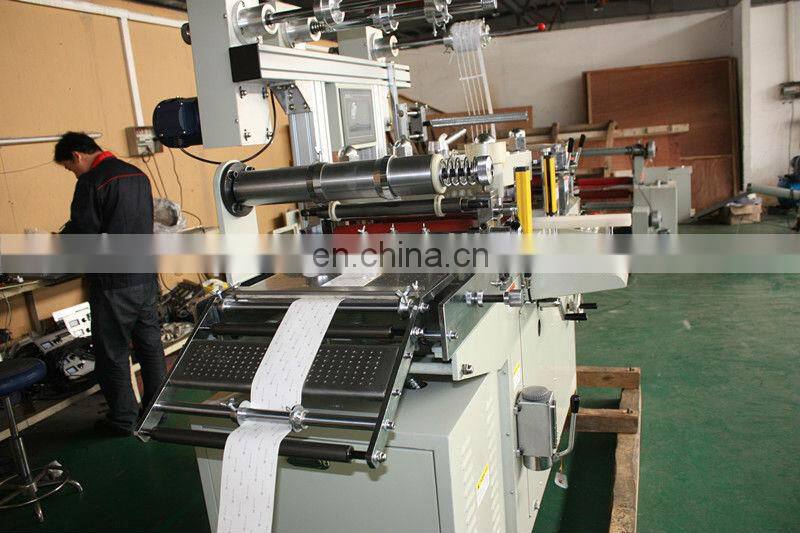

Flexo Print Label a3 die cutting machine
Main Specifications:

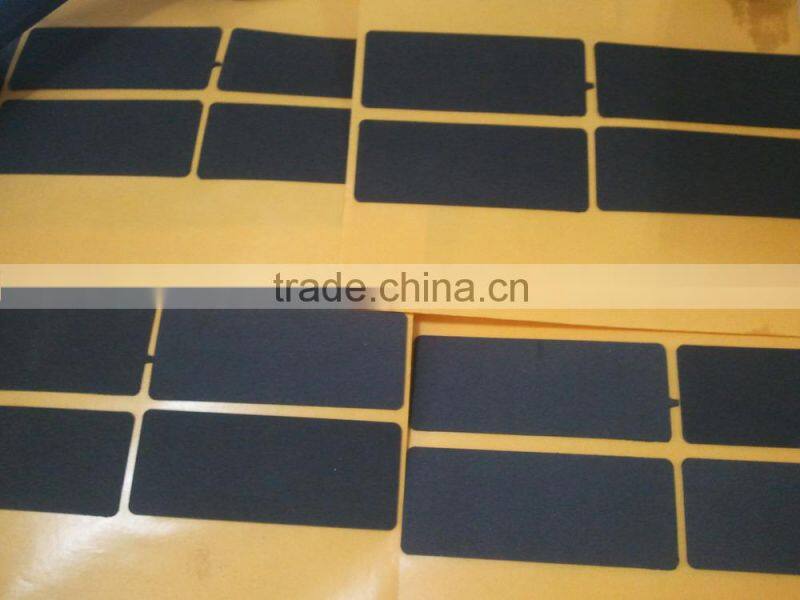

It is suitable for die cutting of adhesive paper, Dacron label, thermal label and laser hologram mark. |
Roll die-cutter Machine adopts accurate flatten die-cutting system, material towing controlled by computer, web-guilding by three photoelectric eyes |
Die cutting, waste rewinding and finished-material rewinding are finished in one process. |
Die cutting pressure can be micro- adjustable. |
Die cutting is from Top to Down, more advance. |
This is the ideal association equipment for the flexo printing machine |
Main Technical Parameters:
| Model | DP-320 |
| Cutting speed | 20-170 times/min |
| Max unwinding | diameter:500mm |
| Max web width | 320mm/420mm |
| Max. die-cutting area | 320X300mm 420X400mm |
| Max. die-cutting length | 300mm 400mm |
| Orientation accuracy | +-0.15mm |
| Whole power | 3.5kw |
| Power | 220+-10% |
| Machine weight | 1700kg |
| Overall diamension | 2.6x0.95x1.4 m (LxWxH) |
