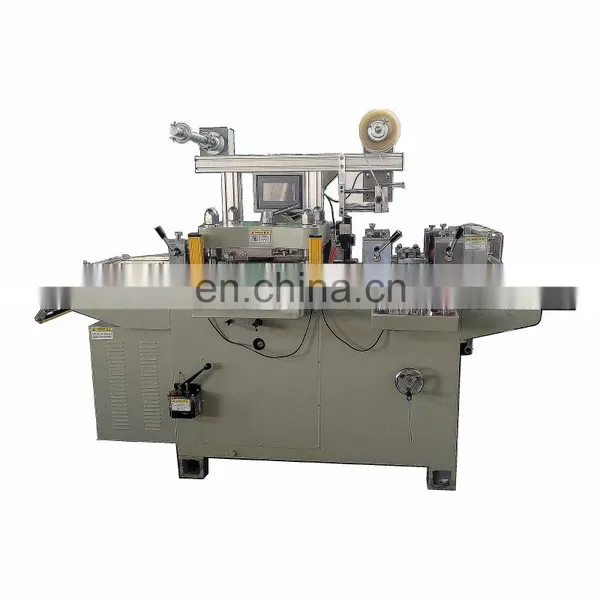

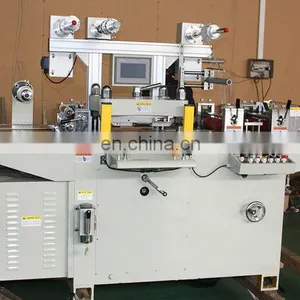

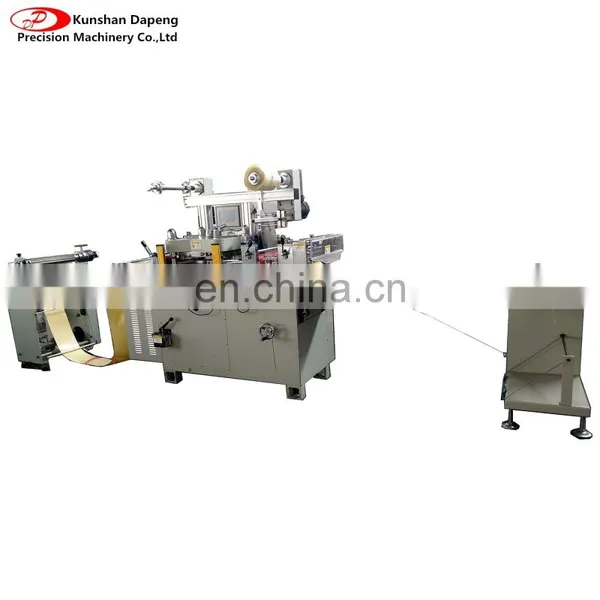

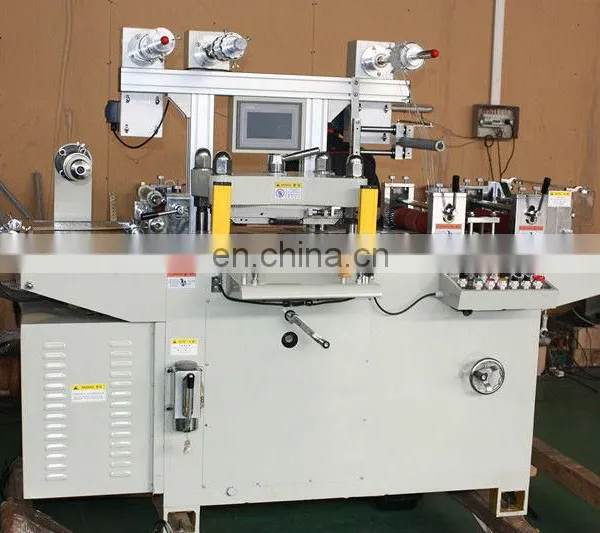

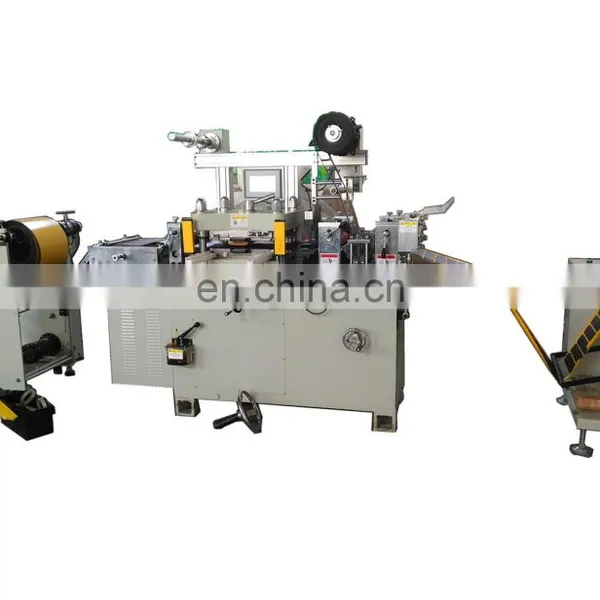

DP-320B Automatic Jigsaw Puzzle Die Cutting Machine
This is a high precision machine with computerize control system.
Operating movements are digitally controlled by photo sensor.
Our Adhesive label plain die cutting machine can also be installed with hot stamping device match with your special needs. This set is particularly suitable for small quantity order.
Feature
*label printing
*UV coating
*laminating
*die cutting
*discharge within one operation.
*Low use expense, easy operation.
It is widely used for offset label, polyester fiber thin film trademark belt and laser anti-fake label.
Specification
|
Model |
Die cutting s peed |
Orientation accuracy |
Max. Web width |
Max. Die cutting width |
Max. Die cutting length |
Voltage/ power |
Size |
Weight |
|
DP-320B |
20-180P/Min |
+/_0.1MM |
320MM |
300MM |
290MM |
220V/3.5KW |
2700*950 *1400MM |
2200KG |
Functional characteristics:
This machine is of platen pressing structure, computer servo system sheet drawing, and the two edges and
vertical sides of the materials are tracked and located by the photoelectric eye.
Press trip automatic adjusted by screen , regulation accuracy is +-0.1002, make moulding-adjustment more convenient
Feeding-waste draining-slitting or rolling, all of them are completed by the computer control by one turn.
Scope applicable:

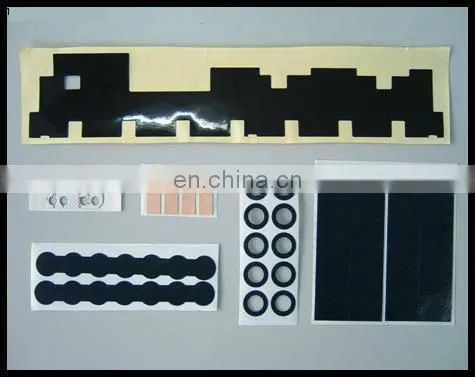

The die cutting of sheet self-adhesive trademark, terylene film trademark, and the radium anti-fake trademark.
This machine is the optimal assembled equipment for full cycle high-speed web-fed trademark printing machine,
flexible edition printing machine, continuous screen printing machine, gravure printing machine and
anti-fake trademark swaging hammer, and also the optimal machine model of a variety of trademark printing plants.
It is also applicable to the die cutting and forming of the electronic industry, and tape goods production industry
