Die Cutter Machine/ Flatbed Kiss Cut Sticker Label Die Cutting Machine
Function And Characteristic

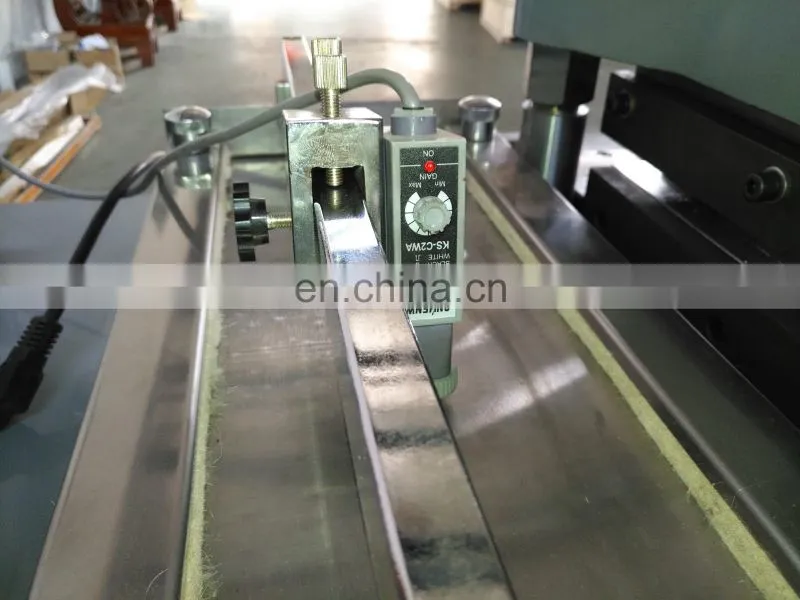

This machine is of platen pressing structure, computer servo system sheet drawing, and the two edges and vertical sides of the materials are tracked and located by the photo electric eye. Feeding-filming die cutting-waste draining-slitting roll, all of them are completed by the computer control by one turn
Scope Of Application
The die cutting of sheet self-adhesive trademark, terylene film trademark, and the radium anti-fake trademark. this machine is the optimal assembled equipment for full cycle high-speed web trademark printing machine, flexible edition printing machine, continuous screen printing machine, gravure printing machine nad anti-fake trademark swaging hammer, and also the optical machine model of a variety of trademark printing plants. It is also applicable to the die cutting and forming of the electronic industry, and tape goods production industry.
Work Progress
Unwinding --- air suction --- die cutting (kiss cut ) --- waste scrap rewind --- roll rewind or sheet cut
Customer selectivity
1. Laminting function
2. Hot Foil Stamping
3. Add the conveyor belt
4. Kiss cut or full cut for die cutting
5. Punching Function
Main parameters
| Model | MQ-320A |
| Max feeding width | 320mm |
| Cutting area | 300*300mm |
| Cutting speed | 180T/min |
| Precision | ±0.10mm |
| Voltage | 380v |
| Weight | 1500kg |
| Main power | 2.2kw |
| Total power | 4kw |
