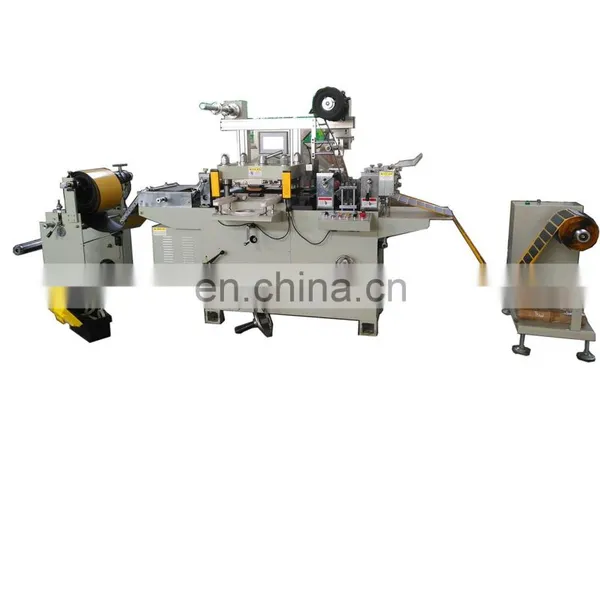

White Magnetic Labels Die Cutting Machine ( Die Cutter)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Iml Label Die Cutting MachineNegotiableMOQ: 1 -
Automatic Punching Machine Mechanical for Die Cutting Function 12 Months 320-450mm 650x600mm Motor,plc Provided 2515x1020x1810 ?NegotiableMOQ: 1
-
High Speed Sticker Half Cut Printed Label Hot Stamping Flatbed Die Cutting MachineNegotiableMOQ: 1
-
High Precise Kiss Cutter Label Die Cutting MachineNegotiableMOQ: 1
-
High Accuracy Flatbed Paper Automatic Die Cutting MachineNegotiableMOQ: 1 Set

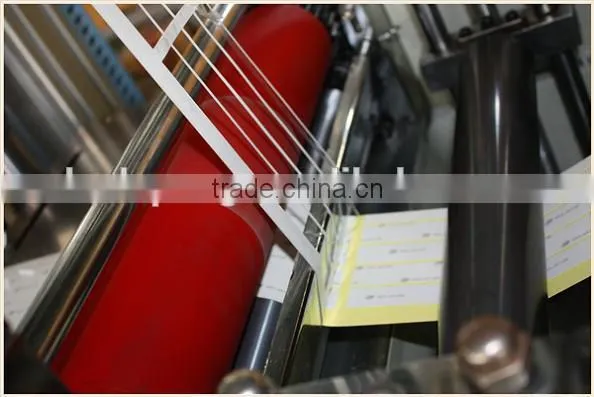

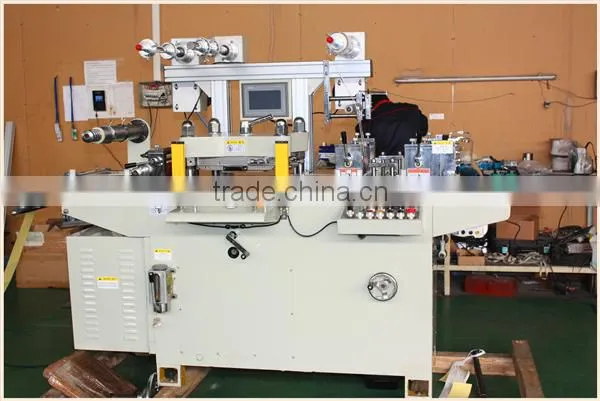

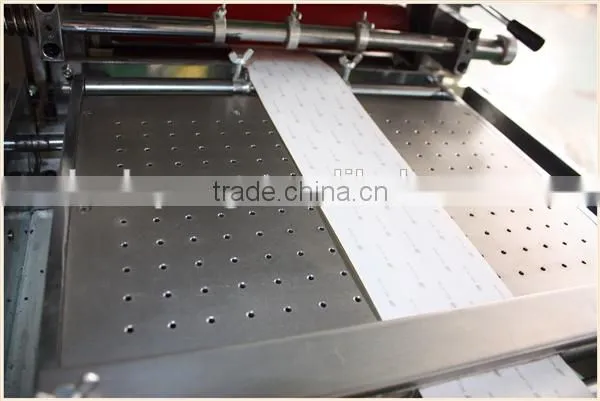

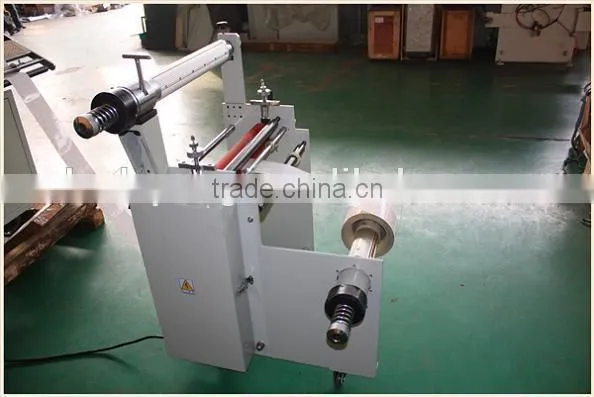

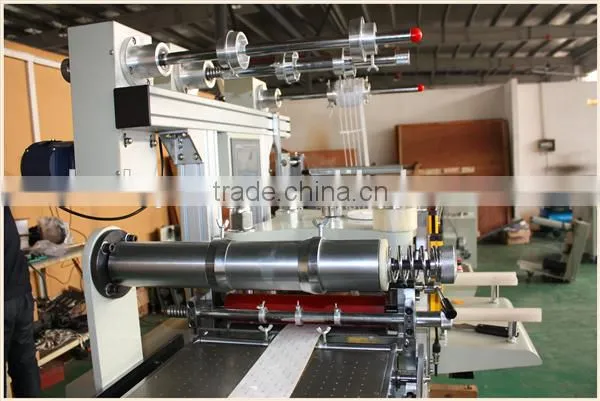

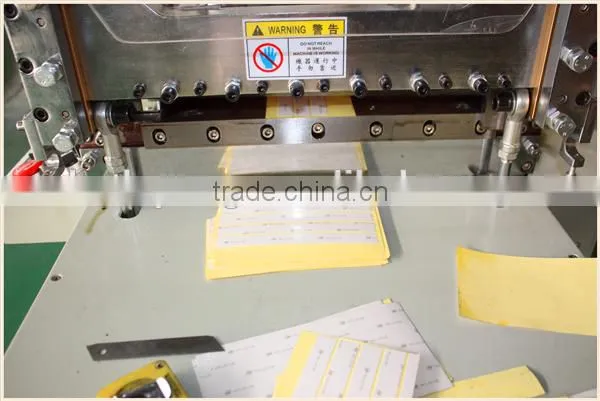

White Magnetic Labels die cutting machine ( die cutter)
The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the mahcine during the operation,
thus prolonging the life span of the machine, enhacing the utilization ratio of the machine.
"Press itinerary and pull the material length are automatically adjusted by the screen, make moulding-adjustment more convenient
"
Scope applicable:
The product is developed aiming at the die cutting and forming of various insulating materials such as PVC, film, Mylar,
copper foil, aluminum foil, foam, etc. in the electronic industry.
| Model | DP-320BII | MQ-420BII |
| Max Feeding Width (mm) | 320 | 420 |
| Cutting Area (mm) | 300*300 | 400*400 |
| Cutting Speed (T/M) | 30-170 | 30-170 |
| Position Accuracy (mm) | ±0.10 | ±0.10 |
| Power of Main Engine ( kw ) | 2.2 | 3 |
| Size ( mm ) | 2300*1250*1500 | 2550*1450*1650 |
| Voltage (V ) | 220 | 380 |
