650FQ Automatic Foam Laminating and Slitting Rewinding Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

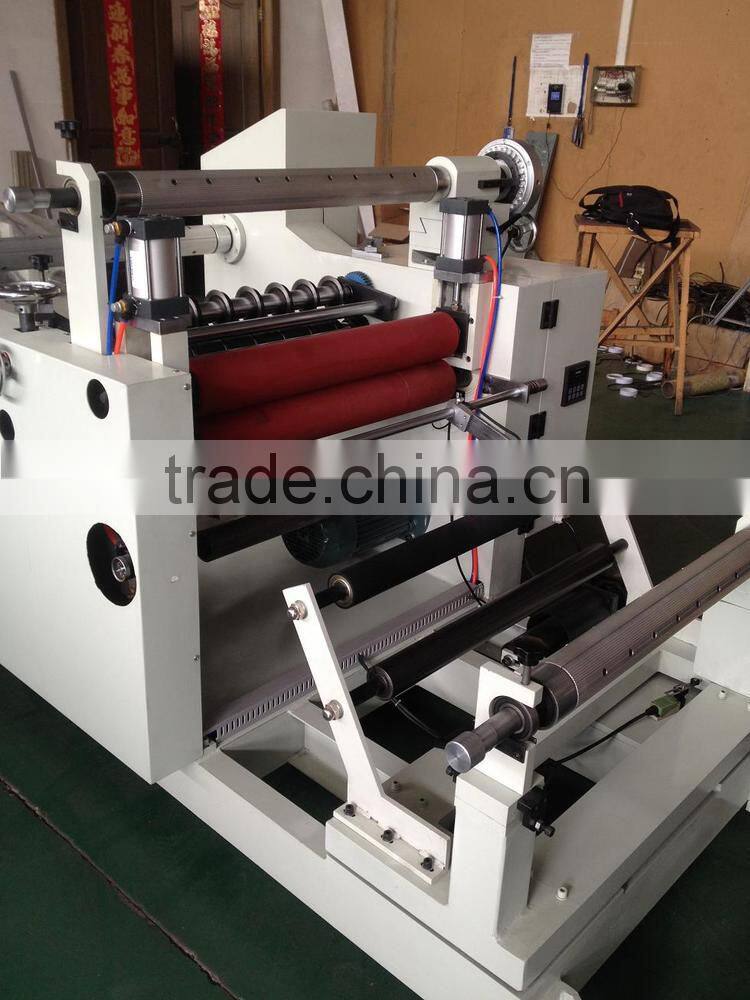

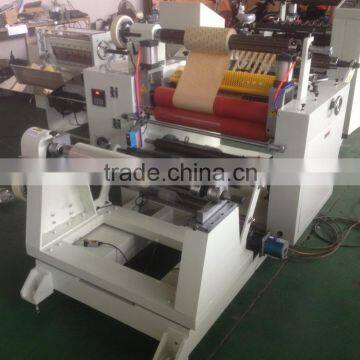

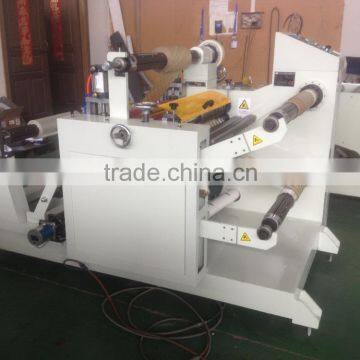

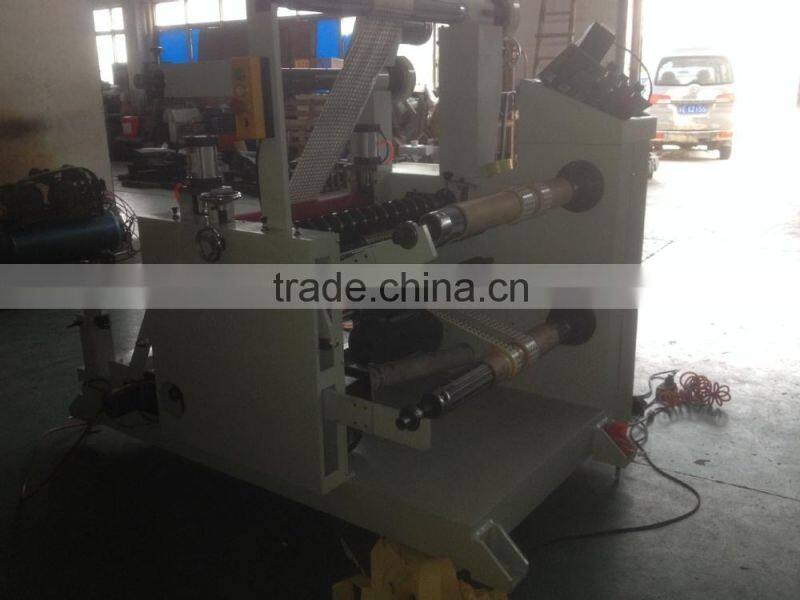

650FQ Automatic Foam Laminating and Slitting rewinding Machine

Product Details

650mm protector film slicer

Features:

1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 10years

Charatertistics and Functions:

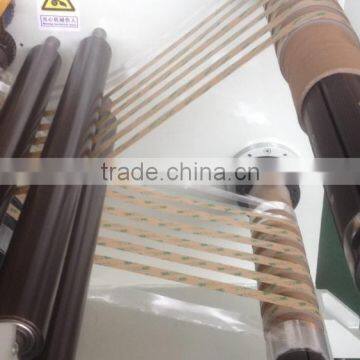

1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.

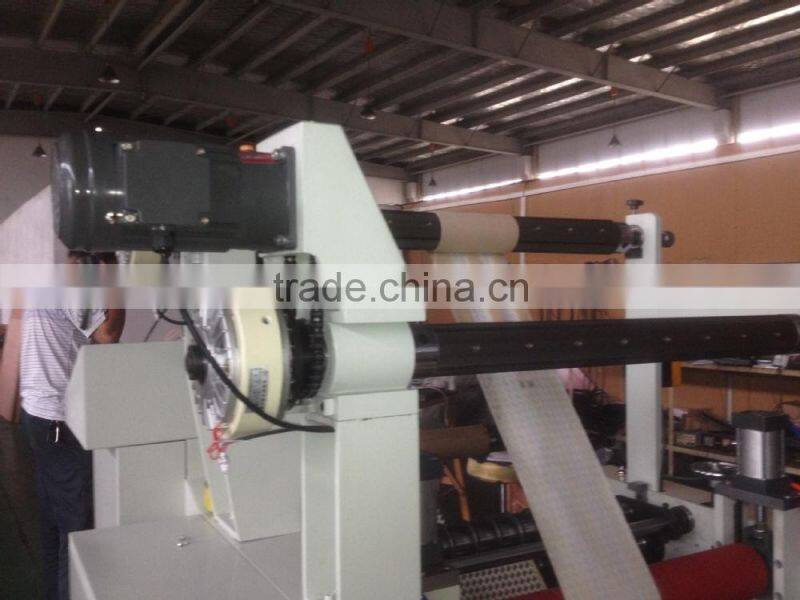

2. Imported magnetic powder clutch is adopted to control the tension.

3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.

4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose:

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

After-service:

1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.

Model	650FQ Automatic Foam Laminating and Slitting rewinding Machine
Max Feeding Width	650mm
Main Engineer Power	2.2kw
Speed	80m/min
Size	2400x1700x1300mm
Weight	1000kg
Rewinding Diameter	600mm
Winding Diameter	450mm
Precision	± 0.1mm
Power	220V 50HZ

we have standard machine as below :

and non-standard is with one more rewinder

Basic Info.

Model NO.:DP-650FQ

Type:PU Foam/ EVA Foam Slitting Rewinding Machine

Work Method:Round Knife Cutting

Main Engineer Power:4kw

Speed:80m/Min

Size:2400x1700x1300mm

Weight:1000kg

Unwinding Diameter:600mm

Winding Diameter:450mm

Precision:0.1mm

Power:380V 50Hz

Export Package:Wooden Case

Export Markets:Global

Additional Info.

Trademark:DAPENG

Packing:Wooden Case

Standard:650mm

Origin:Kunshan, China

HS Code:84411000

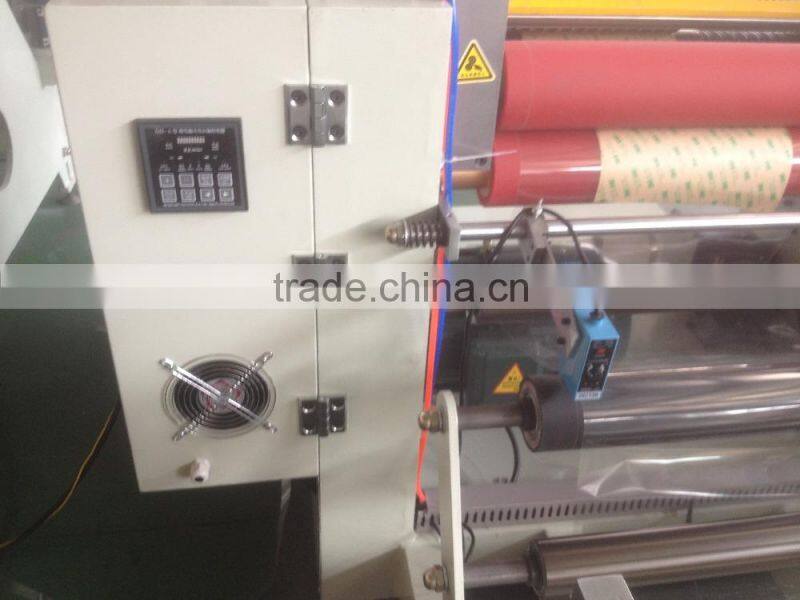

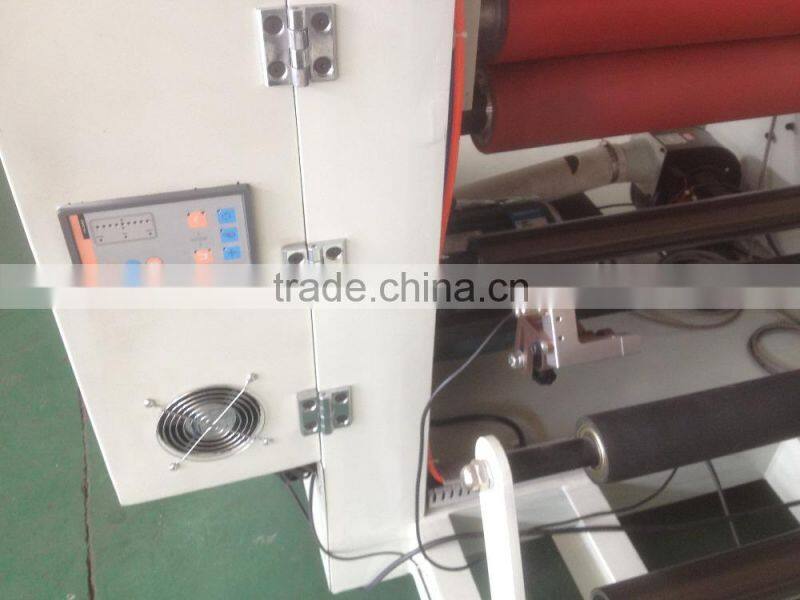

Photoelectric guiding system :

optional at Ultrasonic correction

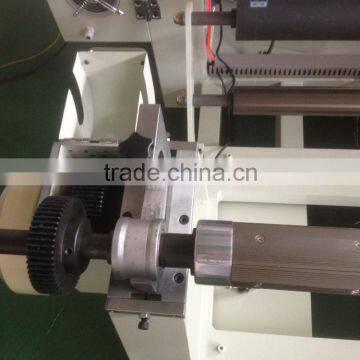

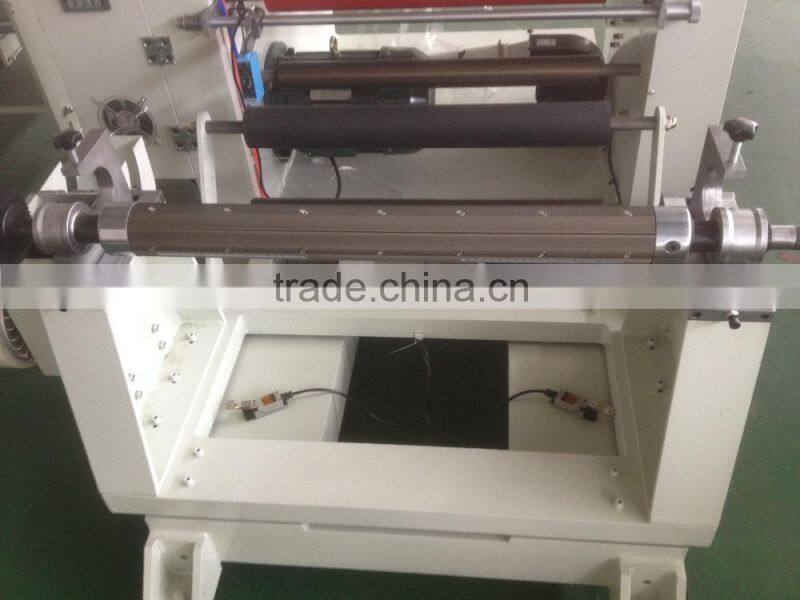

Standard 3 inch unwinding rewinding shaft :

Non-standard customized 1.5inch steel shaft
