Adhesive Stick Label Paper Roll Slitting Rewinding Rewinder Machine With Counter and Tension Controller
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Oxford Fabric Slitter Roll To Roll Label Rewinder Machine Nonwoven PVC Flim Meltblown Paper Roll Rewinding Machine
-
Paper Converting Equipment Paper Straw Production Line Slitting Rewinding Machine Craft Paper Slitter Rewinder
-
Leather Paper Embossing Machine
-
Medical Protective Cloth Non Woven PP Plastic Making Machine Non Woven Slitting Rewinding Machine
-
Paper Straw Making Kraft Food Paper Cutting Slitting and Rewinding Machine
-
Well Installed in Customer Plant Kraft Paper Slitting Rewinding Machine(slitting Rewinder)
Product Description
silicon tape adhesive tape laminating machine(slitting rewinder)

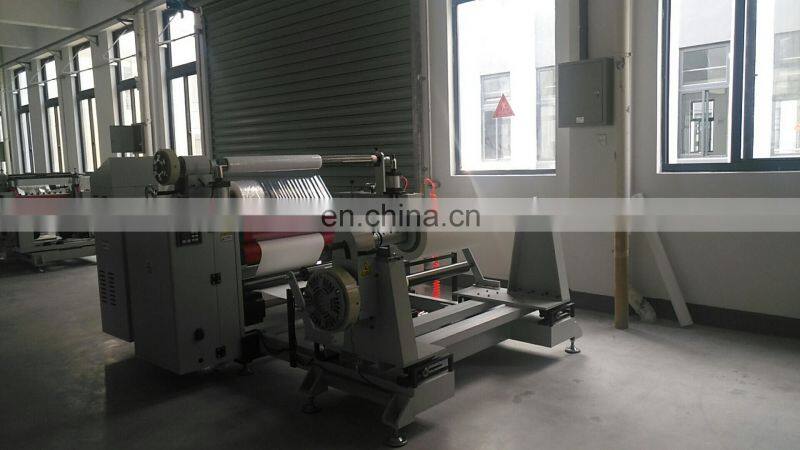

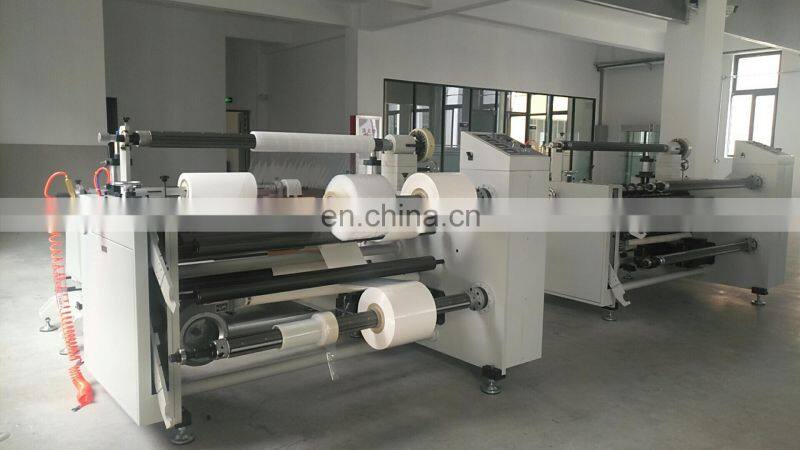

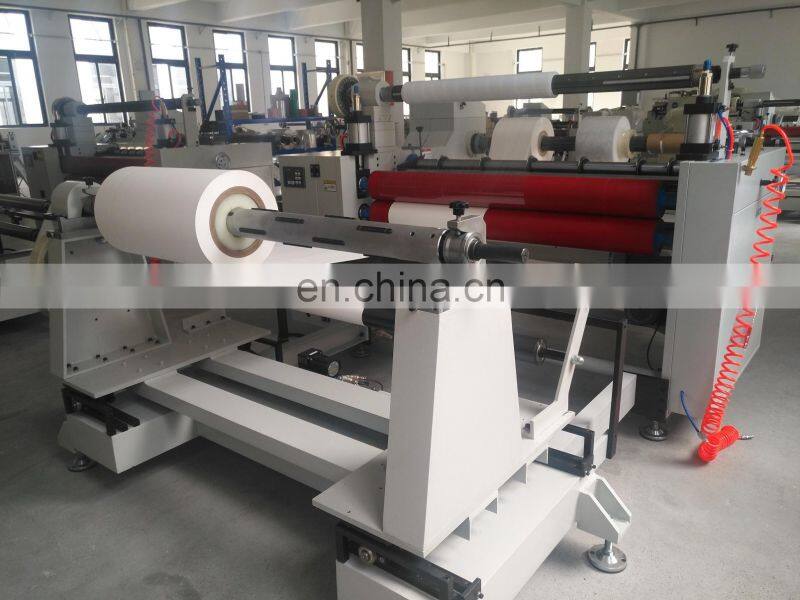

Adhesive Stick Label Paper Roll Slitting Rewinding Rewinder Machine With Counter and Tension Controller
Product Paramenters

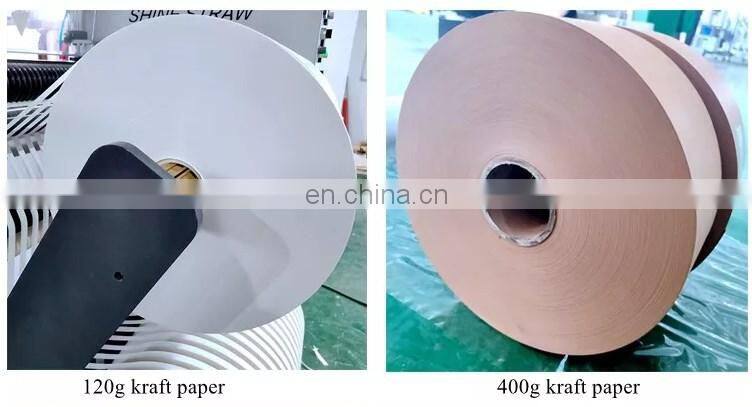

Final Product
slitting rewinder
Main Features
1. Two winding shafts,more efficency;
2. Air expanding shaft,clamp more tighten,no slippage;
3. Magnetic powder control tension.Tension controllable and output torque balancing by magnetic powder brake actuator;
4. High speed waste material blowing fan;
5. Full rotary slitting blade can be adjusted.

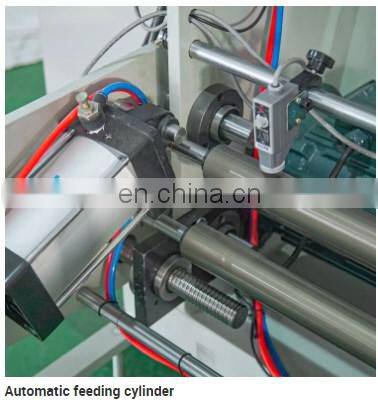

6. Fast closing to knife device,locking upper knife shaft.Air cylinder control the pulling roller up and down.
7. Frequency motor to control speed.
8.3 inch inflatable unwind shaft and 2 3 inch inflatable rewind shaft.
9.It has the functions of easy operation,high precision,good stability and low noise.
2. Air expanding shaft,clamp more tighten,no slippage;
3. Magnetic powder control tension.Tension controllable and output torque balancing by magnetic powder brake actuator;
4. High speed waste material blowing fan;
5. Full rotary slitting blade can be adjusted.
6. Fast closing to knife device,locking upper knife shaft.Air cylinder control the pulling roller up and down.
7. Frequency motor to control speed.
8.3 inch inflatable unwind shaft and 2 3 inch inflatable rewind shaft.
9.It has the functions of easy operation,high precision,good stability and low noise.

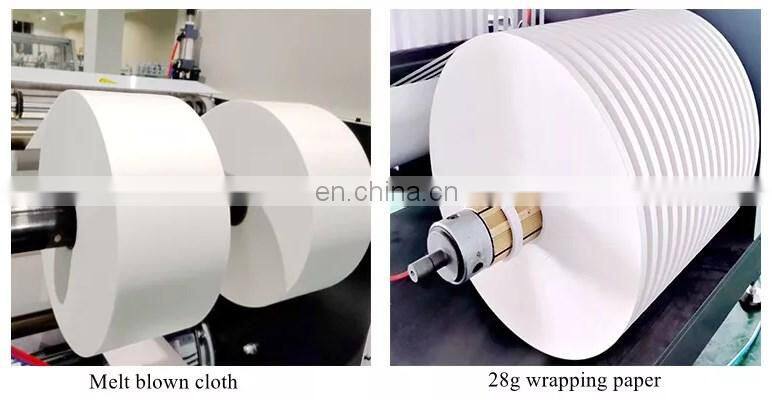

paper slitter machine is suitable for cutting big rolling packaging materials such as paper,paper board,kraft paper,culture paper,printing paper,laser paper,aluminum foil paper,paper,label,sticker,copper foil,aluminum foil,film(OPP,PE,PVC,PP,PC),Non-woven cloth,melt-blown fabric.etc.Widely used in paper industry and printing industry.
Stable Performance Paper Roll Slitting Machine with Belt Pulley The slitter is the corollary equipment of automatic die cutting machine,which is suitable for slitting narrow paper web.It has automatic meter count and number count,quantity and length preset and decelerate till stopping functions.Auto Magnetic powder control for unwinding and rewinding.
Photoelectric eyes rectification for unwinding,synchronous belt to conveyor in internal structure.Distinctive machine design will improve working efficiency and reduce operation labor intensity,which is the optimal choice for narrow material slitting.
The whole machine structure is compact,fast and with high efficiency.Operation is easy and steadily
Photoelectric eyes rectification for unwinding,synchronous belt to conveyor in internal structure.Distinctive machine design will improve working efficiency and reduce operation labor intensity,which is the optimal choice for narrow material slitting.
The whole machine structure is compact,fast and with high efficiency.Operation is easy and steadily
Control Panel:
You can set slitting speed,running length,unwinding and rewinding tension on it.It is very easy for worker to operate the
machine.

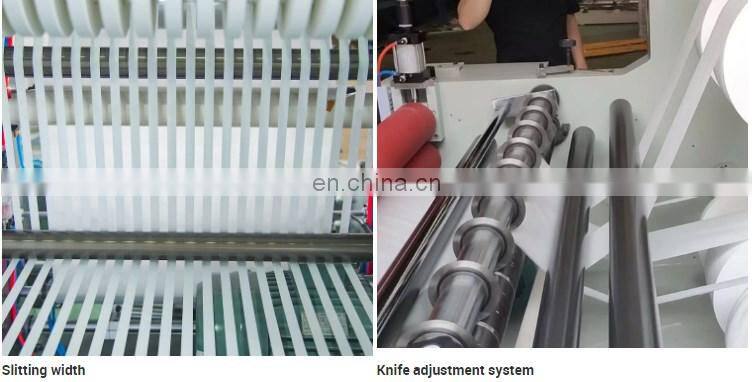

Slitting Blades:
This machine is standard equipped with full sets of slitting blades,min sltting width is 9mm.if you want to slit smaller width,you can customize self-lock knives.It's easy to adjust the slitting width based on your products.
Edge/line Position Controller:
These photoelectric sensors are used to guide the rough material to make sure the slitting
rewinding effect is good.The photo sensors concentrate on the edge of the material.You can choose between a single sensor and two sensors.
You can set slitting speed,running length,unwinding and rewinding tension on it.It is very easy for worker to operate the
machine.
Slitting Blades:
This machine is standard equipped with full sets of slitting blades,min sltting width is 9mm.if you want to slit smaller width,you can customize self-lock knives.It's easy to adjust the slitting width based on your products.
Edge/line Position Controller:
These photoelectric sensors are used to guide the rough material to make sure the slitting
rewinding effect is good.The photo sensors concentrate on the edge of the material.You can choose between a single sensor and two sensors.
