Adhesive Foam be Laminated and Slitted by Laminating Slitting Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery

Features:

This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .

Purpose:

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Main Technical Parameter:

data as below is for reference only , you can customize to other data if required

Model	DP-650FQ
Max Feeding Width	650mm
Main Engineer Power	2.2kw
Speed	80m/min
Size	2400x1700x1300mm
Weight	1000kg
Rewinding Diameter	600mm
Winding Diameter	450mm
Precision	±0.1mm
Power	220V 50HZ

waste rewinding motor part

this item can add the rewinding and unwinding air-shaft , add motor on it can running forward and reverse

Touch screen optional

when you need constant tension control ,

we can use PLC and Touch Screen to control the operation if required

Anti-sticking guiding roller optional

when you want to slitting some with Low viscosity adhesive rubber tape / paper tape etc , can choose use this kind guiding roller

electric box of slitting machine

the slitting machine can choose PLC control

the PLC we use is Mitsubishi brand

with tension control board

with frequency control

cutting blade part have protective cover

to keep operation safety , when you setted well the cutting blade , please cover the protective cover

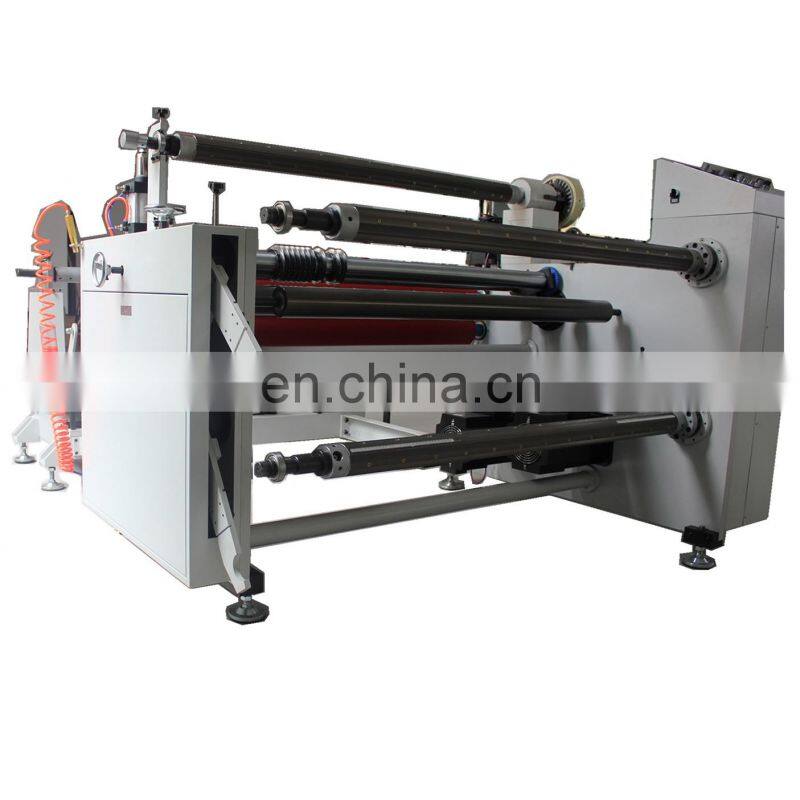

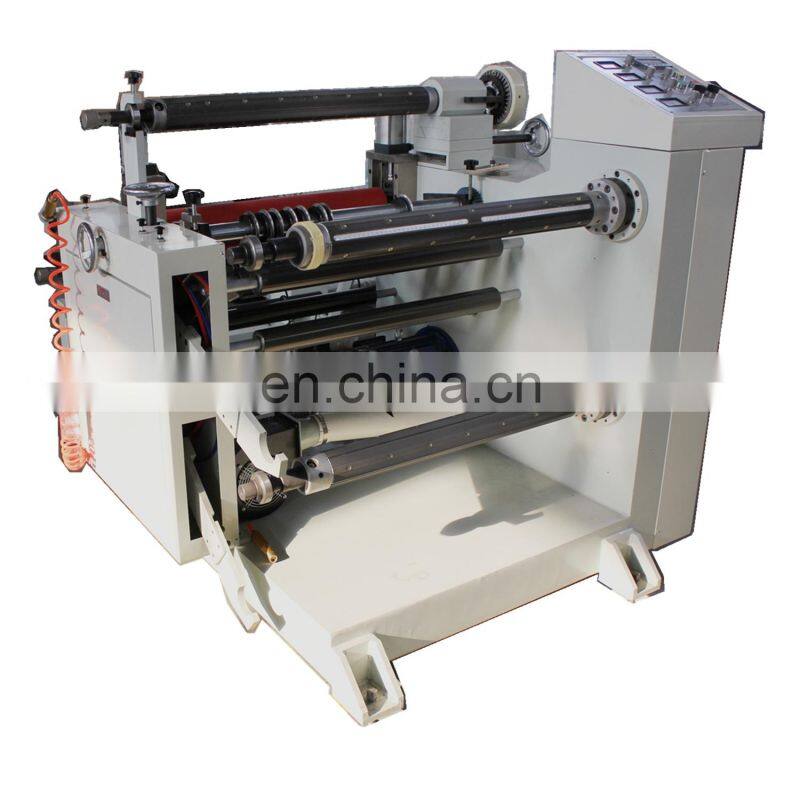

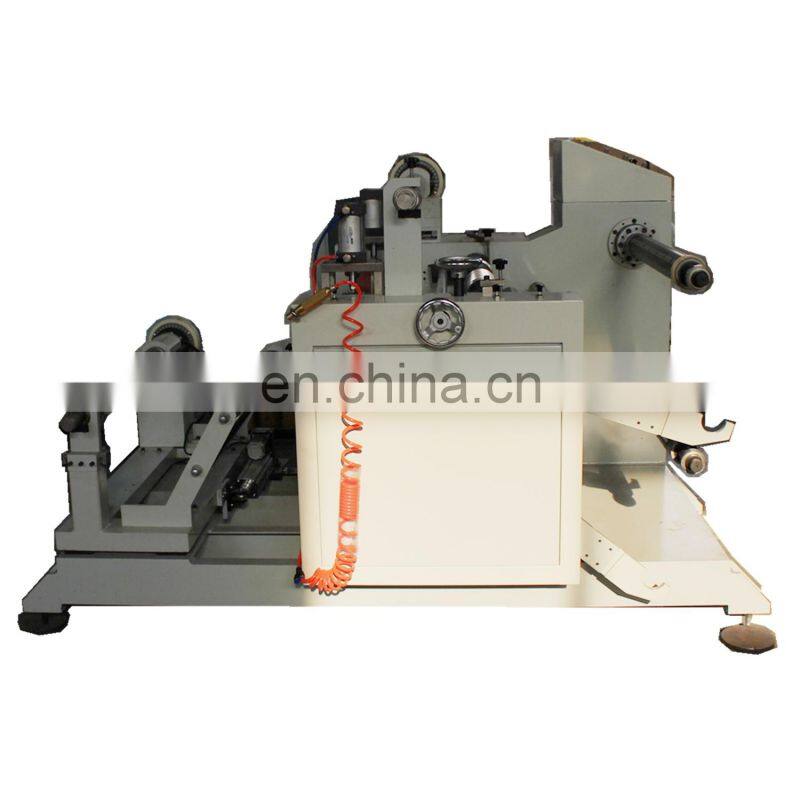

DIFFERENT ANGLE OF MACHINE

BELOW to show you our standard machine different angle view

Charatertistics and Functions

1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.

3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :

1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Features for

Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years

Unwinding part description

3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too

Magnetic powder brake 100N also can be 150 or 200 that as required

EPC include the controller , driver and sensor

laminating and pulling material part

the up part unwinding is optional to use or not

when just one material slitting , then it not use

and when two material unwinding, it is function of cold laminating

Slitting part and waste trimming part

the blade size upwards is standard of 1300mm machine size , other larger diameter also optional

and down part can be Nylon roller optional when need slitting EVA sponge mterials

slitting blade 8 sets is standard , you can buy more when required

and minimum slitting width 10mm is optional

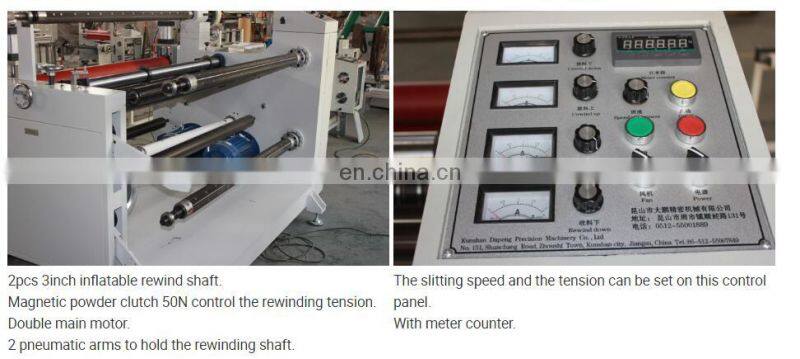

Rewinding part and the operation panel

the rewinding air-shaft diameter 1 inch and 2 inch are optional

and slip shaft optional
