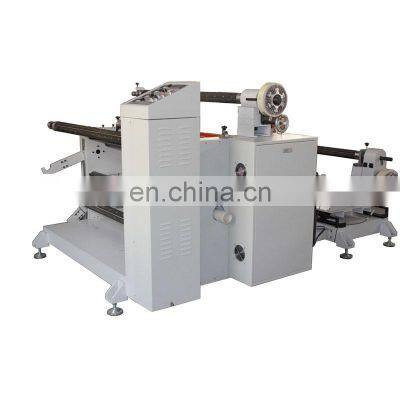

DP-1300 Paper Film Roll To Roll Slitting and Rewinding Machine photo-3

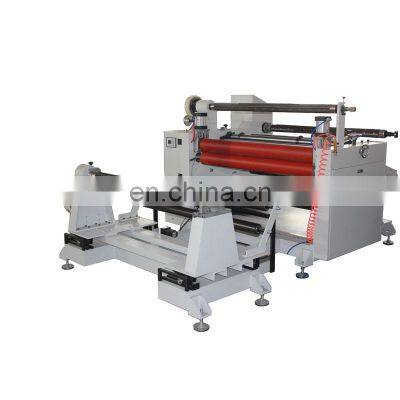

DP-1300 Paper Film Roll To Roll Slitting and Rewinding Machine photo-4
DP-1300 Paper Film Roll To Roll Slitting and Rewinding Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Overview

PP PE PC PET PVC Plastic Film Foam Paper Label Sticker Roll to Roll Slitting and Rewinding Machine with Laminating Function

This machine can slit flexible materials,such as plastic,paper,foam,film.label,sticker.etc.
With EPC system, and the magnetic powder controls the unwinding and rewinding tension.
Main machine with frequency conversion speed.
The slitting width can be adjusted as requested.
Precise slitting,fast slitting speed,easy operation and maintenance.
PRODUCT SPECIFICATIONS
Model
DP-650
DP-1300
DP-1600
Max Feeding Width
650mm
1300mm
1600mm
Power
2.2KW
6KW
6KW
Slitting Speed
20--120m/min
20--120m/min
20--120m/min
Max. Unwinding Diameter
600mm
600mm
800mm
Max. Rewinding Diameter
450mm
450mm
450mm
Slitting Precision
± 0.1mm
± 0.1mm
± 0.1mm
Minimum slitting width
25mm
25mm
25mm
Voltage
380V 50HZ
380V 50HZ
380V 50HZ
FEATURES AT A GLANCE
1pcs 3inch inflatable unwind shaft.
Magnetic powder brake 100N controls the unwinding tension.

EPC Web Guiding Controller System to keep the material in line.
Up 3inch inflatable unwind shaft for laminating function.
Magnetic powder brake 50N controls the unwinding tension.
Laminating and pulling roller:
Upper and under PU rubber roller with Diameter 135mm.
2 cylinders adjust the rubber roller up and down.

Aluminum guide roller with hard anode oxidation.
Upper 65mm knife shaft with slitter Dia.110*75*1
Under 65mm knife shaft with slitter Dia.90*65*10
Manual fine-tuning lock device.
8 rotary slitting blade can be adjustable,the minimum slitting width is 25mm.
Air blower for trimming.
2pcs 3inch inflatable rewind shaft.
Magnetic powder clutch 50N control the rewinding tension.
Double main motor.
2 pneumatic arms to hold the rewinding shaft.
The slitting speed and the tension can be set on this control panel.
With meter counter.
