Paper Straw Making Kraft Food Paper Cutting Slitting and Rewinding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Well Installed in Customer Plant Kraft Paper Slitting Rewinding Machine(slitting Rewinder)NegotiableMOQ: 1 -
Adhesive Foam be Laminated and Slitted by Laminating Slitting MachineNegotiableMOQ: 1
-
High Precision Paper and Aluminium/copper Foil Slitter RewinderNegotiableMOQ: 1
-
DP-1300 Paper Film Roll To Roll Slitting and Rewinding MachineNegotiableMOQ: 1
-
Paper Slitter Rewinder Foam Slitting Rewinding MachineNegotiableMOQ: 1
Automatic insulation paper slitting machine
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.
Main Technical Parameter:
data as below is for reference only , you can customize to other data if required
Model | 1300 slitting machine | 1600 slitting machine |
Max Feeding Width ( mm ) | 1300 | 1600 |
Main Engineer Power ( KW ) | 6 | 6 |
Speed (T/M ) | 120 | 120 |
Size ( mm ) | 2400*2000*1300 | 2400*2300*1300 |
Weight (kg) | 1200 | 1500 |
Rewinding diameter ( mm ) | 800 | 800 |
Winding diameter ( mm ) | 450 | 450 |
precision ( mm ) | ±0.10 | ±0.10 |
Power | 380V 50HZ | 380V 50HZ |

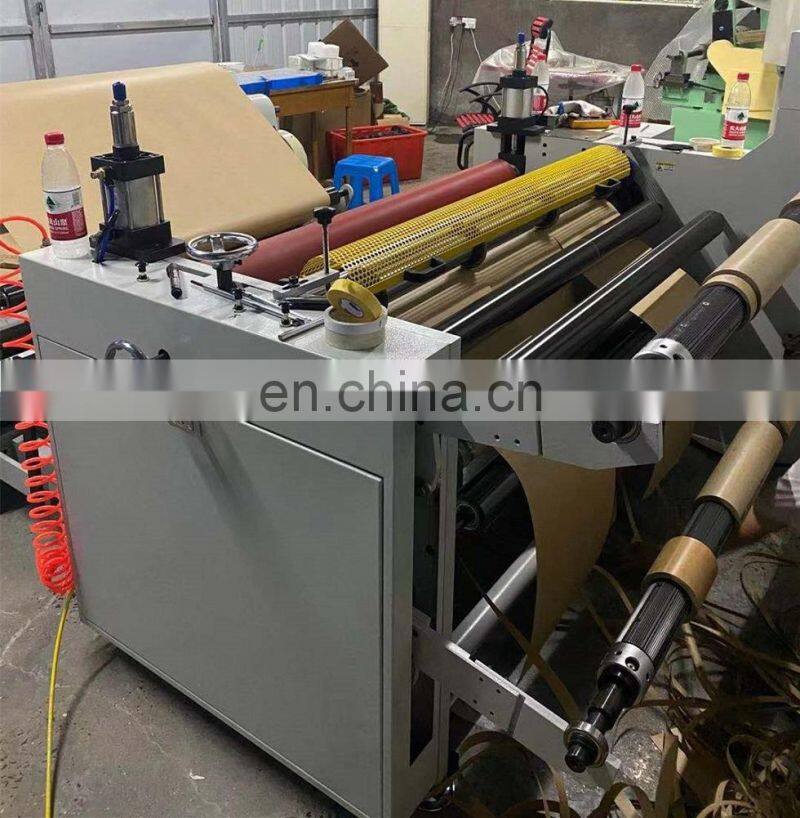

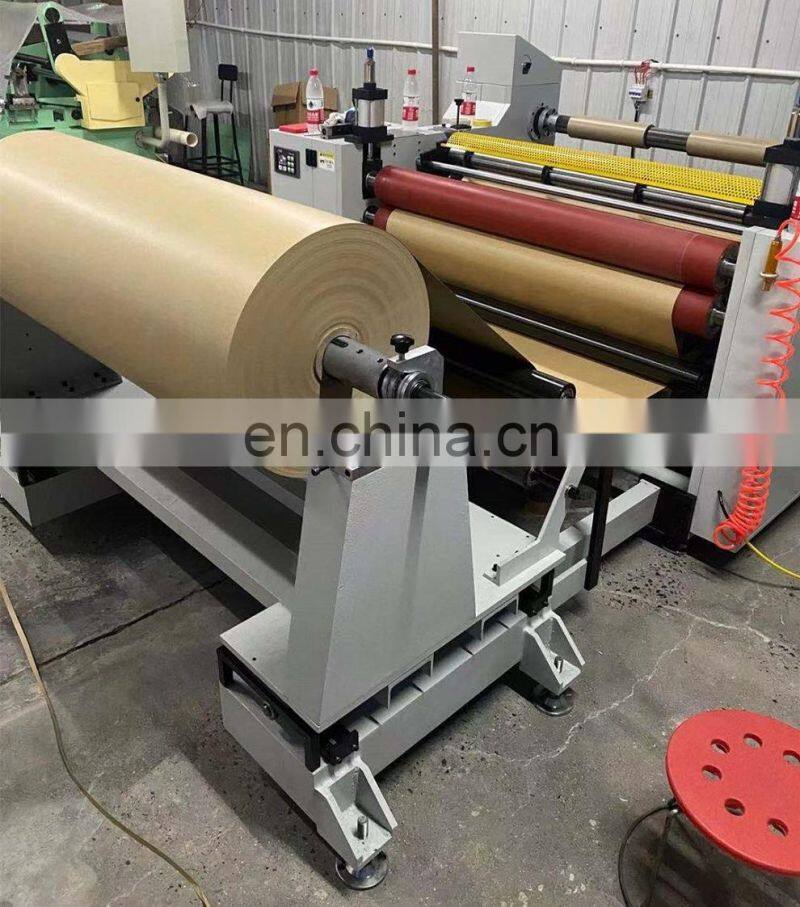

DIFFERENT ANGLE OF MACHINE
BELOW to show you our standard machine different angle view
Charatertistics and Functions
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features for
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years

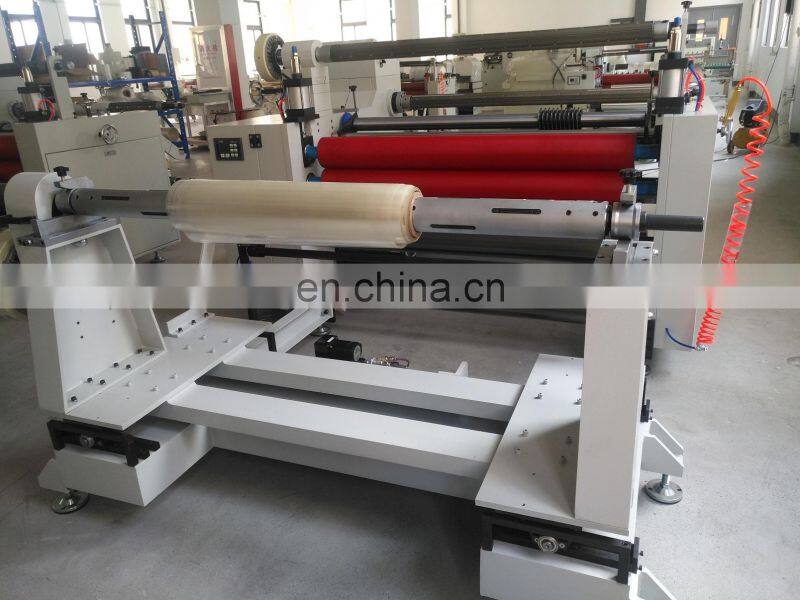

Unwinding part description
3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too
Magnetic powder brake 100N also can be 150 or 200 that as required
EPC include the controller , driver and sensor

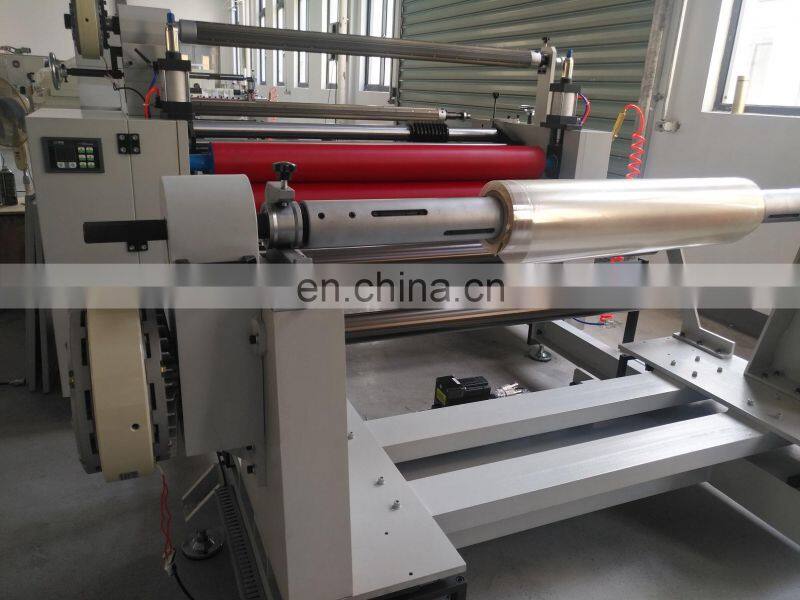

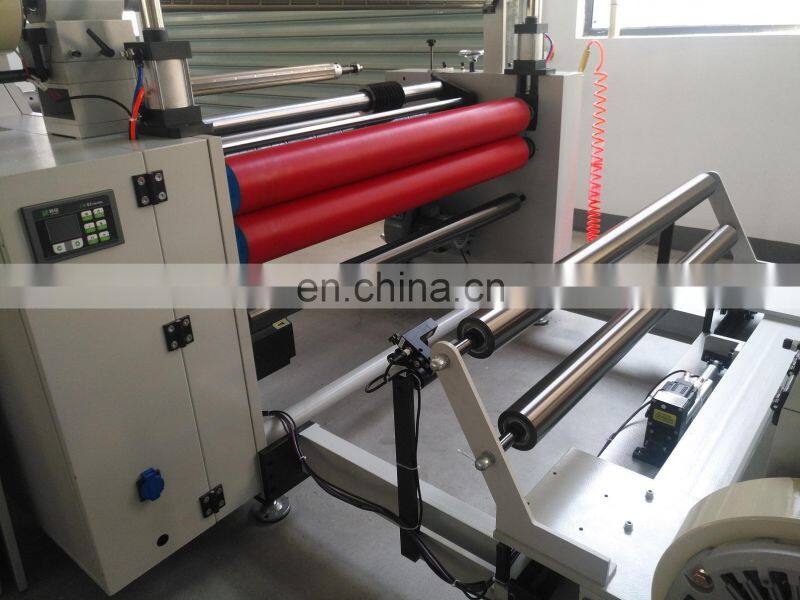

laminating and pulling material part
the up part unwinding is optional to use or not
when just one material slitting , then it not use
and when two material unwinding, it is function of cold laminating

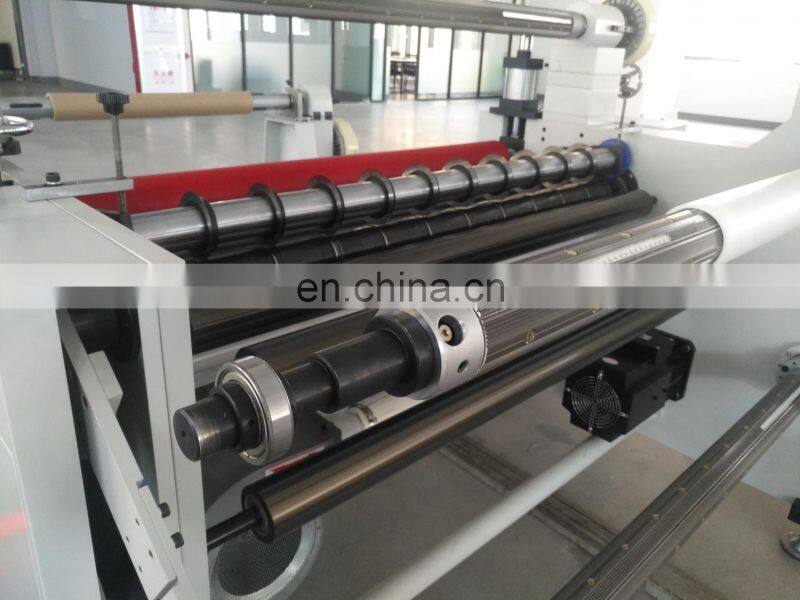

Slitting part and waste trimming part
the blade size upwards is standard of 1300mm machine size , other larger diameter also optional
and down part can be Nylon roller optional when need slitting EVA sponge mterials
slitting blade 8 sets is standard , you can buy more when required
and minimum slitting width 10mm is optional

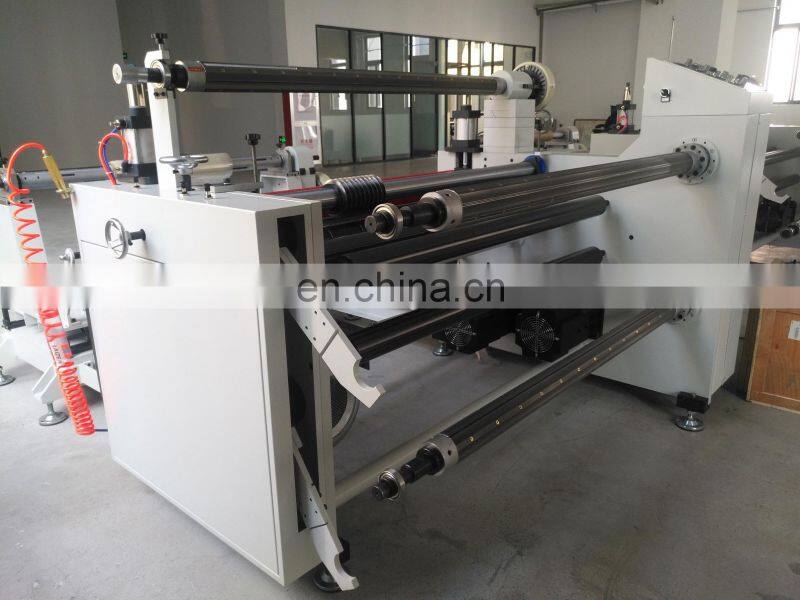

Rewinding part
2pcs 3 inch inflatable rewinding airshaft , magnetic powder clutch 50 N control the rewinding tension
double main motor
2 pneumatic arms to hold the rewinding shaft
the rewinding air-shaft diameter 1 inch and 2 inch are optionaland slip shaft optional
operation board
the slitting speed and the tension can be set on this control panel ,
with meter counter
