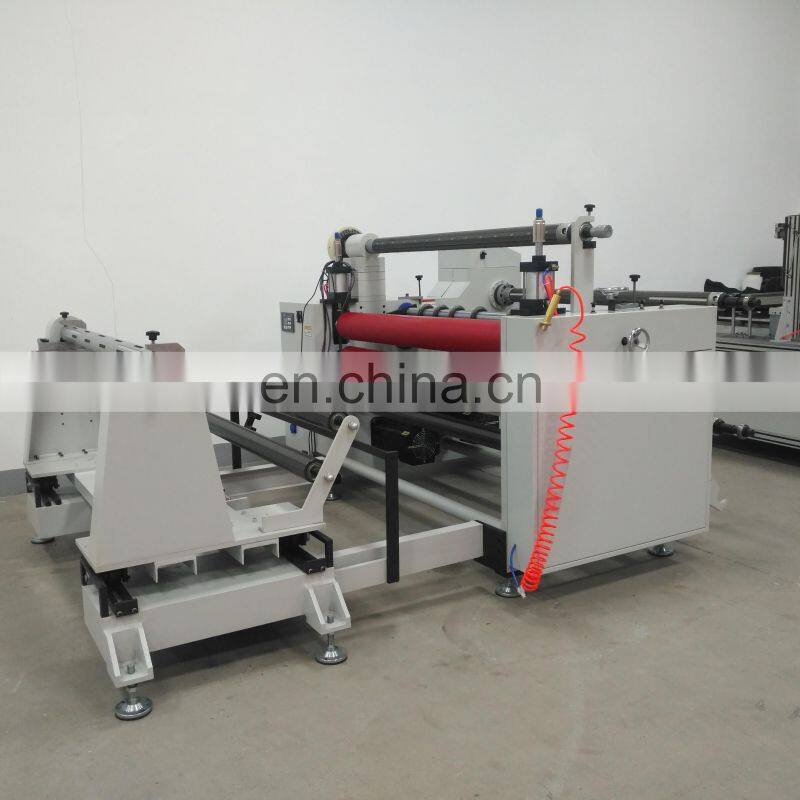

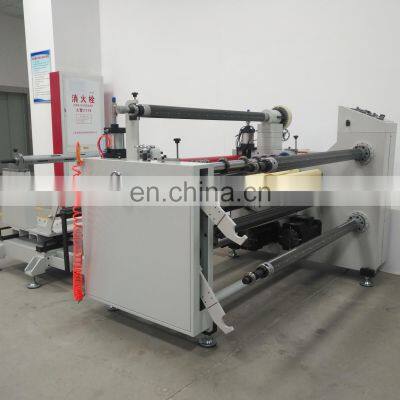

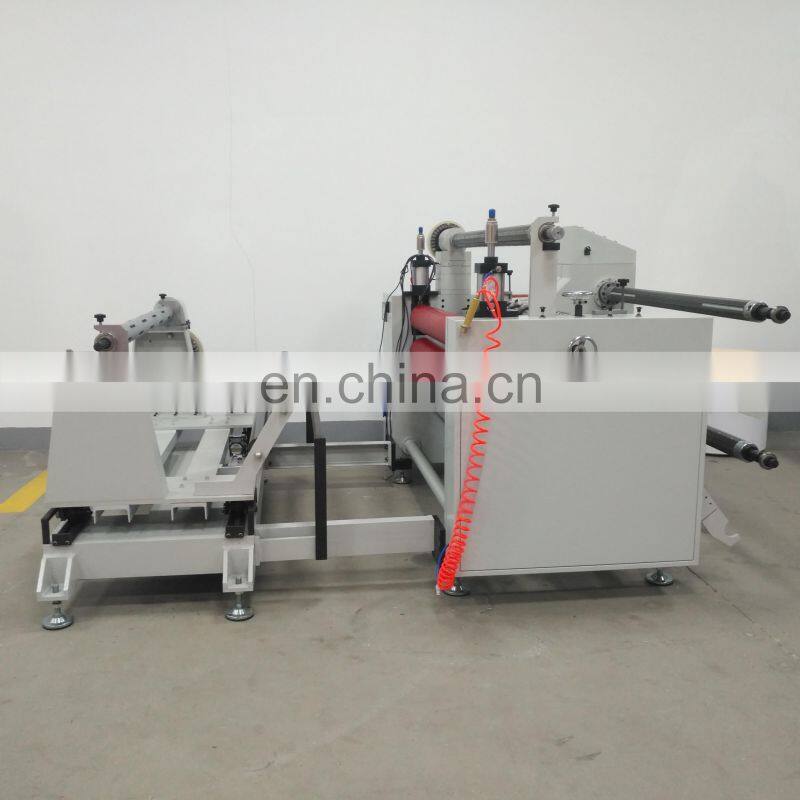

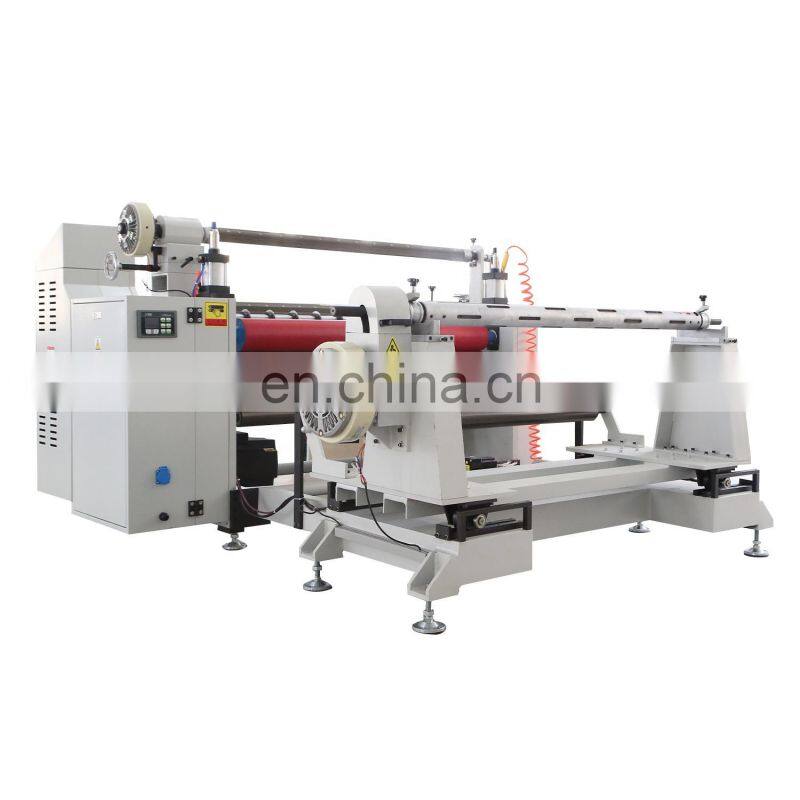

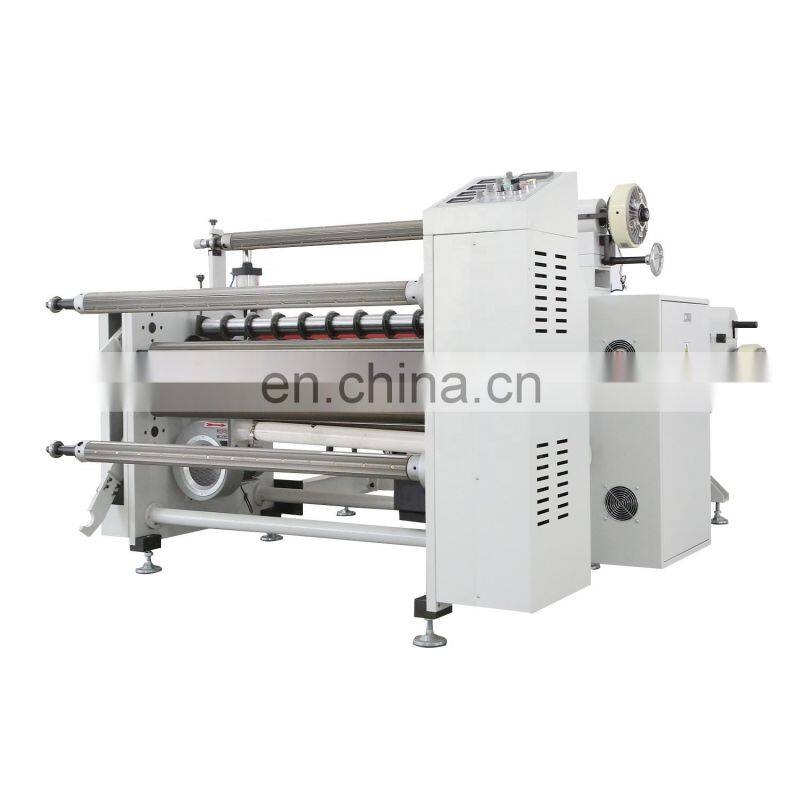

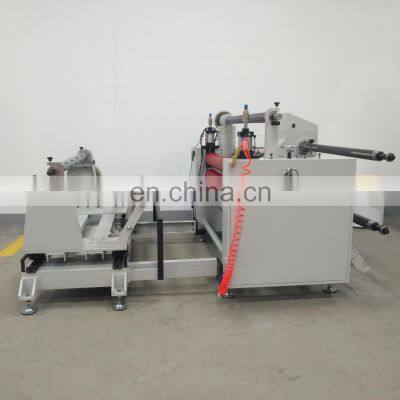

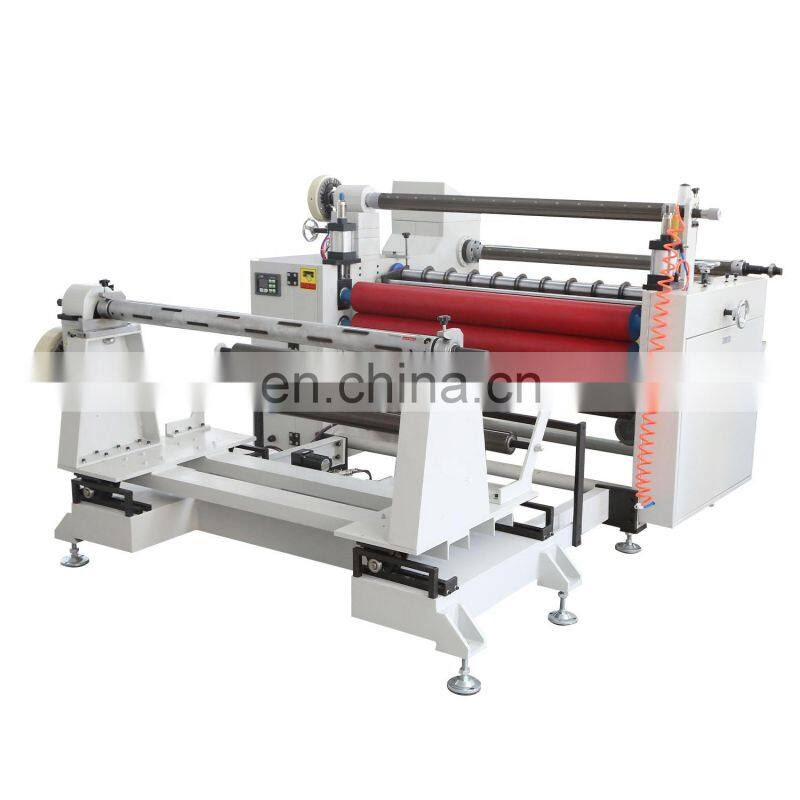

Paper Converting Equipment Paper Straw Production Line Slitting Rewinding Machine Craft Paper Slitter Rewinder

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Technique Data

Machine Speed : 180m/min
Slitting speed control in less than 120 m per minute is better
Max material width unwind : 1300mm
unwinding Diameter :1000 mm
unwinding core diameter : 3 inch
Rewinding diameter : 500mm
Slitting accuracy :±0.1mm
Voltage: 380V 50HZ
Main Motor Power :3kw
Total Power:5.5KW
Raw material Max inner hole diameter: 3”
compress air source:（0.4-0.6）Mpa(customer-owned)
Finished products Min. Width by standard slitting :15MM
Main Machine size :2400*2300*1300mm
Feeding machine size : 1950*880*780mm
Weight : 2.2T

Characteristics and Functions:

1.This machine is slitting equipment of high precision and high sensitivity,with inflatable bearing used for feeding and receiving
materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling,with fully automatic hydraulic rectification
control.
4. Automatic detection,rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
6. Clockwise and counter-clockwise rewinding system

After-service:

1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

Payment Term : 40% TT advanced .60% paid off before shipment
Delivery time : have machine in stock

Specification

item	value
Applicable Industries	Processing line
Showroom Location	paper processing line
Condition	New
Product Type	Paper Straw Making Machine
Processing Type	Paper Slitting and Rewinding Machine
Place of Origin	China
	Jiangsu
Brand Name	Dapeng
Voltage	380v
Power	6kw
Dimension(LWH)	2.22.01.5m
Weight	2400kg
Warranty	1 Year
Production Capacity	5sets per month
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2021
Warranty of core components	1 Year
Core Components	PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Name	paper processing line strawing paper cutting machine
ing width	1300mm
pulling roller	PU
air shaft	3 inch
Speed	150m/min
Usage	Paper Converting Machine

Company Profile

Kunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers. Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers. In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
