Home > Packaging & Printing > Packing Machinery > Laminating Machine > PP / Pet / Paper / Film / PVC / OPP Lamination Machine,Self Adhesive Tape Hot Melt Heating Laminating Machine

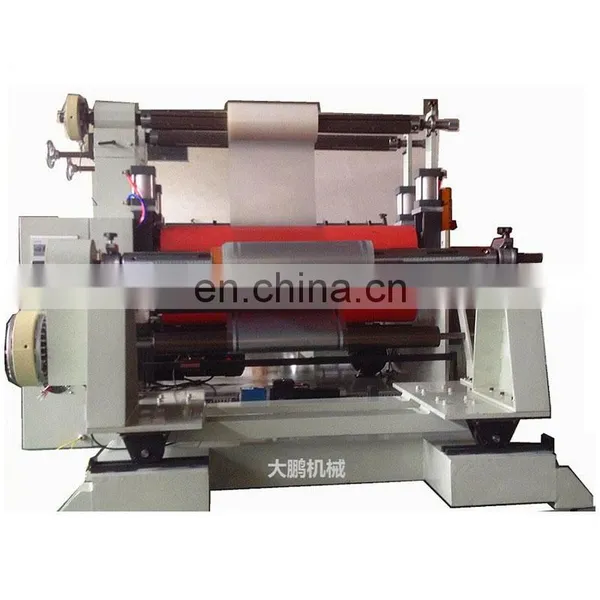

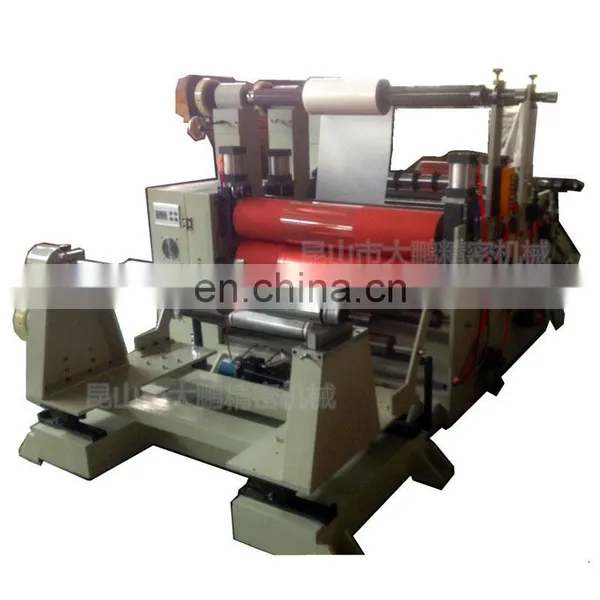

PP / Pet / Paper / Film / PVC / OPP Lamination Machine,Self Adhesive Tape Hot Melt Heating Laminating Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Heating Film Hot Melt Laminating MachineNegotiableMOQ: 1 -
Multi Layer Laminating MachineNegotiableMOQ: 1
-
PET PE PP BOPP Film Hot Roll Laminating MachineNegotiableMOQ: 1
-
PVC Plastic Film Adhesive Tape Paper Laminating MachineNegotiableMOQ: 1
-
Laminating Machine Roll to Roll Aluminum Foil 380V 50HZ Provided High-accuracy CN;JIA Dapeng Ordinary Product CENegotiableMOQ: 1
Functional characteristics:
This machine is laminating equipment of high precision and high sensitivity,
with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension.
Imported gas sensitive device is adopted to detect the rectification of rolling,
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate and fast laminating , ease of operation and maintenance, etc.
with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension.
Imported gas sensitive device is adopted to detect the rectification of rolling,
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate and fast laminating , ease of operation and maintenance, etc.
Purpose:
It is applicable for the laminating of industrial adhesive tape, cellophane tape, protective film,
copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
It is applicable for the laminating of industrial adhesive tape, cellophane tape, protective film,
copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Main technical parameters:
| model | DP-650 | DP-1300 | DP-1600 |
| max feeding width(mm) | 650 | 1300 | 1600 |
| main engineer power(kw) | 3 | 3 | 3 |
| speed(m/min) | 60 | 60 | 60 |
| size(mm) | 1400*1200*1300 | 1650*1450*1300 | 1650*1450*1300 |
| weight(kg) | 800 | 1500 | 1800 |
| feeding diameter(mm) | 600 | 600 | 800 |
| rewinding diameter(mm) | 450 | 450 | 450 |
| precision(mm) | +/_0.1 | +/_0.1 | +/-0.1 |
| power(v) | 220v50hz | 380v50hz | 380v50hz |
