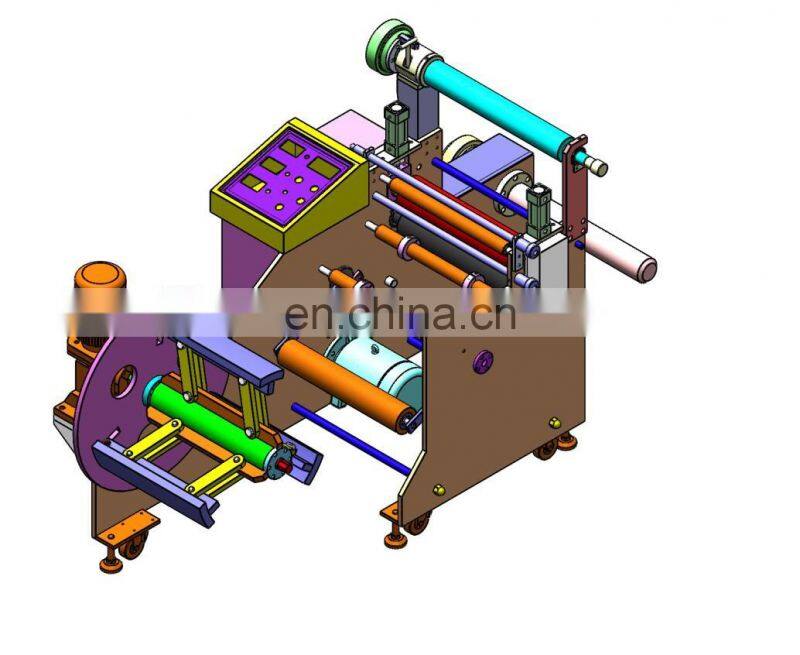

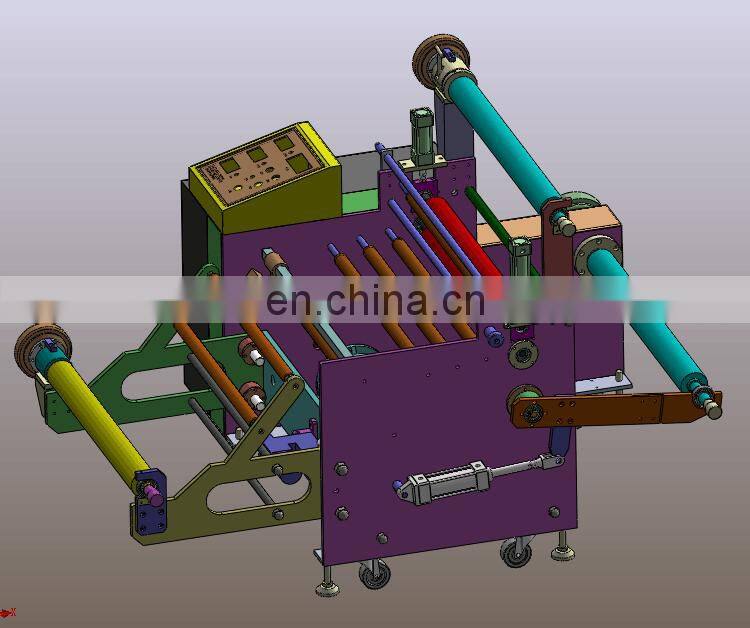

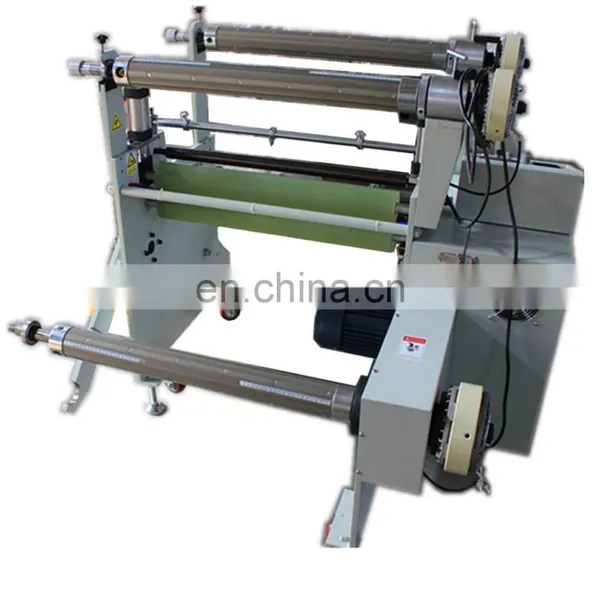

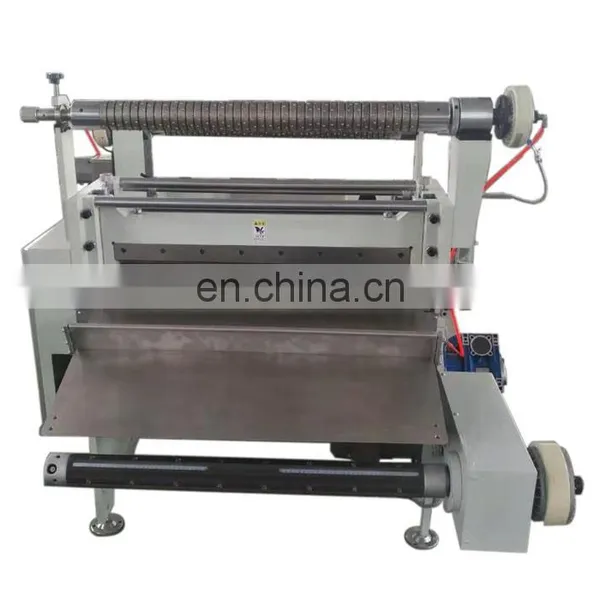

Automatic Cold Roll Unwinding Rewinding Laminating Machine
Model |
DP-650T |
Max Feeding Width |
650mm |
Main Engineer Power |
1P |
Speed |
60m/min |
Size |
1400x1200x1300mm |
Weight |
800kg |
Unwinding Diameter |
600mm |
Winding Diameter |
450mm |
Power |
220V 50HZ |
1. Max feeding width: 650mm;
2. Speed: 60m/min;
3. Material thickness: 0.05-3mm;
4. Tolerance: +/-0.2mm;
5. Precision: 0.3mm;
6. This A2 laminator is applicable to stick the narrow scope paper;
7. It automatically count meter, set length, stop and alarm, unwind;
8. High precision, high speed, easy to operate;
9. Under CE and ISO;
10. Manufacturing experience: 10 years;
11. Export experience: 5 years;
Laminating and sticking for materials with base glue and other materials.
1. Warranty period: 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering.
Functional characteristics:
Laminating machine ,is applicable to stick the narrow scope paper ,It can automatiically count ,set length ,stop and alarm ,Complex for adhesive tape such electric label industry as mobile phone ,computer and ect.
Scope applicable:
Used for conductive fabric ,hot metlt and other materials to be heated.
Model |
DP-420TH |
DP-650TH |
Max laminating width |
420 mm |
650mm |
Laminating speed |
30m/min |
30m/min |
Laminating temperature |
60~130°C |
60~130°C |
Total power |
5kw |
7kw |
Weight |
380kgs |
450kgs |
Packing size |
1680*1300*1300mm |
1680*1650*1300mm |
|

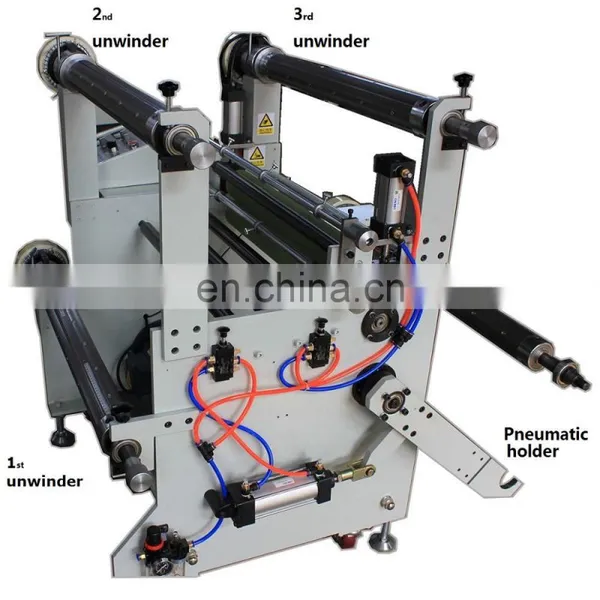

The machine uses air expanded roller for unwinding and rewinding, applies manual hydraulic device. The machine’s pressure is big, temperature rising is fast, laminating speed is high. | ||
