Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Different Max Working Width Auto Type Hot and Cold Laminating Machine

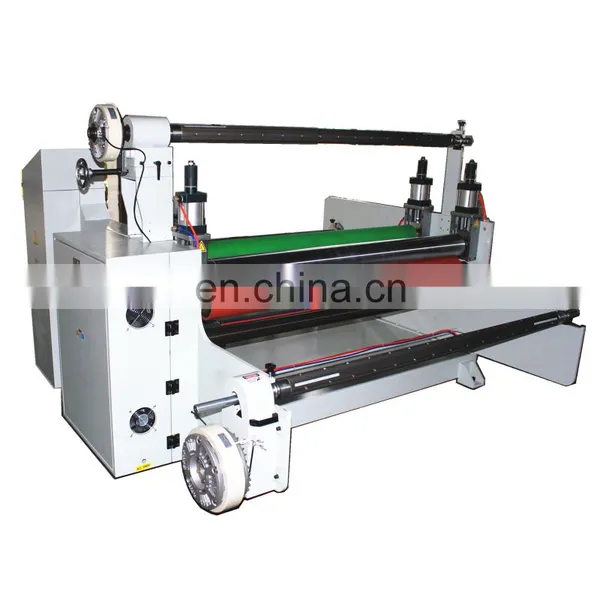

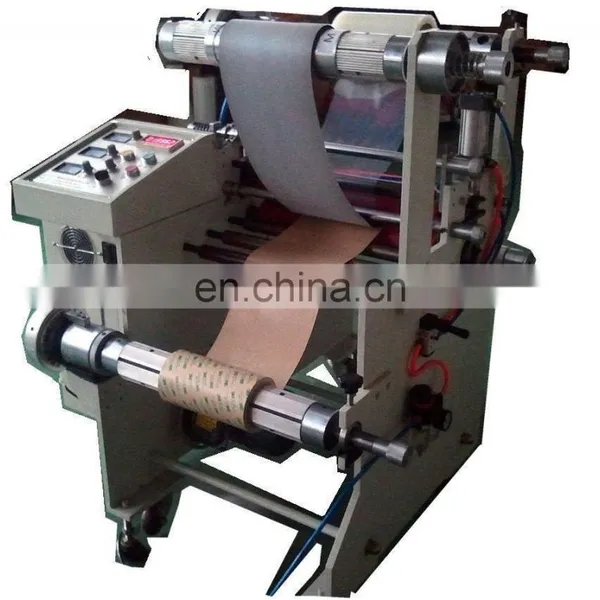

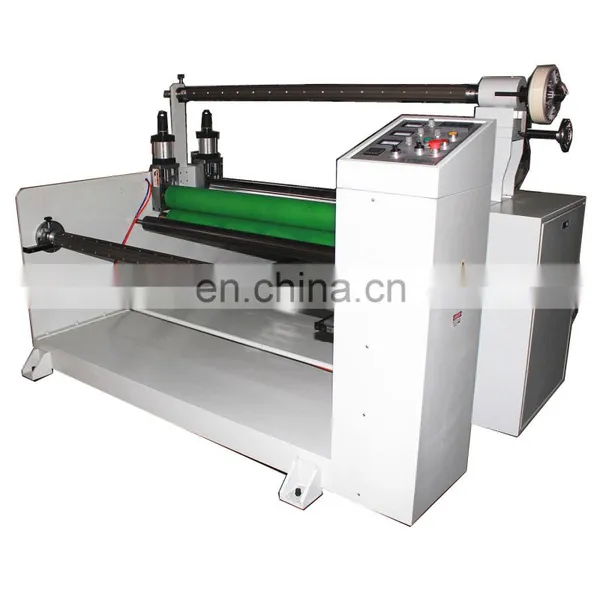

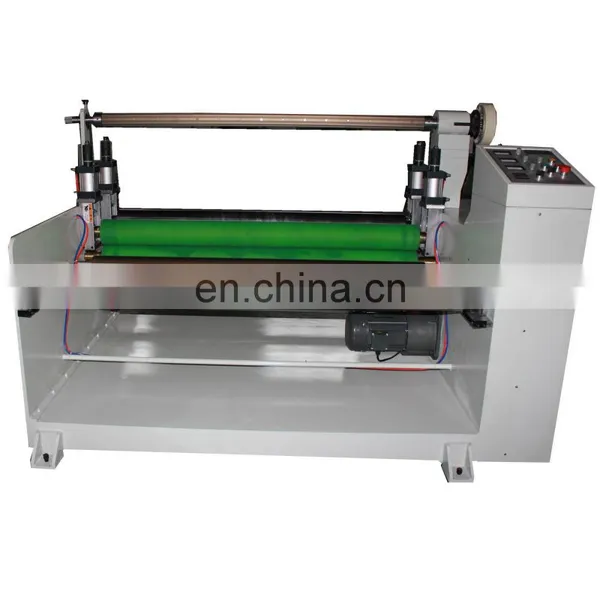

Different Max Working Width Auto Type Hot and Cold Laminating Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Roll to Roll PU Paper Laminating MachineNegotiableMOQ: 1 -
MAX Working Width 1200mm Automatic Mold Oil Heating Type 200 Degree Thermal Laminating MachineNegotiableMOQ: 1
-
Laminating Machine Automatic Heating Lamination Paper and PVC LCD Protective Film Machinery for Max Working Width 650mmNegotiableMOQ: 1
-
Automatic Laminating Machine With Auto Unwinding Rewinding for Narrow Fabric ScrollNegotiableMOQ: 1
-
Fully Automatic Industrial Paper Roll Rewinding Laminating Machine Max Working Width 1000mm for Pre-glue and Glueless FilmNegotiableMOQ: 1
Product Description
Specification
item |
value |
Applicable Industries |
Manufacturing Plant |
Showroom Location |
None |
Condition |
New |
Type |
Laminating Machine |
Computerized |
Yes |
Place of Origin |
China |
Jiangsu |
|
Brand Name |
DP |
Voltage |
380V50HZ |
Dimension(L*W*H) |
112X119X124cm |
Weight |
1.2kg |
Warranty |
12months |
Production Capacity |
60 m/min |
Key Selling Points |
Automatic |
Max. workable width |
650mm |
Machinery Test Report |
Provided |
Video outgoing-inspection |
Provided |
Marketing Type |
Ordinary Product |
Warranty of core components |
1 Year |
Core Components |
Pressure vessel, Gear, Engine, PLC |
PLC Brand |
MITSUBISHI |
Max feeding width |
650mm |
Speed |
60M/min |
Main engineer power |
3kw |
Feeding diameter |
500mm |
Rewinding diameter |
350mm |
Presicion |
+/_0.1mm |
Computerized |
Yes |
Condition |
New |
Power(W) |
3KW |
Type |
Laminating Machine |
Title goes here.
Functional characteristics:
Electric Laminating machine Complex for the sticking of material withou tbase glue and other materials .
This machine is applicable to the Laminating of material of wide breadth ,and characterized by automatic powder brake controlling
over the unreeing tension ,frequency change stepless regulation ,and magnetic power braken's constant torque controlling over the
winding ension ,and therefore ,it is fast in lamination speed and simple to operate,hence a necessary equipment matching the lable printing machine.
Electric Laminating machine Complex for the sticking of material withou tbase glue and other materials .
This machine is applicable to the Laminating of material of wide breadth ,and characterized by automatic powder brake controlling
over the unreeing tension ,frequency change stepless regulation ,and magnetic power braken's constant torque controlling over the
winding ension ,and therefore ,it is fast in lamination speed and simple to operate,hence a necessary equipment matching the lable printing machine.
Model |
DP-420TH |
Max Web Width ( mm ) |
420 |
Max Feeding Diameter ( mm ) |
500 |
Sticking Speed ( t/m ) |
60 |
Sticking Precision ( mm ) |
±0.30 |
Main Motor Power ( kw ) |
0.75 |
Total Power ( kw ) |
1.5 |
model |
DP-650 |
DP-1300 |
DP-1600 |
max feeding width(mm) |
650 |
1300 |
1600 |
main engineer power(kw) |
3 |
3 |
3 |
speed(m/min) |
60 |
60 |
60 |
size(mm) |
1400*1200*1300 |
1650*1450*1300 |
1650*1450*1300 |
weight(kg) |
800 |
1500 |
1800 |
feeding diameter(mm) |
600 |
600 |
800 |
rewinding diameter(mm) |
450 |
450 |
450 |
precision(mm) |
+/_0.1 |
+/_0.1 |
+/-0.1 |
power(v) |
220v50hz |
380v50hz |
380v50hz |
