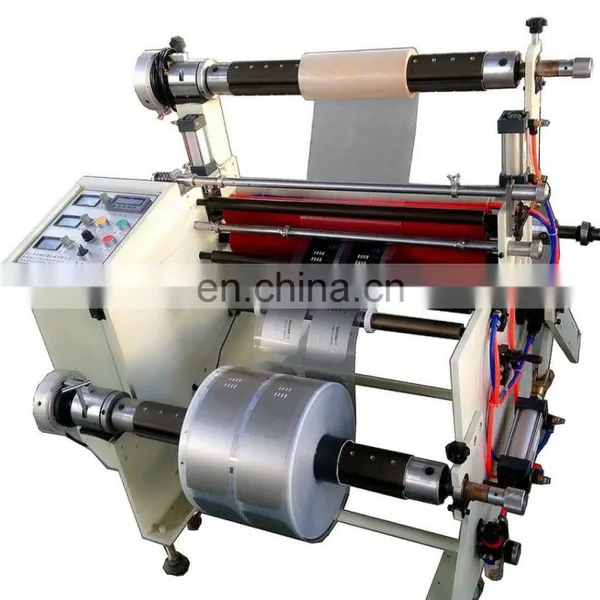

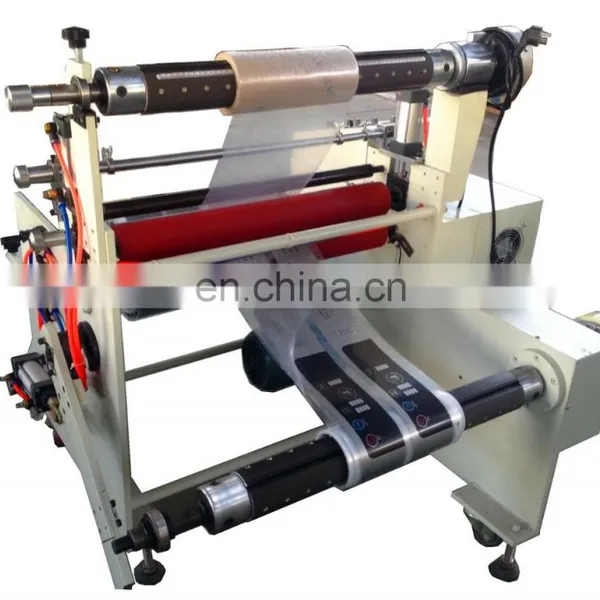

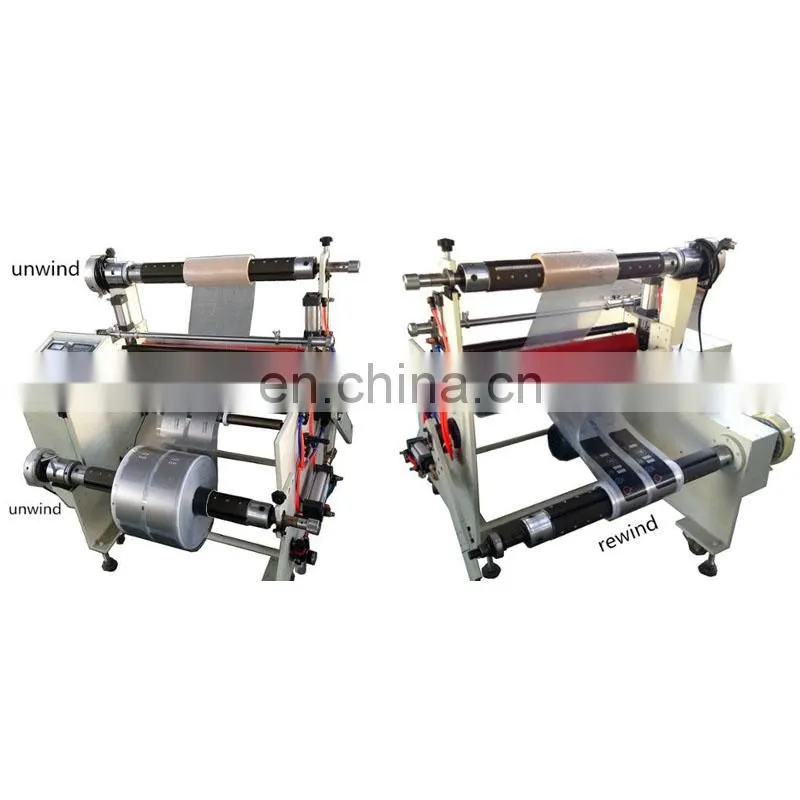

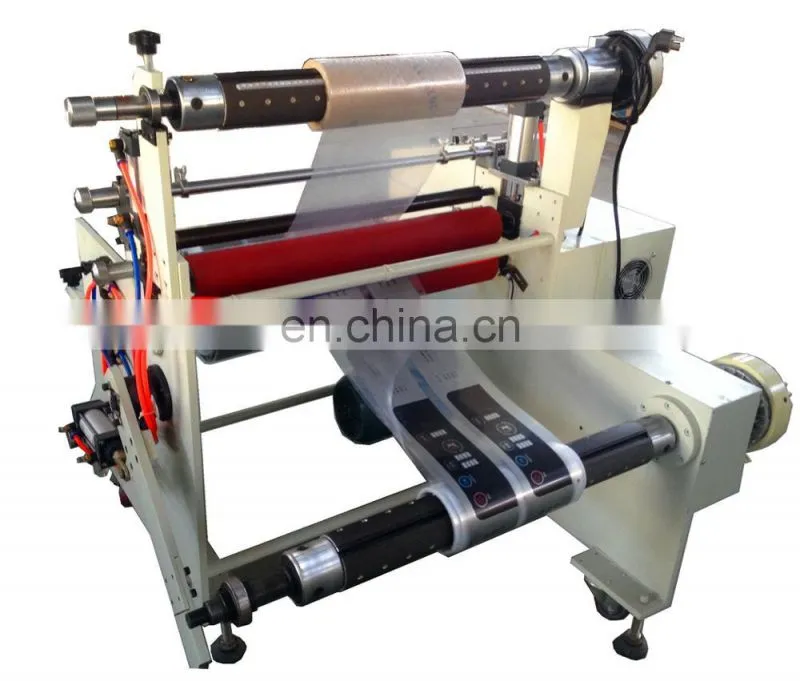

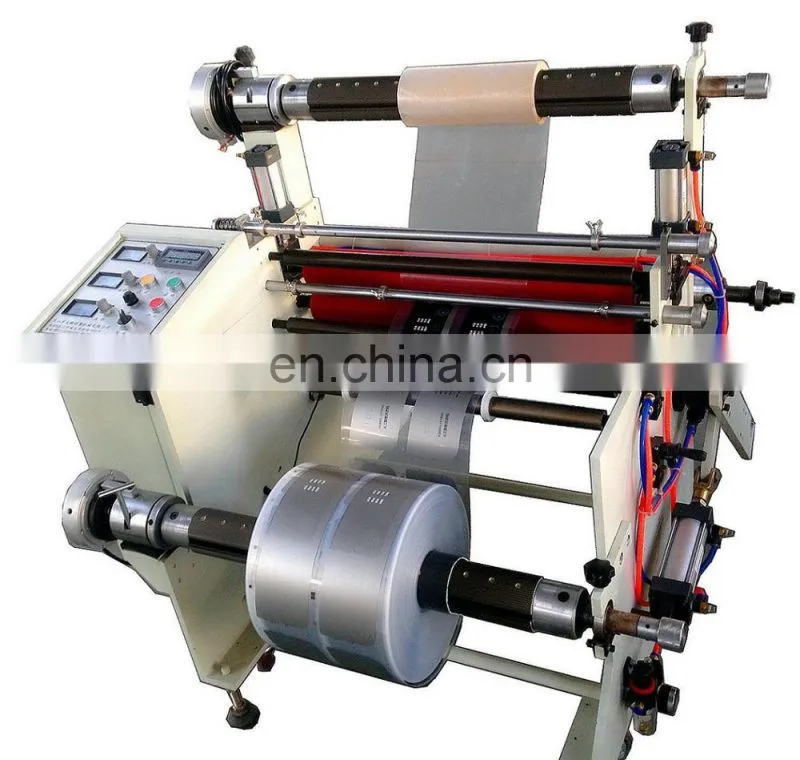

Roll To Roll Aluminum Foil Laminating Machine



Functional Characteristics:

1.Magnetic powder control the unwind and rewind tension.

2.Frequency conversion is used for speed regulation of the main motor.

3.The cylinder control the rubber roller up and down.

4.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.

5.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements.



Application:

Used for laminating industrial tape,electronic material,protective film,copper foil,aluminum foil,OPP,PP,PE,PVC,paper,cloth.etc.



Specification:

Model DP-420 DP-650
Max feeding width 420mm  650mm
Unwinding diameter 400mm 400mm
Rewinding diameter 450mm 450mm
Shaft diameter  3inch 3inch
Precision ±0.3mm ±0.3mm
Total power 1.5kw 2.2kw



Configuration:

Unwinding shaft : 3 inch inflatable shaft  2 pcs

Rewinding shaft : 3 inch inflatable shaft  1 pcs

Magnetic brakes  :  2 set

Magnetic clutch :  1 set

Laminating motor:   1set

Laminating roller :     2   (PU material)

Air cylinder : 2 pcs
