PVC Plastic Film Adhesive Tape Paper Laminating machine
Application:
This machine is used for laminating industrial tape,electronic material,protective film,copper foil,aluminum foil,OPP,PP,PE,PVC,PET PE,EVA,paper,cloth.etc.
Functional Characteristics:
1,3" inflatable shaft to unwind and rewind,1 set laminating roller.
2.Magnetic powder brake control the unwind tension and clutch control the rewind tension.
3.Frequency conversion is used for speed regulation of the main motor.
4.The cylinder control the rubber roller up and down,more convenient for the adjustment of pressure.
5.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.
6.Optional:1.Unwind rectification system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements.
Specification:
| Model | DP-420 | DP-650 |
| Max feeding width | 420mm | 650mm |
| Unwinding diameter | 400mm | 400mm |
| Rewinding diameter | 450mm | 450mm |
| Shaft diameter | 3inch | 3inch |
| Precision | ±0.3mm | ±0.3mm |
| Total power | 1.5kw | 2.2kw |
Configuration:
Unwinding shaft : 3 inch inflatable shaft 2 pcs
Rewinding shaft : 3 inch inflatable shaft 1 pcs
Magnetic brakes : 2 set
Magnetic clutch : 1 set
Laminating motor: 1set
Laminating roller : 2 (PU material)
Air cylinder : 2 pcs

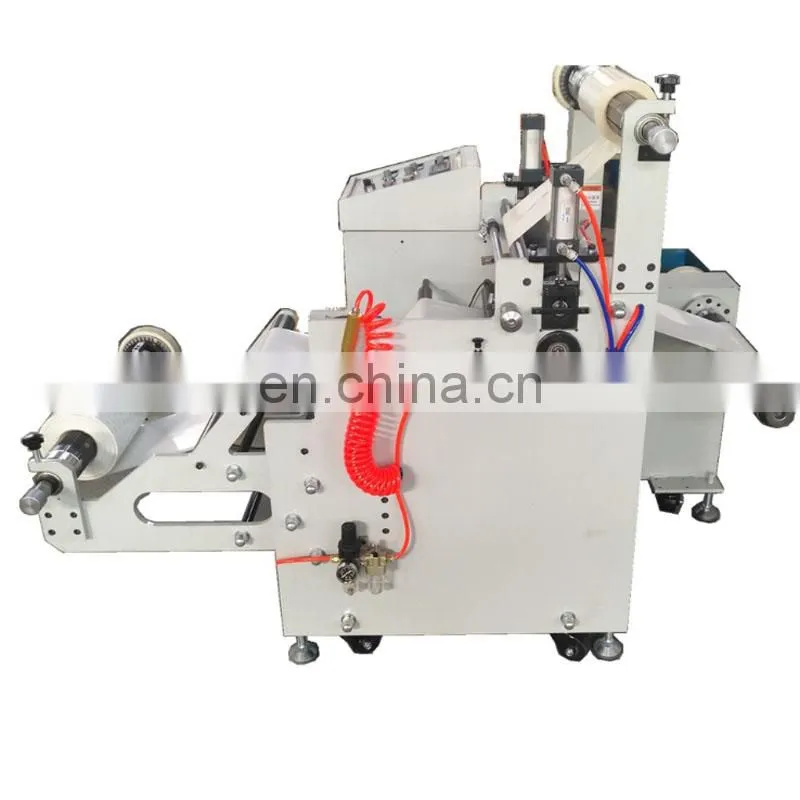

With unwind rectification:

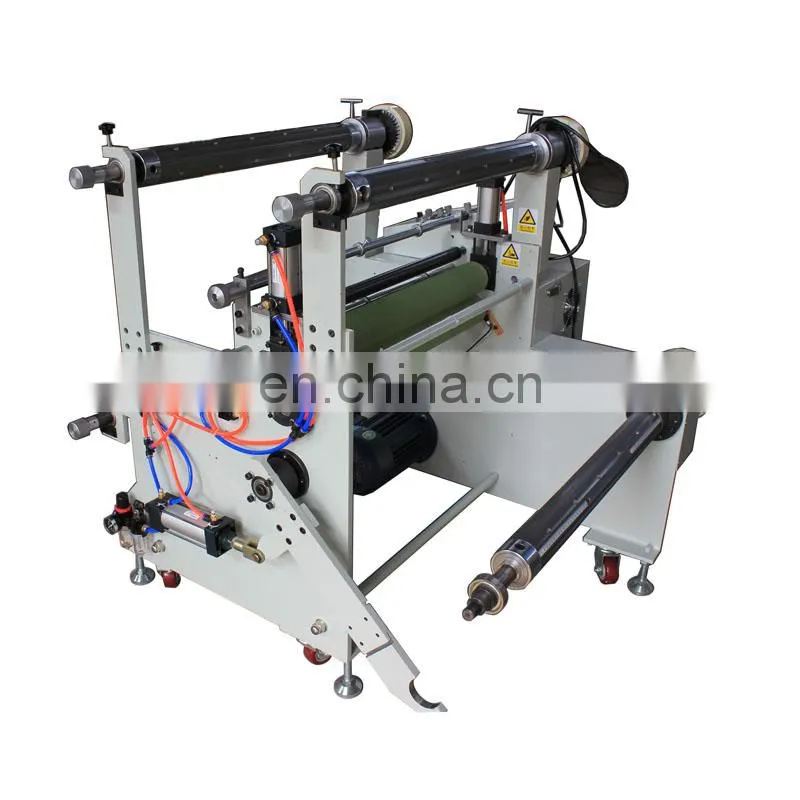

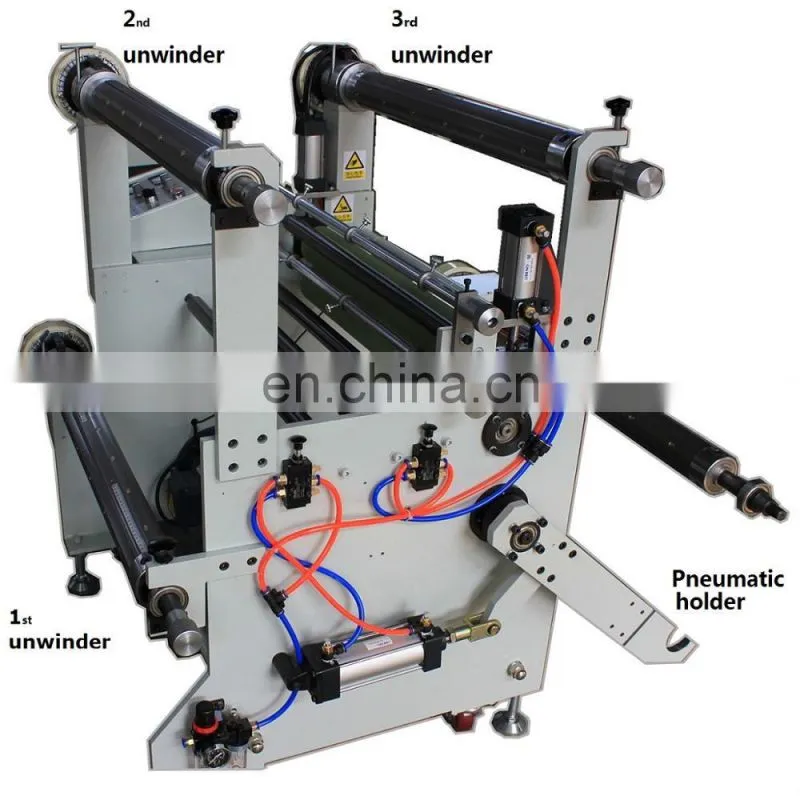

Laminate three layers:

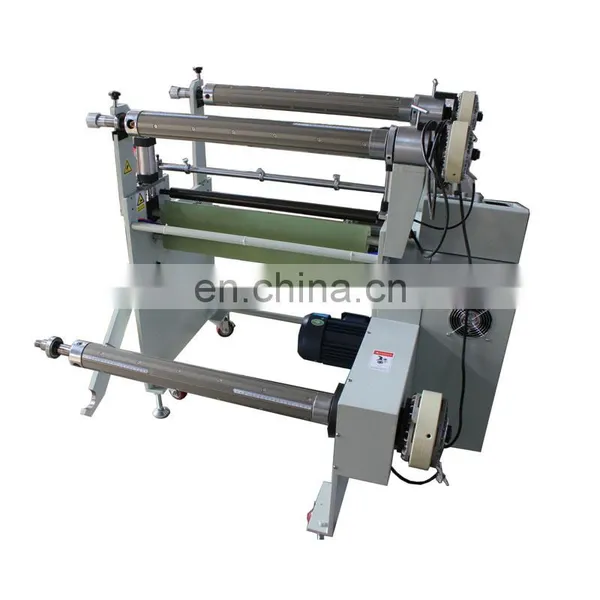

Laminate two layers and rewind liner function:
