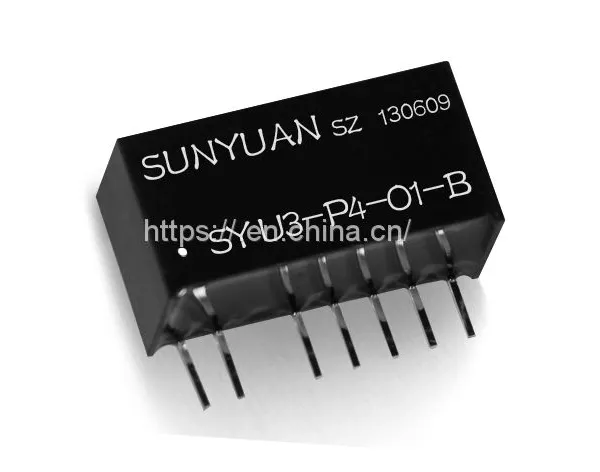

4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter

Shenzhen Sunyuan Technology Co., Ltd
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter thumbnail-1
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter thumbnail-2
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter thumbnail-3
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter thumbnail-4
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter thumbnail-5
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter photo-1
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter photo-2
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter photo-3
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter photo-4
4-20mA to 0-5V Instrumentation and Sensor Signal Transmission Transmitter photo-5
US$ 30 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
SY U1-P2-O5
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number SY U1-P2-O5
Type DC/DC Converters
Size 83x51x37CM
Weight 75 g
Output Power 1 - 50W
Output Type Single
Output Current 0-5V, 0-10V, 1-5mV, 0-1A
Output Frequency 500mA, 200mA,500mA, 2Ω
Output Voltage 0-5V, 0-10V, 1-5mV, 0-1A
Input Voltage 0-5V, 0-10V, 0-75mV, 0-2.5V
Non-isolated 4-20mA to 0-5V Analog Conversion Dual Isolationsignal Converter Transmitter

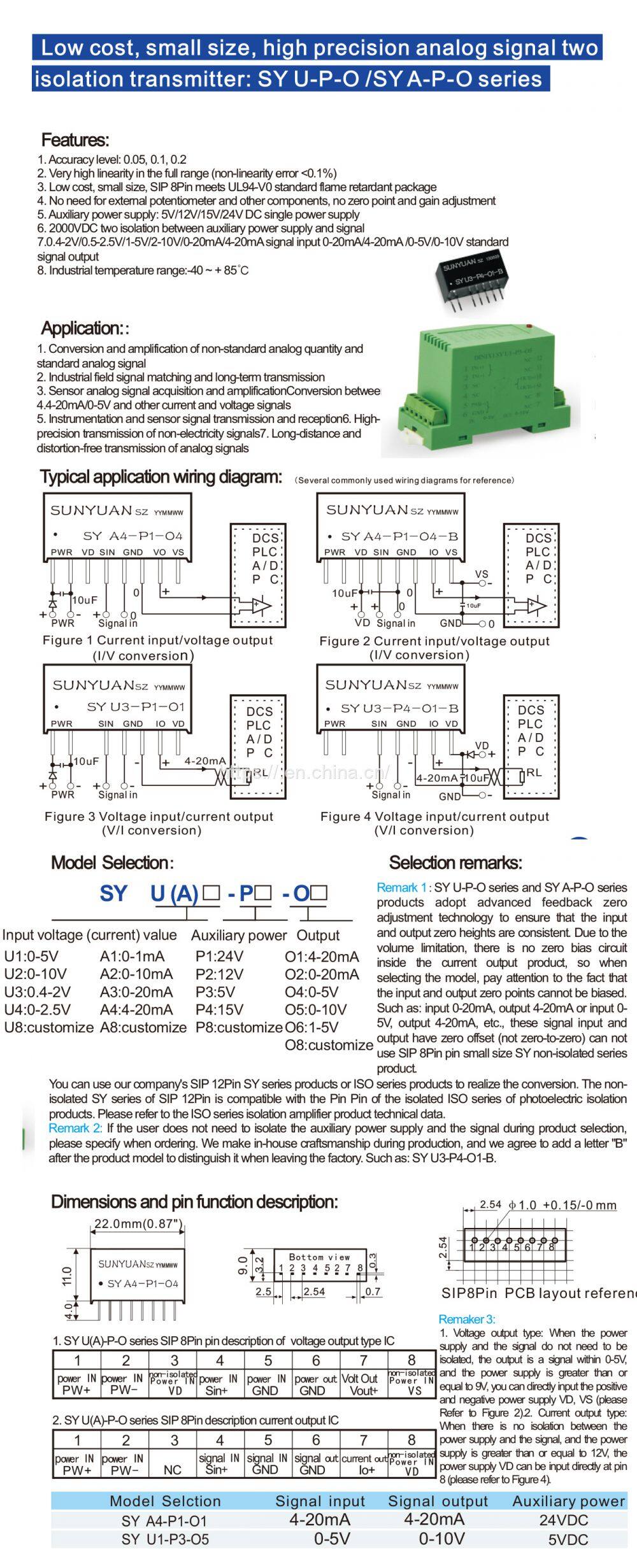

Introduction:
SY-U/A-P-O Series non-isolated signal converter/transmitter is a kind of ic which an convert high impedance
signals to low impedance ones. The device is extremely small in size and very easy to use by using unique low
cost solutions. No external components are needed in applications.It designed to provide the solutions on the

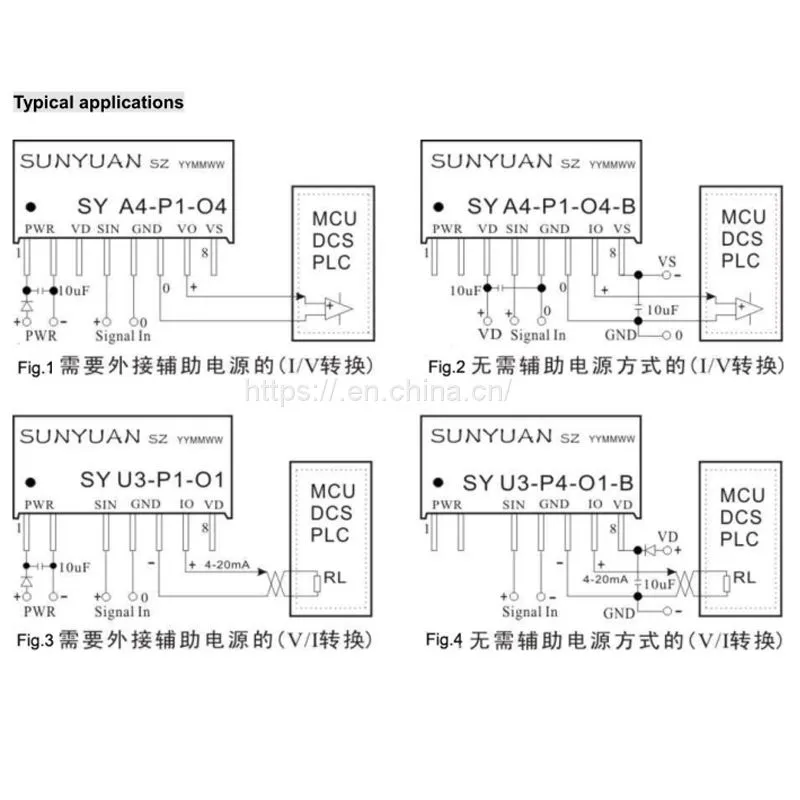

conversion between (0.4-2V/0-5V/1-5V/0-10V/0-20mA/4-20mA,etc) none-standard analog signals (from PLC,
DCS, Meters) and standard analog signals. The converter has high accuracy and good linearity, 2000VDC
isolation voltage between power supply and signal channel which can restrain the surge and common-mode
interference in electricity system. The module integrates DC/DC converter and analog amplifier into a single chip.
It is mainly used in circumstances where A/V signals require to convert into other standards signals and signal
isolation is not required

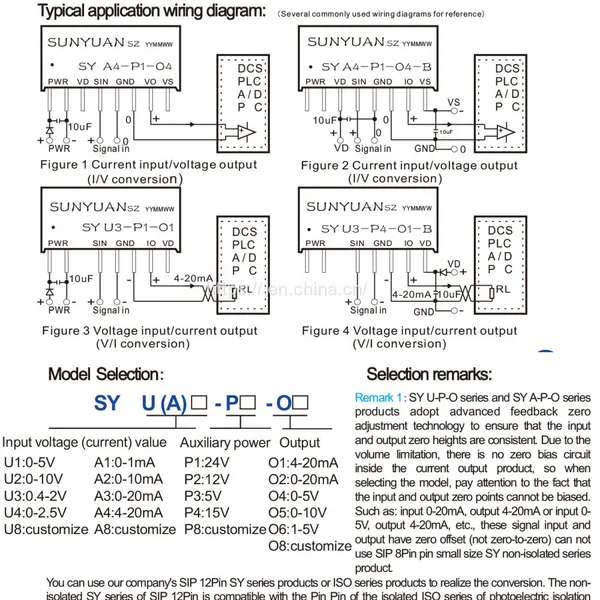

itemSY U-P-O/SYA-P-O Series

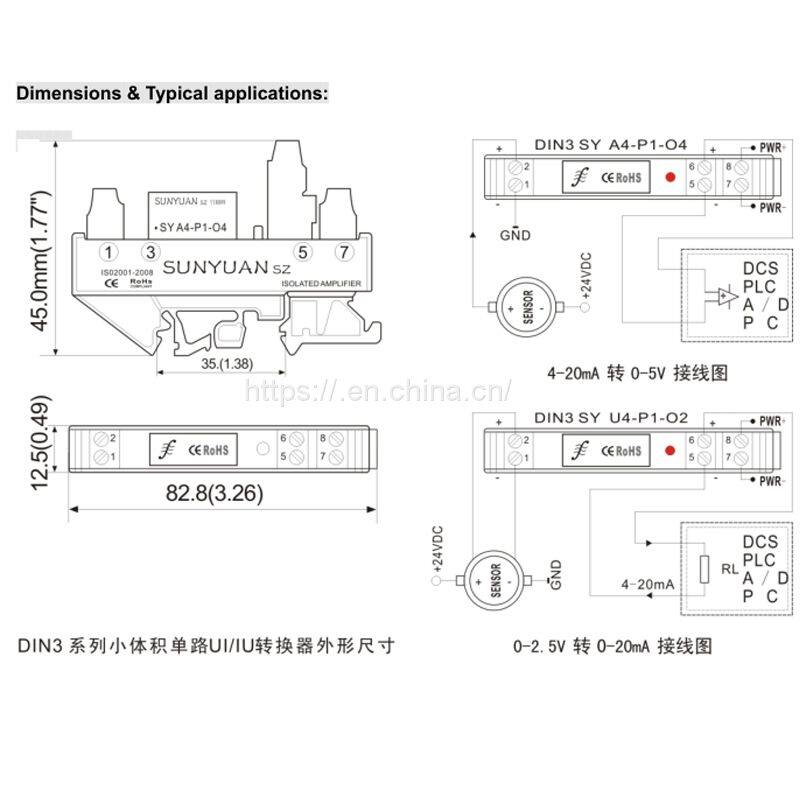

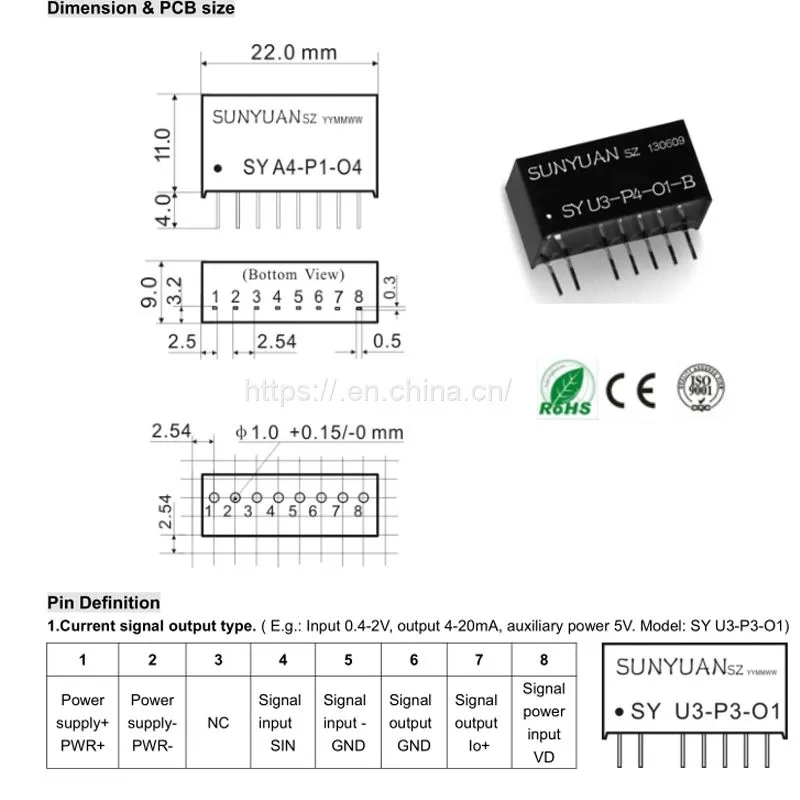

packaging waySIP8/ DIN3/DIN35
input0-5v/0-10v/0.4-2v/0-2.5v/ customized/0-1mA/0-10mA/0-20mA/4-20mA/Customized
output4-20mA/0-20mA/0-5v/0-10v/1-5V/customized
payment wayT/T ,Western union, paypal





For more information, please feel free to contact us:
Other products:
Commonly used two-wire passive isolation amplifier, isolation transmitter IC, Sunyuan product technical information download:
1,4-20mA (0-20mA) Current Loop Isolator IC: ISOS 4-20mA
2,4-20mA two-wire passive I/V conversion isolation transmitter IC: ISO 4-20mA-O series
3,4-20mA isolation controller (active signal PLC current loop active load) IC: ISO 4-20mA-E
4,Two-wire passive sensor 4-20mA loop isolation distributor IC: ISO 4-20mA-F
5,Two-wire voltage signal power distribution isolation transmitter IC: ISO V-4-20mA

Commonly used active type (external auxiliary power supply required) isolation amplifier transmitter IC, product selection application data download:
1,ISO mV series: millivolt-level analog small signal dedicated isolation amplifier IC
2, ISO EM U(A)-P-O-T Series: Zero-point, gain-adjustable analog isolation amplifier isolation transmitter
3, ISO EM A(U)-P-O-S Series: Input Distribution Isolation Transmitter IC
4, ISO EM-U(A)-P-O-O Series: Analog Input Isolation Transmitter with 1 to 2 Output Low Cost Small Size IC mounted Package 5, ISO EM A-P-O Series: 0-±10V Bilateral DC (Voltage/Current) Signal Isolation Amplifier Isolation Transmitter IC
6, DIN3 ISOEM U-P-O(A-P-O) Series: Single DIN35 rail mounting packaging low cost small volume isolation transmitter
7,DIN 1X2 ISOEM U(A)-P-O Series: one input and two output DIN35 rail mounting packaging isolation transmitter

8,DIN 2X1 C-P-O Series: 2 input and 1 output analog average isolation transmitter
9,DIN 2X2 ISOEM U(A)-P-O Series: two in two out DIN35 rail mounting isolation transmitter
10,DIN 1X3 ISOEM U(A)-P-O Series:one in three out DIN35 Rail mounting isolation transmitter
11,DIN ISO AC Series: Passive two-wire AC to DC signal isolation transmitter
12,ISO EMH 4-20mA Series: High isolation barrier for track voltage monitoring
13,ISO F-P-O  Series: Frequency Signal (FV/FI Conversion) Isolated Converter IC
14,ISO U(A)-P-F Series: Analog Signal to Frequency Pulse Signal (V/F) Isolated Transmitter IC
15,ISO EM RMS-P-O Series: Analog True RMS (RMS) Signal Isolation Transmitter Isolation Amplifier
16.Large current output type high precision signal transmitter



Product Tags: Power Supply , Converter , Power Inverter , Signal Conditioning , Isolation Amplifier , signal converter , signal isolation , Signal Amplifier , Analog Isolator
