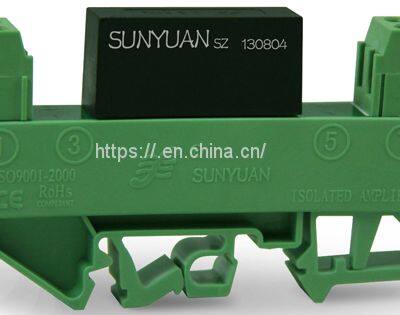

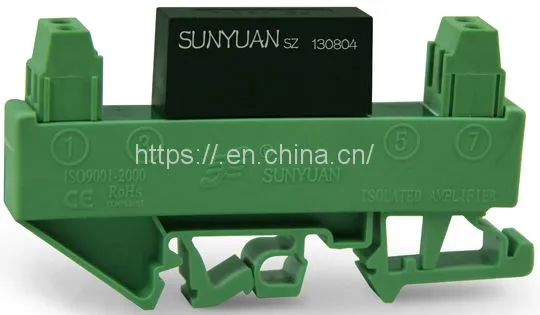

Magnetoelectric Coupling 0-10V Analog DC Signal Isolators

Magnetoelectric Coupling 0-10V Analog DC Signal Isolators thumbnail-1
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators thumbnail-2
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators thumbnail-3
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators thumbnail-4
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators photo-1
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators photo-2
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators photo-3
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators photo-4
US$ 30 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
ISOEM U-P-O
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number ISOEM U-P-O
Type DC/DC Converters
Size 83x51x37CM
Weight 75 g
Output Power 1 - 50W
Output Type Single
Output Current 0-5V, 0-10V, 1-5mV, 0-1A
Output Frequency 500mA, 200mA,500mA, 2Ω
Output Voltage 0-5V, 0-10V, 1-5mV, 0-1A
Input Voltage 0-5V, 0-10V, 0-75mV, 0-2.5V
Magnetoelectric Coupling 0-10V Analog DC Signal Isolators



Features:

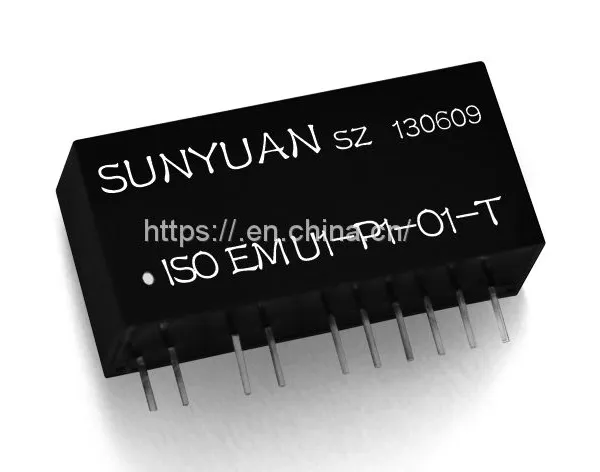

1. Low cost, small size, SIP 12Pin, anti- fire UL94V-0 package
2. External components, "ZERO" "G.adj" adjustment are not required
3. Three-port (power/input/output) isolation: 3000VDC
4. Auxiliary power supply: 5VDC/12VDC/15VDC/24VDC
5. 0-75mV/0-2.5V/0-5V/0-10V/0-±100mV/0-±5V/0-±10V voltage signal 0-10mA/0-20mA/4-20mA/0-±10mA/0-±20mA current signal isolation and amplification.
6. Temperature range: -45~+85 ºC
7. In EMC (electromagnetism interference) circumstance, need to take shielding measures.

Applications:
1. DC current/voltage signal isolated/transfer/amplifier
2. No distortion in long distance signal transmission
3. Analog signal data acquisition
4. 4-20mA(0-20mA)/0-5V signal isolation and transfer
5. Equipment and sensor signal acquisition
6. Signal isolated transmission and conversion
7. Electric power, distant control, isolated safe bar
8. 4-20mA sensor analog signal transmission
9. Ground interference control

Specification:

Item 4Magnetoelectric Coupling 0-10V Analog DC Signal Isolators
Model No. ISOEM U-P-O
Input 0-5V, 0-10V, 0-75mV, 0-2.5V, 0-±5V, 0-±10V, 0-±100mV, 0-1mA, 0-10mA, 0-20mA, 4-20mA, 0-±1mA, 0-±10mA, 0-±20mA
Output 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, -20-20mA, 0-±10V
Power supply 24V/12V/15V/5VDC
Isolation voltage 3KVDC isolation between input and output
Package Sip 12
Optional package type DIN rail mounted type

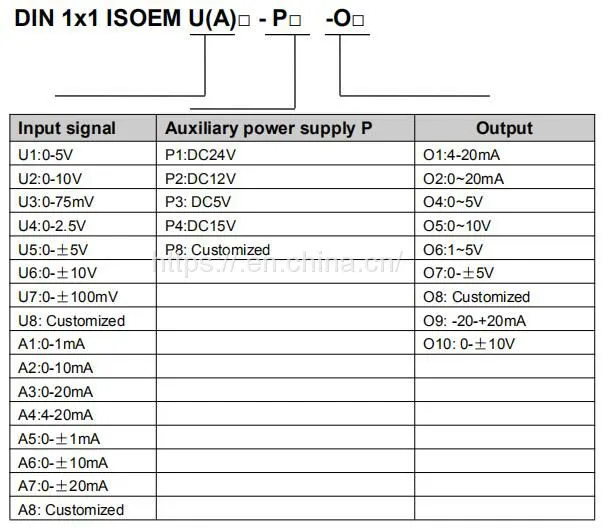

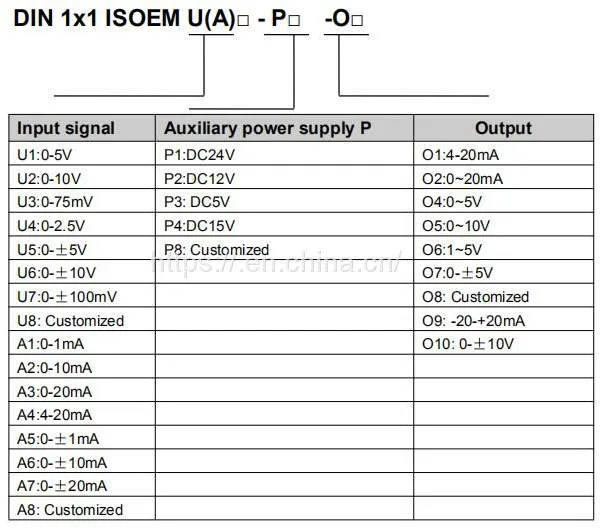

Model Selection:
