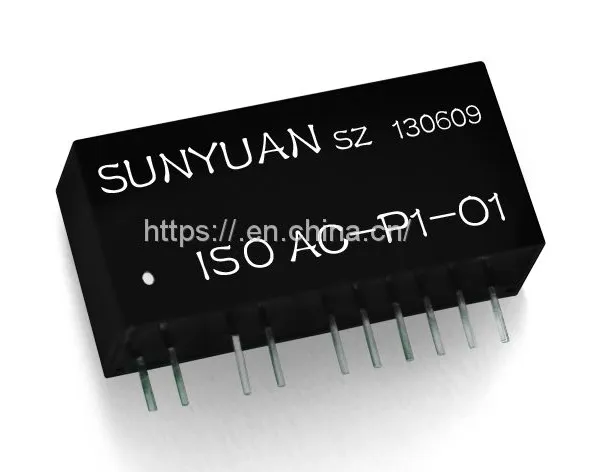

0-5AAC to 4-20mA AC-DC Signal Transmitter IC

0-5AAC to 4-20mA AC-DC Signal Transmitter IC thumbnail-1
0-5AAC to 4-20mA AC-DC Signal Transmitter IC thumbnail-2
0-5AAC to 4-20mA AC-DC Signal Transmitter IC thumbnail-3
0-5AAC to 4-20mA AC-DC Signal Transmitter IC thumbnail-4
0-5AAC to 4-20mA AC-DC Signal Transmitter IC thumbnail-5
0-5AAC to 4-20mA AC-DC Signal Transmitter IC photo-1
0-5AAC to 4-20mA AC-DC Signal Transmitter IC photo-2
0-5AAC to 4-20mA AC-DC Signal Transmitter IC photo-3
0-5AAC to 4-20mA AC-DC Signal Transmitter IC photo-4
0-5AAC to 4-20mA AC-DC Signal Transmitter IC photo-5
US$ 30 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
ISO AC-P-O
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number ISO AC-P-O
Type DC/DC Converters
Size 83x51x37CM
Weight 75 g
Output Power 1 - 50W
Output Type Single
Output Current 0-5V, 0-10V, 1-5mV, 0-1A
Output Frequency 500mA, 200mA,500mA, 2Ω
Output Voltage 0-5V, 0-10V, 1-5mV, 0-1A
Input Voltage 0-5V, 0-10V, 0-75mV, 0-2.5V
 0-5AAC to 4-20mA AC-DC Signal Transmitter IC

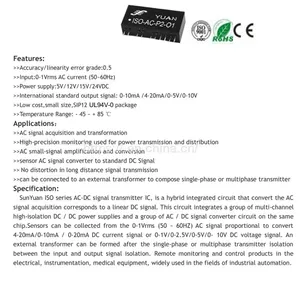

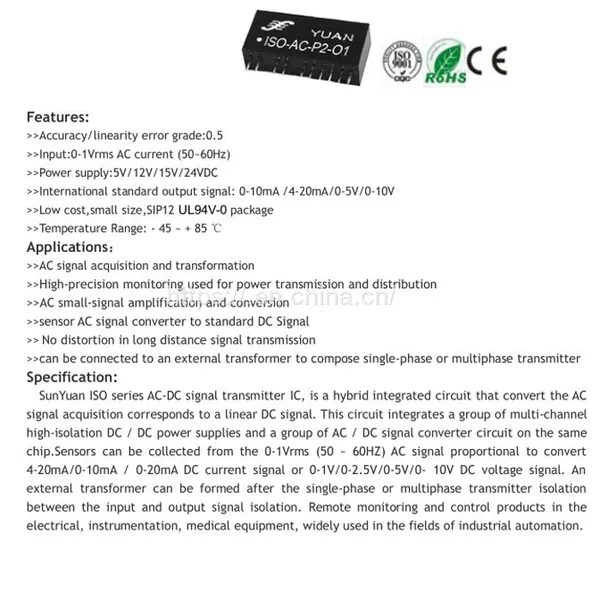

Features:

Accuracy/linearity error grade: 0.5
Input: 0-1Vrms AC current (50~60Hz)
Power supply: 5V/12V/15V/24VDC
International standard output signal: 0-10mA /4-20mA/0-5V/0-10V
Low cost, small size, SIP12 UL94V-0 package
Temperature Range: - 45 ~ + 85 º C

Applications:

AC signal acquisition and transformation
High-precision monitoring used for power transmission and distribution
AC small-signal amplification and conversion
Sensor AC signal converter to standard DC Signal
No distortion in long distance signal transmission
Can be connected to an external transformer to compose single-phase or multiphase transmitter

Specification:

ISO series AC-DC signal transmitter IC, is a hybrid integrated circuit that convert the AC
Signal acquisition corresponds to a linear DC signal. This circuit integrates a group of multi-channel
High-isolation DC / DC power supplies and a group of AC / DC signal converter circuit on the same
Chip. Sensors can be collected from the 0-1Vrms (50 ~ 60HZ) AC signal proportional to convert
4-20mA/0-10mA / 0-20mA DC current signal or 0-1V/0-2.5V/0-5V/0- 10V DC voltage signal. An
External transformer can be formed after the single-phase or multiphase transmitter isolation
Between the input and output signal isolation. Remote monitoring and control products in the
Electrical, instrumentation, medical equipment, widely used in the fields of industrial automation.

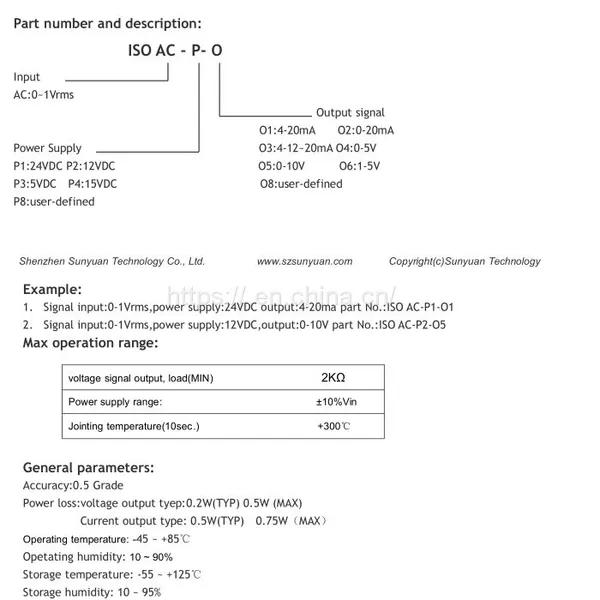

Model selection:

ISO AC - P- O
Input

AC: 0~1Vrms

Output signal

O1: 4-20mA O2: 0-20mA

O3: 4-12~20mA O4: 0-5V

O5: 0-10V O6: 1-5V

O8: User-defined


Power Supply

P1: 24VDC P2: 12VDC

P3: 5VDC P4: 15VDC

P8: User-defined
AC: Input signal  O:Output signal  P:Power supply
AC:0~1 Vrms  O1:4-20mA  P1:24VDC

 O2:0-20mA  P2:12VDC

 O3:4-12~20mA  P3:5VDC

 O4:0-5V  P4:15VDC

 O5:0-10V  P8:User-defined

 O6:1-5V

 O8:User-defined
