Product Description

Automatic Yarn Twist Tester

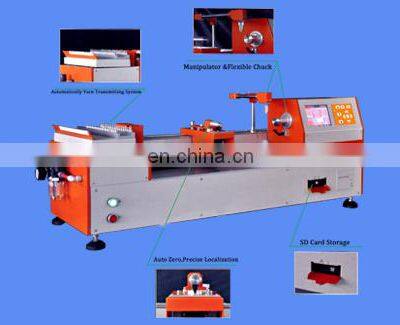

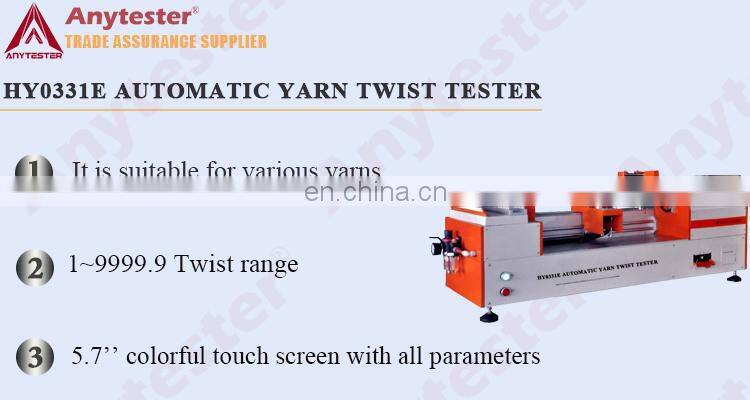

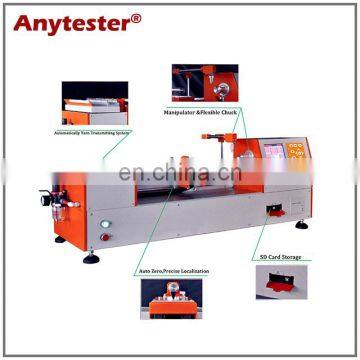

HY0331E Automatic Yarn Twist Tester is used to determine yarn twist of single or plied yarns by conventional or untwist/re-twist method.
Details and Features
★It is suitable for various yarns ★Adjustable pre-tension according to yarn category ★Adopt micro-computer control, with automatic data processing, display and printout, accurate, stable and reliable ★It can also be connected to computer to achieve more analysis function ★With imported dedicated clock circuit, the system time can be printout on the report ★Yarn holder directly driven by motor, stepless speed regulation; Also designed with speed measurement function to accurately determine the rotating speed of yarn holder (motor) ★CPU automatically judges the rotating direction of yarn holder, processing and counting, the division value can be 1/10twist ★Special designed automatic guiding yarn device, combined of taking yarn manipulator and pneumatic sending yarn device to make sure work efficiency ★Automatic zero adjustment with accurate positioning. Overcome the default caused by manual operation ★5.7’’ colorful touch screen with all parameters, clear and brief ★Test result can be stored in 4G SD card and with the function of data review, query and print
Standard Configuration
ISO 2061
GB/T 2543.1, 2543.2
BS 3356
ASTM D1422/1423
Technical specification
Model
HY0331E
Twist range
1~9999.9 twist
Max tubes of sample
20
Max testing times of each tube
20 times
Linear density
1~499.9tex
Test length
100,250,500mm selectable
Test method
Direct counting method
Untwist/re-twist method (method A)
Untwist/re-twist method (method B)
Three times of untwist/re-twist method
Test speed
100~3000r/min, stepless adjustable
Extension range
＜20mm
Compressed air
0.5~0.8MPa
Power supply
AC220V±10% 50Hz
Rated power
400w
Dimensions
1500mm×400mm×300mm
Weight
60kg
