Checking Corrosion With Salt Spray Chamber
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
Product Application.

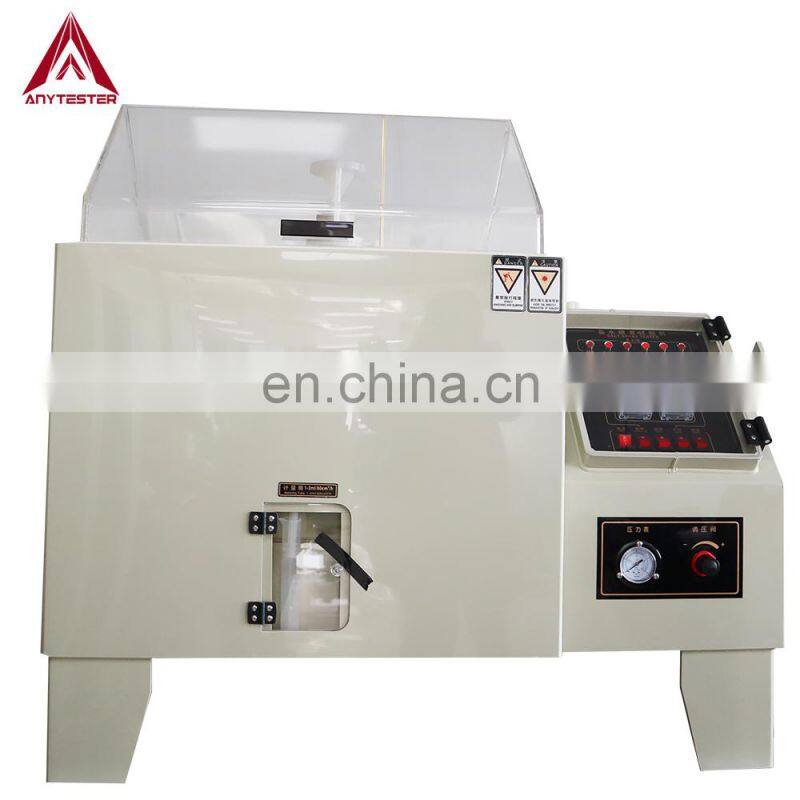

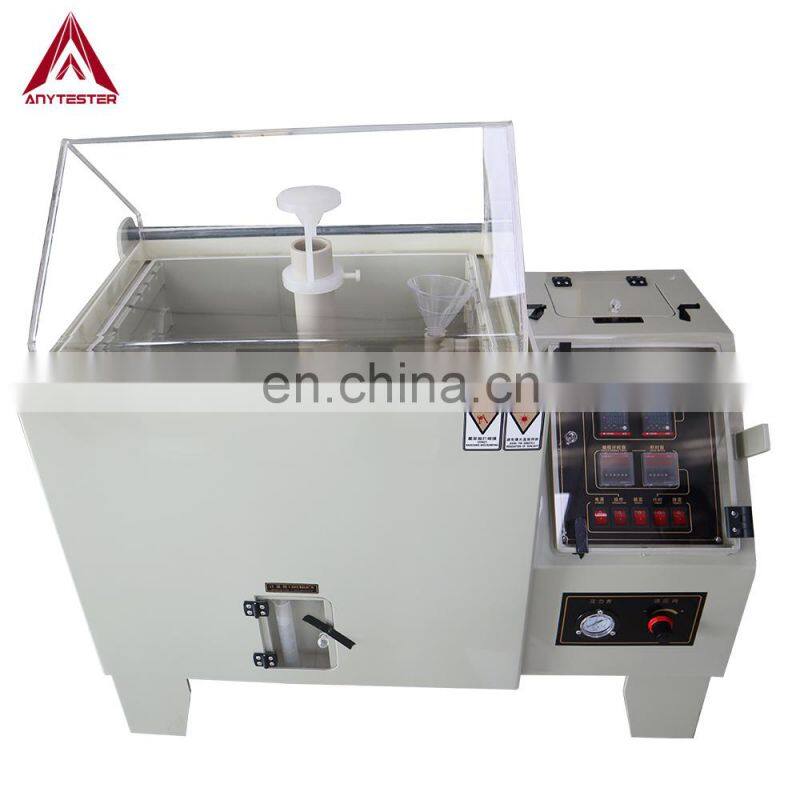

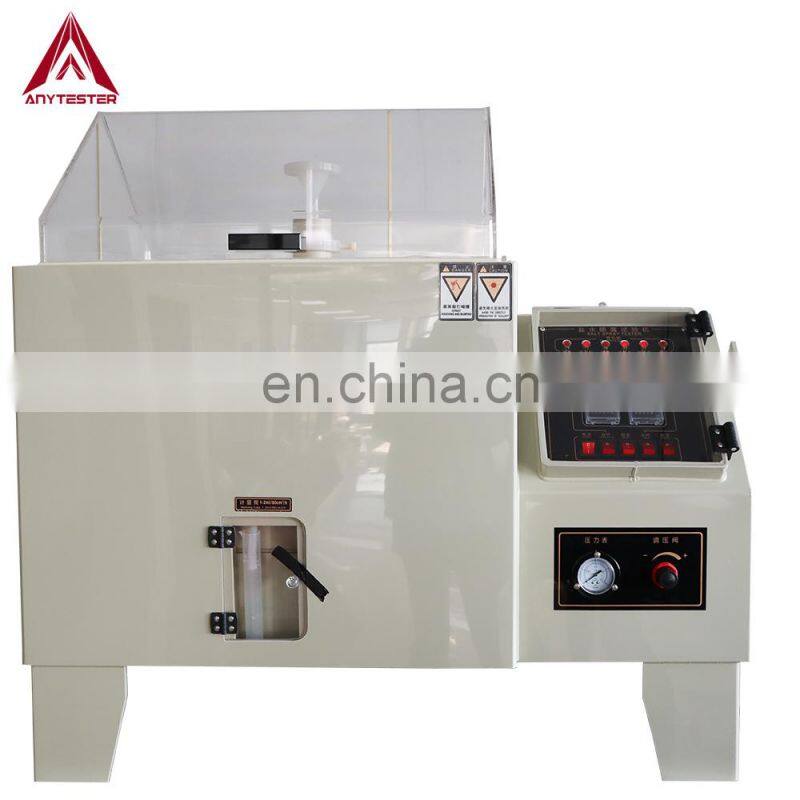

AT-YW Series Salt Spray Chamber is used to determine the corrosion resistance to salt fog of specimens. It is used for evaluating the quality and the uniformity of materials surfaces.
This machine conforms to ISO 9227, ASTM B117, DIN 50021, GB/T 2423.17, GB/T 2423.18, etc.
Technical Specification
Model | AT-YW60 | AT-YW90 | AT-YW120 | AT-YW160 | AT-YW200 | ||||
Inner dim. (cm) | 60×45×40 | 90×60×50 | 120×85×50 | 160×100×50 | 200×100×60 | ||||
External dim. (cm) | 110×67×118 | 141×91×122 | 200×115×145 | 240×135×145 | 280×135×155 | ||||
Test chamber volume | 108L | 270L | 600L | 680L | 800L | ||||
Salt water tank volume | 15L | 25L | 40L | 40L | 60L | ||||
Material Thickness | 5mm | 6mm | 8mm | 8mm | 10mm | ||||
Test chamber temp. | RT＋5℃~50℃ | ||||||||
Fog quantity | 1～2ml/h.80cm2 | ||||||||
Temp. fluctuation | ≤±0.5℃ | ||||||||

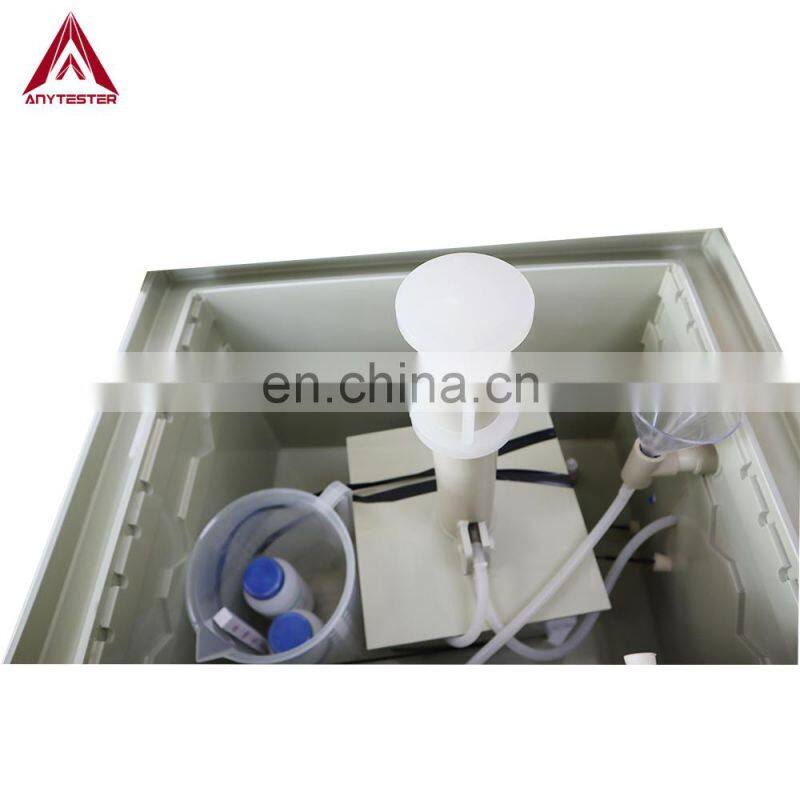

Spray tower | Independent designed acrylic conical disperser, can adjust the flow of the spray, and can make the fog uniform | ||||||||
Spray nozzle | PYREX glass precision nozzle | ||||||||
Spraying mode | Continuous and intermittent spray selectable | ||||||||
Timing range | 0-9999.9h | ||||||||
Interval time | 0~99.9 h | ||||||||
Power supply | AC220V, 50Hz | ||||||||
Details & Features
The chamber adopts high quality material and advanced technology, corrosion resistant, smooth and easy to clean, no leakage phenomenon.
It equipped with a variety of specimen supports, convenient for placement of all kinds of specimens to test.
★ Innovative design, chamber structure, easy to install and maintain, stable and reliable;
★ Chamber cover adopts transparent acrylic sheet, 5mm thick, high temperature resistant;
★ Adopts U-shaped alloy heating tube, fast to heat, with resistance to acid and alkali corrosion, long service life;
★ Independent designed acrylic conical atomizer, can adjust the flow of the spray, and can make the fog uniform;
★ Pressure regulating valve adopt concave type design, to prevent wrong operation, and save space.
★ Chamber cover adopts transparent acrylic sheet, 5mm thick, high temperature resistant;
★ Adopts U-shaped alloy heating tube, fast to heat, with resistance to acid and alkali corrosion, long service life;
★ Independent designed acrylic conical atomizer, can adjust the flow of the spray, and can make the fog uniform;
★ Pressure regulating valve adopt concave type design, to prevent wrong operation, and save space.
Packing & Delivery
Packaging | ||
Size | 140(L) * 100(W) * 180 (D) | |
Weight | 200 Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Related Products
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10 days after receiving payment for one container | ||||
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
