Home > Products > Textile Tester > Fabric Vertical Flammability Tester
Fabric Vertical Flammability Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

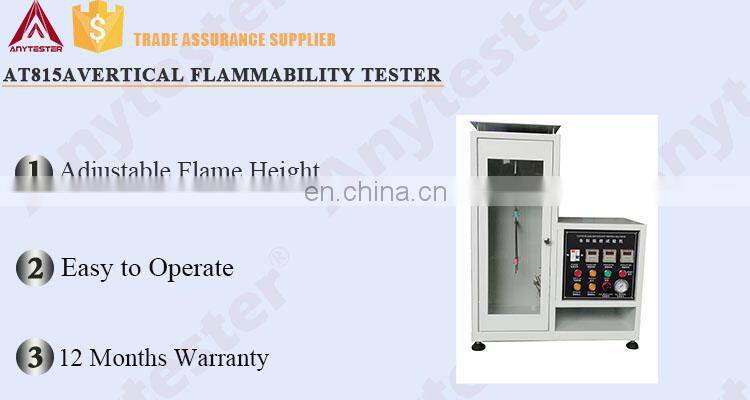

Vertical Flammability Tester
HY0815A Vertical Flammability Tester is used for measuring the vertical flame spread for knitted-fabric, woven fabric, coating products, etc.
Details and Features
★ A3 Steel body with double painting, leave 12.5mm hole for fume outlet
★ Micro-computer control of timing and ignition system, auto-complete, accurate, stable and reliable
★ Adjustable ignition time according to different test requirement, default is 12s
★ Adjustable flame height
★ With transparent protective glass door, convenient to observe
★ Equipped with air vent on the top of machine
★ Fully equipped with accessories, easy to operate
Standard Configuration
ASTM D6413 | 16 CFR Parts 1615 & 1616 |
GB/T5455 |
Technical specification
Model | AT815A |
Timing range | 0.1s~99H99Min |
Timing accuracy | 0.01s |
Ignition time | 12s (default), settable |
Flame height | Adjustable |
Inner diameter of igniter | 11mm |
Sample holder | U shape, inner frame: 356mm×51mm |
Air input pressure | 2kPa~20kPa |
Overall dimensions | 720mm×330mm×900mm |
Chamber size | 329mm×300mm×767mm |
Power supply | AC220V±10%, 50Hz |
Power | 40w |
Weight | 35kg |
Our Company
Payment
Payment term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Contacting Us
Packing & Delivery
Packaging | ||
1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | ||
