Home > Products > Textile Tester > Yarn Evenness & Hairiness Tester
Yarn Evenness & Hairiness Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

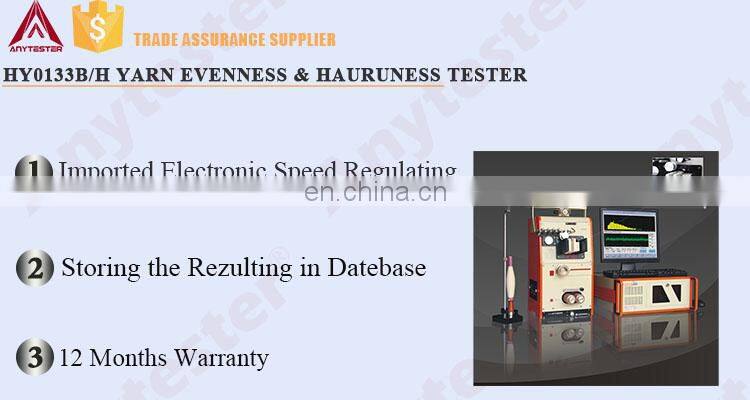

Yarn Evenness and Hairiness Tester
HY0133B/H Yarn Evenness and Hairiness Tester is used to test evenness of yarns, roving, slivers which are spun with cotton, wool, flax and short synthetic fiber.
Details and Features
★Imported electronic speed regulating system feature with accurate rotation speed and high test precision;
★Zooming the currently unevenness curve in several proportion to facilitate the analysis of cycle uneven quality;
★Storing the test resulting in database to make it easy for user to carry out classified statistics and analysis with test result and enhance the quality control ability;
★Statistic analyzing system can put out annals, seasonal report, monthly report, daily report of testing data for some material, and distribution diagram of index tendency;
★Expert system (optional) can help user to analyze failures in the textile technology. It also can compare the yarn with USTER statistics.
Technical specification
Model | HY0133B/H |
Measuring range | Yarn: 4tex-80ktex Hairiness: 4tex-160tex |
Testing speed | yarn: 4, 8, 25, 50, 100, 200, 400m/min Hairiness: 200,400m/min |
Testing time | 0.5-50min selectable |
Test length | Max.10000m |
Test times | 1 ~ 24 tubes/group |
CV% (U%) range | 0 ~ 99.99% |
Thin | -30%, -40%, -50%, -60% |
Thick | +35%, +50%, +70%, +100% |
Neps | +140%, +200%, +280%, +400% |
CV length curve | Cutting length 0.01 ~ 1000m |
DR% range | 0 ~ 99.99% in 1m±5% |
Spectrogram range | 0.01 ~ 3011m |
Spectrogram channel | Standard: 86 Fine: 172 |
3D Spectrogram | 1 ~ 12 pcs / screen, max. 24 pcs |
Power supply | AC220V±10% 50Hz |
Power consumption | ≤600W |
Weight | 65kg |
Our Company
Payment
Payment term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Contacting Us
Packing & Delivery
Packaging | ||
1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | ||
