Large LCD Screen Display Single Fiber Strength Tester With Pneumatic Clip
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

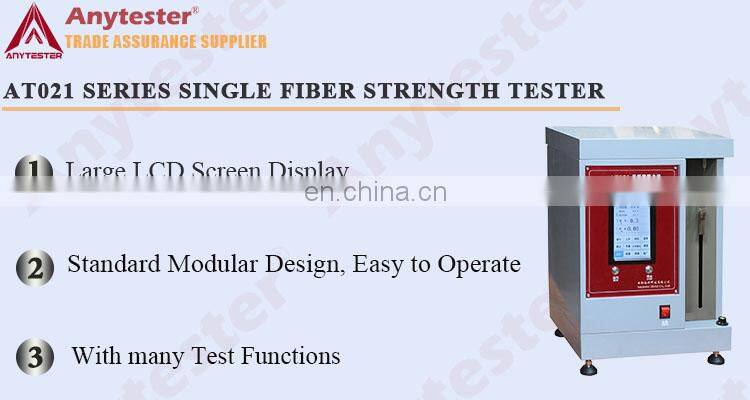

AT021 Series Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.
Standard
GB/T 9997, 13835.5, 14337 ISO 5079 | ASTM D3822 | |
ISO 5079, 11566 | BS 4029 | |
Note: For more standards, please contact us! | ||
Specification
Item | AT021A | AT021B | |
Clamping method | Manual | Pneumatic | |
Load range | 500cN | ||
Load division | 0.001cN | ||
Load resolution | 1/100000 | ||
Load cell accuracy | ≤±0.05%F·S | ||
Load precision | ≤±0.5% when 2%~100% of measuring range | ||
Test speed | 2～200mm/min, digitally settable & adjustable | ||
Extension resolution | 0.1mm | ||
Maximum extension | 100mm | ||
Clamping distance set method | Digital set or auto position | ||
Pretension | 0.1cN, 0.15cN, 0.2cN, 0.3cN, 0.4cN, 0.5cN Two for each | ||
Data storage capacity | ≥2000time | ||
Dimension | 400×300×550mm （L×W×H） | ||
Power Supply | AC220V±10% 50Hz | ||
Weight | Approx. 45kg | ||
Details & Features
★Test functions:
F1. Tensile test
F2. Elasticity test at specified elongation
F3. Repeated tensile test at specified elongation with settable two stop time
F4. Elasticity test at specified load
F5. Repeated tensile test at specified load with settable two stop time
F6. Repeated tensile test at incremental load with settable two stop time
F7. Creep
F8. Relax

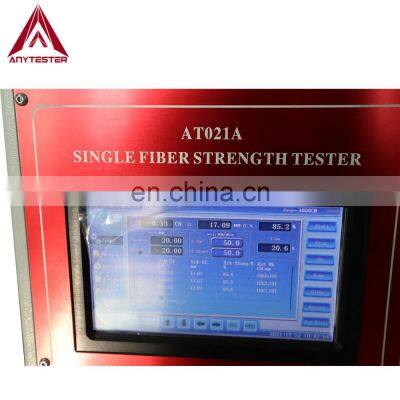

★Large LCD screen display of all parameters and data in both English menu;
★Delete random test data and export test result in Excel document, convenient for the user to connect with the enterprise management software;
★Software analyzing function：breaking point, rupture point, stress point, yield point, initial modulus, elastic deformation, plastic deformation and so on;
★Safety protection measures: limit, over-load, negative force, over-current and over-voltage protections;
★Force calibration: digital code calibration (authorized code);
★Unique bidirectional controlling technology to make tests convenient and rapid, abundant and various test results (data report, curve, diagram and form);
★Standard modular design, convenient to maintain and update.
