Home > Products > Textile Tester > Lab Two-for-one Winding Machine
Lab Two-for-one Winding Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

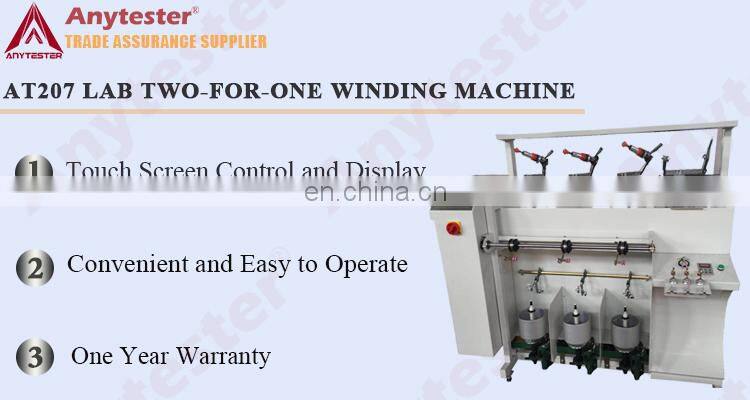

AT207 Laboratory Two-for-one Winding Machine
AT207 Lab Two-for-one & Winding Machine is a combination machine of winding and twisting. It can wind up to three yarns from three bobbins into one bobbin without twisting and doubly twist yarn with the rate of two twists per turn. It doubles the twisting speed than the traditional twisting device.
Specification
Model | AT207 |
Number of spindles | 1 for winding 3 for double twisting |
Grooved drum | O/D82mm Pitch: 2.5×147 |
Take-up package | Cylindrical |
Max. package diameter | ¢280mm |
Max. length setting | 999999-meter, electronic setting |
Drive mode | Motor with adjustable speed |
Max. winding speed | 1100meter/minute |
Yarn-guiding traverse | Standard 147mm |
Power supply | AC220V 50Hz, single-phase |
Details and Features
1 Touch screen control and display;
2 One working position for winding and three working positions for double twisting;
3 Convenient and easy to operate;
Our Company
Packing&Delivery
Package | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
FOB | ||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | |||||
CIF | ||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | |||||
West Union | Amount lower than 5000usd | |||||
Delivery Time | 7~10days after receiving payment for one container | |||||
