Home > Products > Textile Tester > AATCC TM16 Water Cooled Weather Conditions Meter Factory Price
AATCC TM16 Water Cooled Weather Conditions Meter Factory Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description

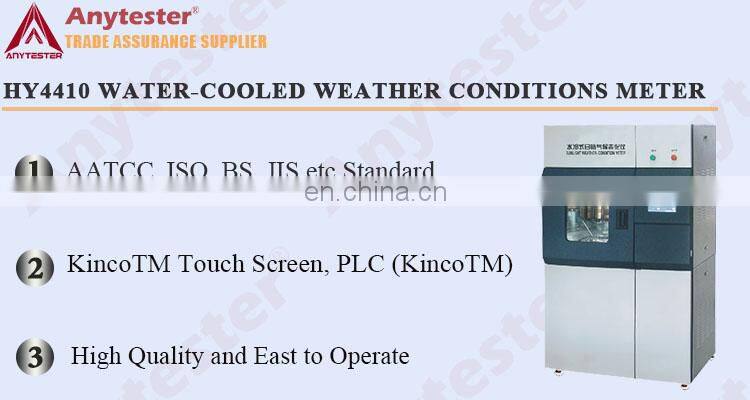

HY4410 Water-cooled Weather Conditions Meter is suit to determine the color fastness and aging to sunlight, weather resistance, compound color fastness to sunlight-sweat of colored textile, leather, leatherette, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab. Be able to control irradiance real-time, automatically inspect and compensate irradiance, temperature, humidity.
Specification
Model | HY4410 |
Lamp power Supply | AC380V±5% 50Hz 9000W(Max) |
Irradiation Source: | 4500W Water-cooled Long Xenon Arc Lamp |
Lamp Life | 1500 hours |
Rack Rotating Speed | 1-4r/min |
Rack Outside Radius | 224mm (Centered on the Xenon-arc Lamp) |
Specimen Holder Exposure Area: | 180×35mm（ISO） 190×50mm（AATCC） |
Specimen Number | 27 pcs（ISO）; 18pcs（AATCC）(Max) |
Exposure Area of Specimen | ≥2800 |
Illumination cycle adjustable | 0~9999h59min, ±1s |
Spray cycle adjustable | 0~9999h59min, ±1s |
Each specimen adjustable timing | 0~9999h59min, ±1s |
Chamber Temperature Range | 25℃～80℃±2℃ |
BPT | RT+10℃～120℃±2℃ |
BST | RT+10℃～130℃±1℃ |
Humidity Range | Light Cycle：10％RH～85％RH ±5% RH |
Dark Cycle：10％RH～98％RH ± 5% RH | |
Irradiance range | Wide Bandwidth: (35～150)±1W/m2@300-400nm |
Narrow Bandwidth: (0.800～3.000)±0.02W/m2 @420nm | |
Or specified by the custom with 340nm, 300~800nm | |
DI water Container | 5000mL |
Floor Space | 1500×3000mm (Min) |
Power Supply | AC380V±5% 50Hz 9000W(Max) |
Dimensions | 1200×870×2000mm（L×W×H） |
Instrument Weight | 400kg |
Details & Features
★Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc;
★Touch screen, and build-in PLC, real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them;
★KincoTM touch screen, and build-in PLC (KincoTM), real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them.
★4500W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
★Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
★Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
★Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
★Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
★Custom program capability and storage for additional user-defined tests.
★De-ionized water system to ensure purity of cooling water and spray water.
★Each specimen holder has time recorder respectively. Ease to test different specimen in one test.
★Multi-point inspection: malfunction alarm, self-diagnostic function, ease to maintenance.
★Print the test result chart by stylus printer directly. No need support of PC.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 1400*900*1600mm | |
Weight | 200kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
