Laboratotry Carding Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Application

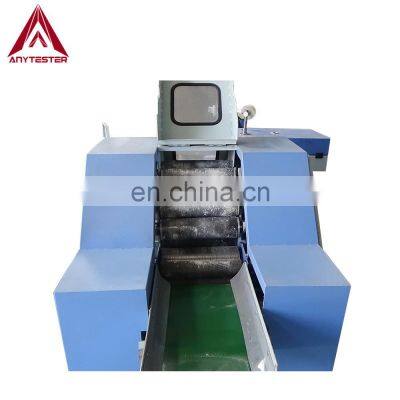

AT202 Laboratory Carding Machine
AT202 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between deferentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Features
★ Imported frequency converter control, high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for wool fiber or chemical fibers.
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web
★ It can produce web or sliver according to customer’s selection.
★ It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.
★ With full-closed protective cover.
★ Two rollers feeding.
★ The main engine has a 6 pole 1.1 KW motor to drive, an electric control box controls, and with a totally enclosed protective cover.
Technical specification
Model |
AT202 |
Feed in width |
400mm |
Working width |
360mm |
Max. fiber length |
about 100mm |
Output |
Sliver (web is optional) |
Cylinder diameter |
Φ450mm |
Doffer diameter |
Φ220mm |
Licker-in diameter |
Φ165mm |
Working roll diameter |
Φ110mm |
Wipe roll diameter |
Φ90mm |
Cylinder clothing |
AC3510*2110 |
Doffer clothing |
AD4335*2110 |
Working roll clothing |
BW204 |
Wipe roll clothing |
BT-203 |
Licker-in clothing |
1.09*4.5T |
Carding motor |
1.5kw, speed adjustable (Frequency converter control) |
Villus bucket power |
1.5KW (optional) |
Output capacity |
5~10kg/h |
Maine machine power |
AC220V/380V, 50/60Hz, 2.2KW |
Dimension
|
1350mm*950mm*900mm (main machine) |
900mm*900mm*1200mm (villus bucket) |
|
2300mm*115mm*110mm(package) |
|
Net Weight |
550kg (including the hopper) |
Gross weight |
650Kg (including the hopper) |
Our Company
Packing & Delivery
Packaging |
||
Packaging Details
|
1.The equipment is covered with film to protect it from water vapour during the trip. |
|
Packaging Details |
2.The box is filled with foam to protect the equipment from impact. |
|
3.Exported wooden box made from plywood,don't need fumigated. |
||
Payment
Payment Terms |
T/T |
EXW |
30%T/T in advance,paid the balance before shipment |
||
FOB |
|||||
CFR(C&R) |
30%T/T in advance,paid the balance agaist copy of b/l |
||||
CIF |
|||||
L/C |
L/C amount above 5000usd,we can accept L/C at sight |
||||
West Union |
Amount lower than 500 usd |
||||
West Uniom |
|||||
Delivery Time |
30 days after recieving payment for one cotainer |
||||
