Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Printing, Dyeing and Finishing Machinery > Factory Price Laboratory Fabric Infrared Dyeing Machine in Stock
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Fabric Bundesmann Water Repellence Tester With 4 Test CupsNegotiableMOQ: 1 -
ASTM C131 Los Angeles Splitter Abrasion Testing MachineNegotiableMOQ: 1
-
Small Blowing Fiber Opening Machine With FanNegotiableMOQ: 1
-
Electronic Yarn Twist TesterNegotiableMOQ: 1
-
Laboratotry Carding MachineNegotiableMOQ: 1
Product Description

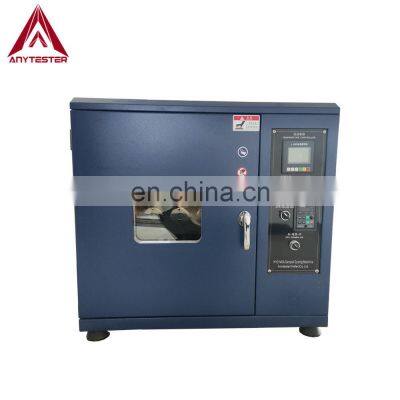

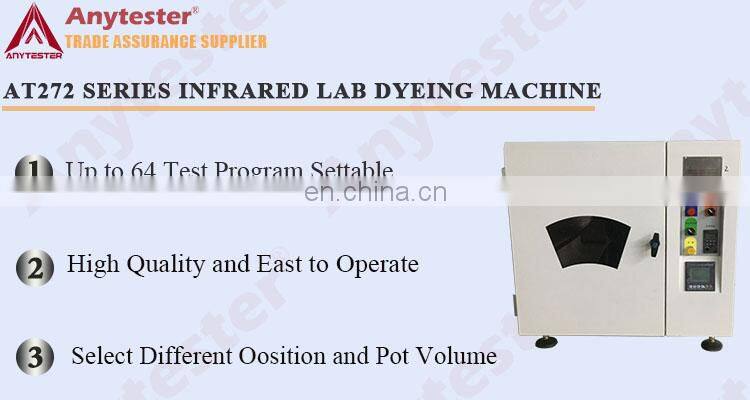

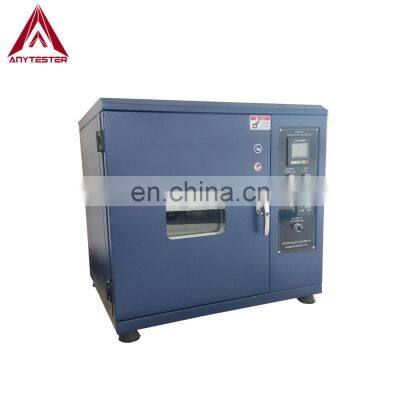

AT272 Series Infrared Lab Dyeing Machine (original model HY0140) is the newest infrared lab dyeing machine. It combines the advantages of common infrared machines and high temperature glycerol machines; also it overcomes their deficiencies of large material consumption and pollution.
Specification
Model | AT272 Series |
Dyeing pot numbers | 12, 16, 18, 24 selectable |
Dyeing pot volume | 200ml, 300ml, 350ml, 450ml,500ml selectable |
Temperature range | RT.~ 140oC |
Max. heating rate | 5oC/min |
Temperature accuracy | ±0.5 |
Liquor ratio | 1:5 ~ 1:100 |
Rotation speed | 0 ~ 60 rpm |
Heating system | Infrared |
Cooling system | Air |
Power supply | 220V, 50Hz, |
Dimensions | 660*680*780mm |
Weight | 120kg |
Details & Features
★ Intelligent design for chemical lid, easy to add dose chemicals during the dyeing process without opening the lid (optional)
★ Equipped with a programmable intelligent computer control
★ Up to 64 test program settable
★ Adopt solid state relay to control temperature, makes it more accuracy and uniform
★ It use infrared heating system which is low power consumption, no smoking pollution and loss of glycerol, it has good thermal insulation effect and is effective in saving energy and costs.
★ 360o tumbling rotation make the dyeing more uniform and is widely used for all fabric
★ It used air cooling system without using water and cut down the cost.
★ It can work at different liquor ratio from 1:5 to 1:100. It can be matched with spray dyeing machine.
★ The body is made of stainless, good appearance and durable.
★ Different working position and dyeing pot volume selectable.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 660*680*780mm | |
Weight | 120kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
