Textile Laboratory Roving Machine
- T/T Credit Card
You May Like
Product Description

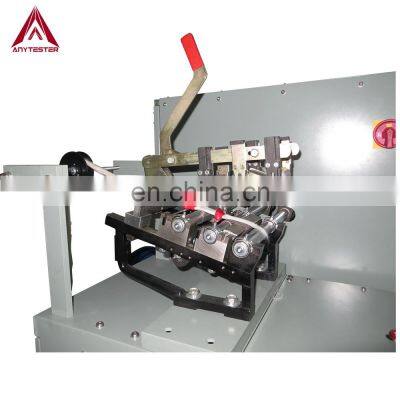

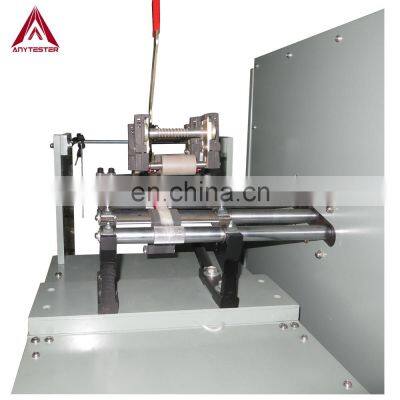

AT205 Laboratory Roving Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to make roving from sliver. And in the same time, insert the twist into the roving and then winding the twisting roving on bobbin.
1. Imported frequency converter control, high efficiency.
2. Mini type machine, save researching cost and easy to operate and maintain
3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.
4. Can be used for cotton fiber or wool fiber (alternative)with different machine parts
|
Model |
HY1005 Laboratory Roving Machine |
|
Spindle number |
1 |
|
Fiber type |
Cotton or wool (alternative) |
|
Twisting range |
50-250 twist/m |
|
Drafting range |
Approx. 2~50 |
|
Fiber length |
22 ~ 42 mm or customized |
|
Output capacity |
0.25 ~ 1 kg per hour or customized |
|
Roller diameter |
Φ28/25/28mm |
|
Output speed |
Approx. 12m/min |
|
Spindle flyer speed |
600rpm |
|
Can size |
Φ250*550mm |
|
Power |
220V/380V, 50/60Hz, 700W |
|
Dimension |
1000*800*1600mm |
