Small Lab Mini Lab Drawing Machine for Worsted And Semi-worsted Wool
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Small Lab Use Mini Wool And Cotton Carder With 5~10 KG Capacity
-
Small Lab Yarn Ring Spinning Machine for Teaching And Researching Use
-
Semi-automatic Sample Weaving Machine for Yarn Testing
-
Laboratory Small Mini Wool And Cotton Roving Machine With Single|2 Head
-
Laboratory Roving Machine With 2 Spindles
-
Small Lab Wool Carding Machine With 5`10 Kg Capacity
Product Description
Product Description

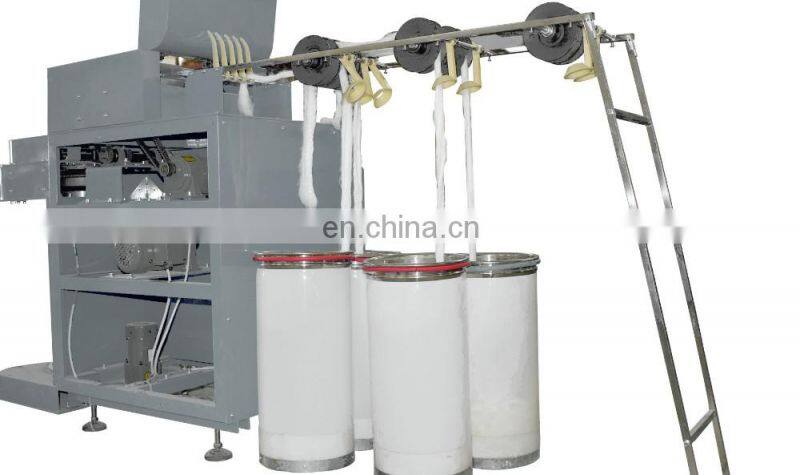

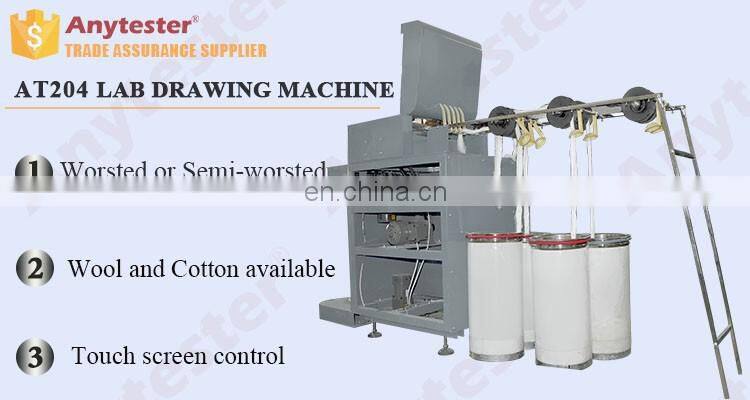

AT204 Laboratory Drawing frame is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT204 Laboratory drawing frame is used to make drawn sliver from carded sliver.
Features
Easy to operate
Touch screen & PLC control;

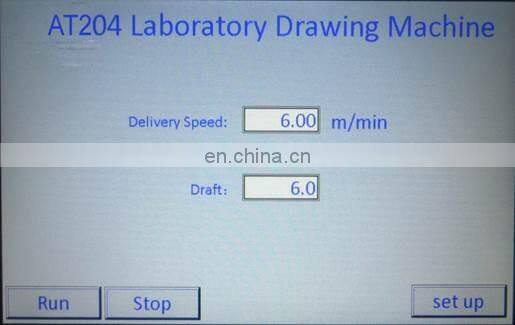

Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
Skilled Design
Frequency converter of high efficiency to control roll speed;

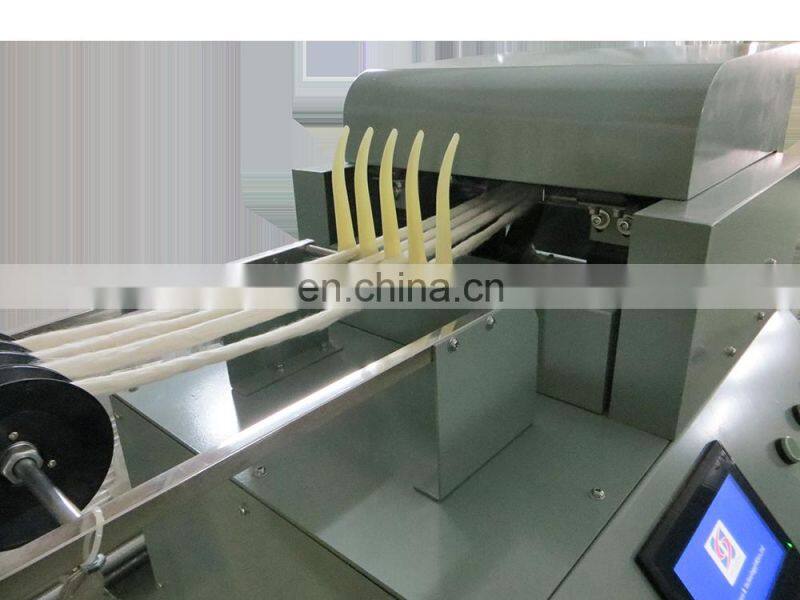

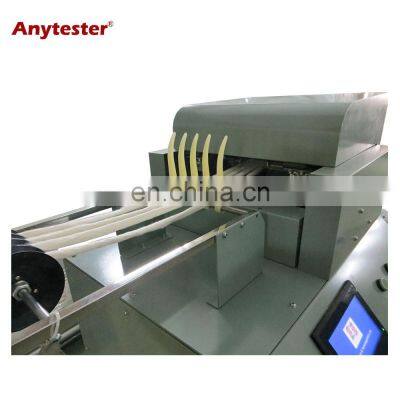

Doubling up to 8 slivers;

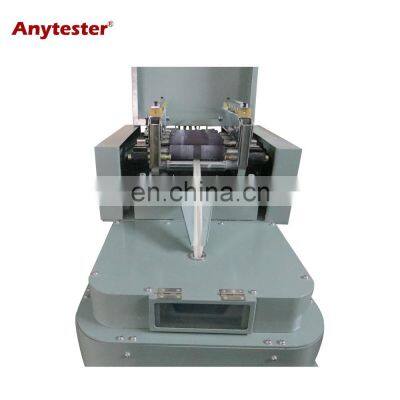

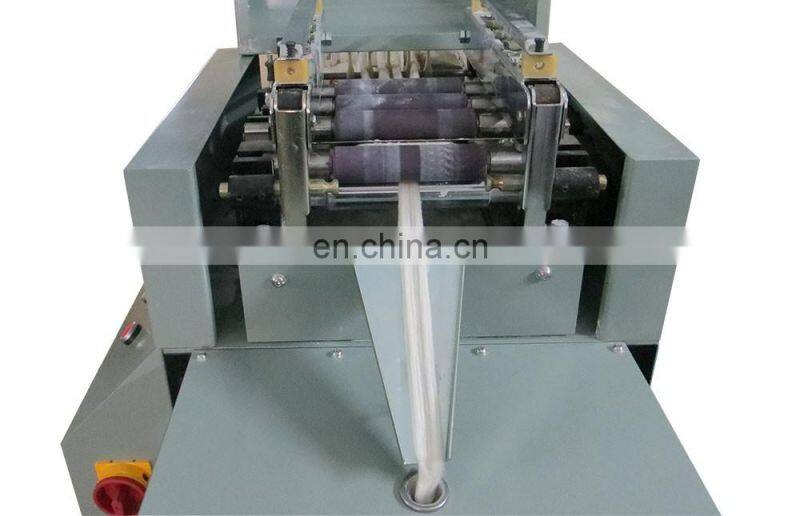

Four-up-four down drafting structure;
Can coiler to output and coil cotton sliver in sliver can;
Specification
Model | AT204 | ||||
Fiber type | Cotton or cotton-type chemical fiber;Customized for wool | ||||
Doubling | Up to 8 | ||||
Feed type | Sliver | ||||
Output type | Sliver | ||||
Sliver speed | 2, 4, 6, 8, 10, 12, 14, 16m/min, selectable | ||||
Roll diameter | ¢35mm | ||||
Drafting type | 4-roll, 3 straight line drawing | ||||
Drafting structure | 4-up-4-down | ||||
Drafting range | 2~30 | ||||
Doubling range | Up to 8 | ||||
Pressurizing method | Spring pressure cradle | ||||
Output capacity | 0.25~1kg/h, adjustable | ||||
Sliver can size | Φ250×550mm | ||||
Control mode | Touch screen & PLC control | ||||
Power supply | AC220V 50Hz, 650W | ||||
Dimensions | 1300×800×1750mm (L×D×H) | ||||
Weight | 400kg | ||||
Packing & Delivery
PACKAGE | ||
Size(cm) | 130 (L) * 80 (W) * 145 (D) | |
Weight | 400 Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Contacting us
ERIC QIN | ||
Website | ||
Mobile Phone | +86 188 5510 5986 | |
Whatsapp | +86 188 5510 5986 | |
Skype | eric-qlk | |
Wechat | +86 188 5510 5986 | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
