Lab Scale Carbon-Polymer Fiber Melt Spinning Machine up to 450 Degree

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Application.

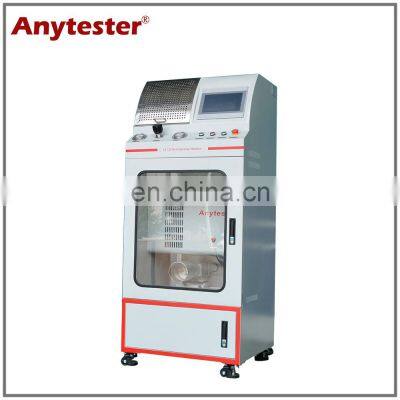

AT225 Laboratory Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling.

Model		AT225
Pressure range		Design pressure: 3.6MPa Input pressure: ≤13MPa, Output pressure: ≤1.6MPa, accuracy: ±0.01MPa
Temperature range		450℃ max.
Temperature accuracy		±0.5℃
Heating mode		Two sections of heating furnace, Mullite fiber insulation
Temperature control mode		Two pieces of temperature controller, high precision of ±0.5℃
Feed cylinder		150ml, stainless steel, with soaking distribution device
Spinneret plate		Dia. 0.2, 0.3, 0.4, 0.5 optional L: D: 2:1~3:1 optional kinds of hole optional (please specify before order)
Rotary head		Friction driven rotary head
Speed range		0~1400 RPM
Winder Dia.		200 mm or adjusted
Max. Winder dia.		320mm
Rotary head		Friction driven rotary head
Power supply		AC110V, 50Hz
Weights		260 kg
Dimension		7307201685

Details & Features

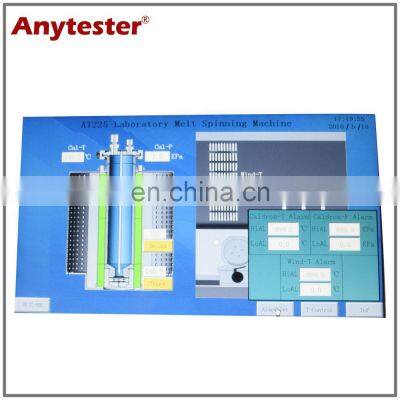

Touch Screen Control

> Large LCD display

> Touch screen control make the operation simple

> English and Chinese language selectable

Modularization Design

> Three section heat area，control individually.

> Interior of machine equip with lighting device.

> electric fan cooling system

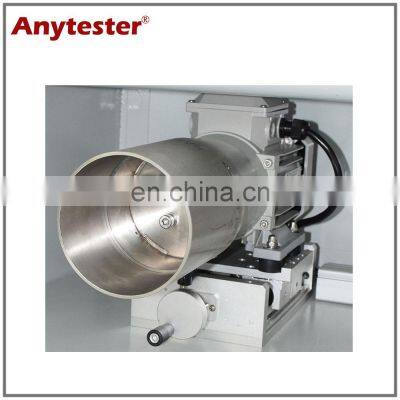

Removable Winder

> will able to replace the winder by new one with different Diameter.

> Rotate Speed adjustable to make fiber with different fineness.

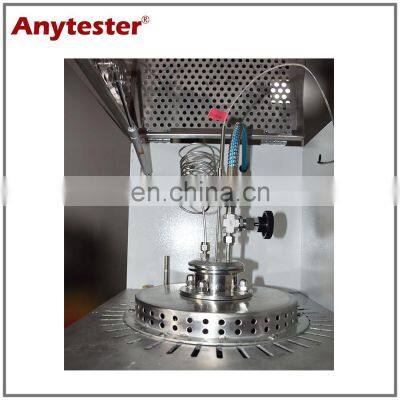

316L Feed Cylinder

> High quality 316L stainless steel make the machine long life
> 150 ml standard tank volume

> Able to accommodate 10~100 g raw material

Sample after test

> Be suitable for researching carbon fiber，PET, kinds of polymer， etc.

>10 g sample can spinning 100 minutes

>For 0.15mm spinnret hole, finished fiber with 5~15 um dia.

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications

Packing & Delivery

Packaging
Size(cm)	73 (L) * 72 (W) * 168.5 (D)
Weight	260 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
