Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine

Anytester (hefei) Co., Ltd.
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine thumbnail-1
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine thumbnail-2
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine thumbnail-3
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine thumbnail-4
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine thumbnail-5
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine photo-1
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine photo-2
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine photo-3
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine photo-4
Wool and Cotton Small Mini 6 Spindles Lab Ring Spinning Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

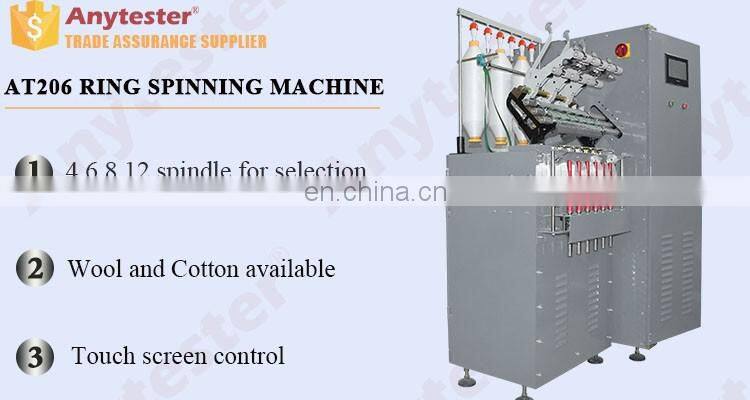

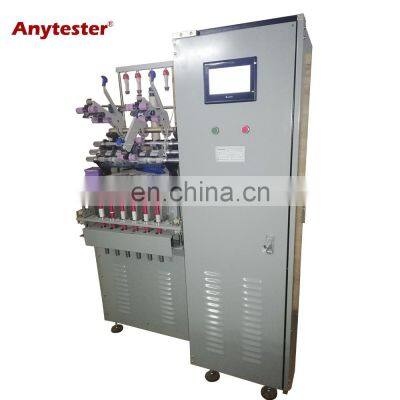

AT206 Laboratory Ring Spinning Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT206 Laboratory Ring Spinning Machine is used to spin yarn from roving by ring spinning method.

Features

Easy to operate

Touch screen & PLC control;

Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;

Frequency converter of high efficiency to control roll speed

Skilled Design

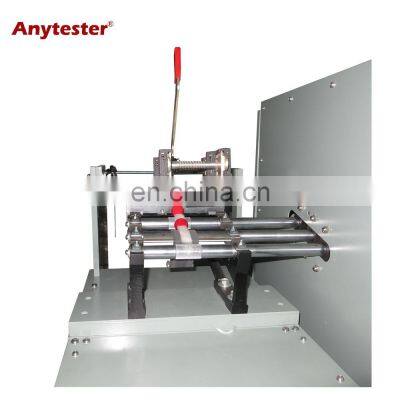

Pressurizing system :spring pressure cradle

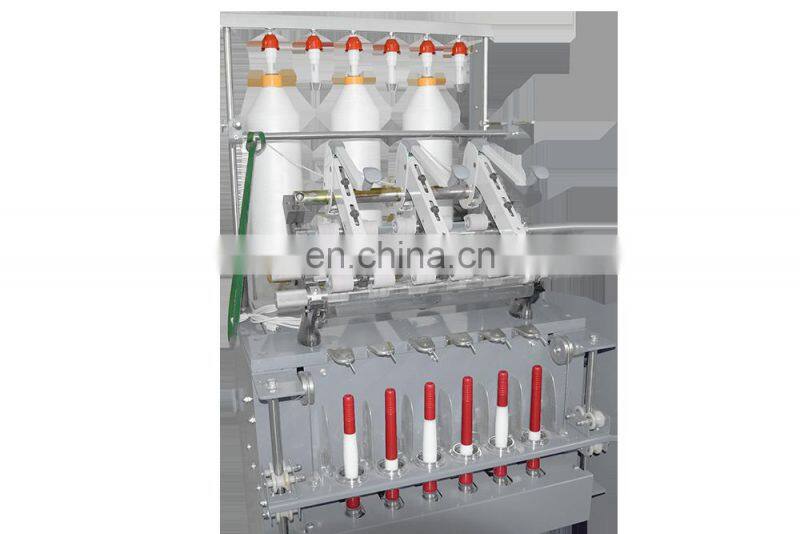

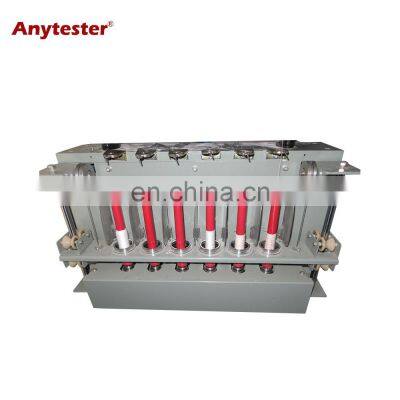

Three-up-three-down drafting structure


Specification
Model
AT206
Number of spindles
6
Fiber type
Cotton or cotton-type chemical fibers
Twist range
Customized for wool
Draft range
50~250twists/meter
Output capacity
Approx. 2~50
Roll diameter
0.25~0.5kg/h
Ring diameter
¢25mm
Spindle speed
Φ38 ~ 45mm
Twist direction
Max. 12000rpm
Power supply
Z or S, settable
Packing & Delivery
Packaging
Size(cm)
130 (L) * 90 (W) * 180 (H)
Weight
400 Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Related Products
Contacting us
Lily Cheng
Website

Mobile Phone
+86 180 5517 3820
Whatsapp
+86 180 5517 3820
Skype
1933039910@qq.com
Wechat
+86 180 5517 3820
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
Our Company

History

Since 1982 with more than 20 years' experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product
