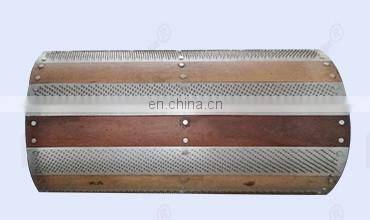

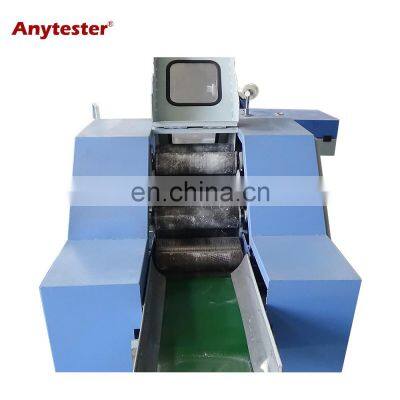

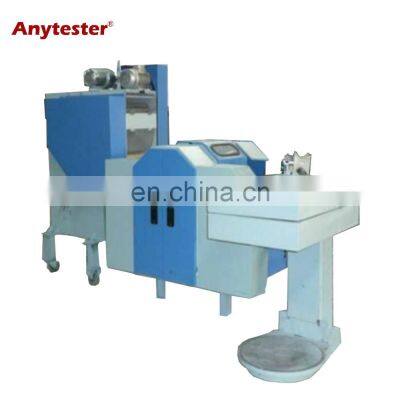

HY1002 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differential moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Specifications | ||||||
Feeding width | 400mm | |||||
Working width | 360mm | |||||
Cylinder diameter | Φ450mm | |||||
Doffer diameter | Φ220mm | |||||
Licker-in diameter | Φ165mm | |||||
Working roll diameter | Φ110mm | |||||
Wipe roll diameter | Φ90mm | |||||
Speed | Adjustable (Frequency converter control) | |||||
Max. fiber length | about 100mm | |||||
Villus bucket power | 1.5KW | |||||
Output capacity | 5~10kg/h | |||||
Maine machine power | AC220V/380V, 50/60Hz, 2.2KW | |||||
Dimension | 1350mm*950mm*900mm (main machine) | |||||
Weight | 650Kg | |||||

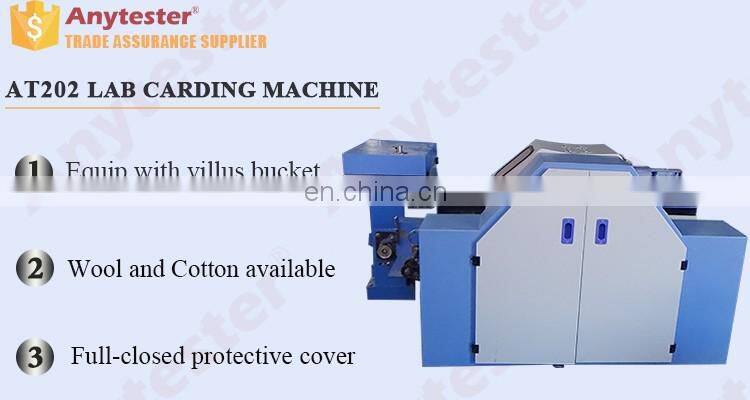

★ Mini type machine, save researching cost and easy to operate and maintain
★ With full-closed protective cover.
★ Imported frequency converter control, high efficiency.

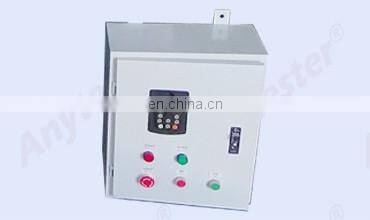

★ It is driven by a 2.2 kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.
★ Can be used for wool fiber or chemical fibers.
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web

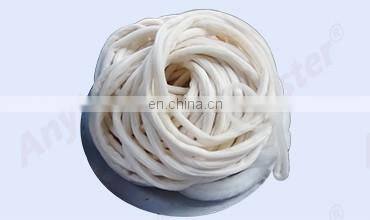

★ It can produce web or sliver according to customer's selection.
Packaging | ||
Size(cm) | 180(L) * 110 (W) * 110 (D) | |
Weight | 650 Kg | |

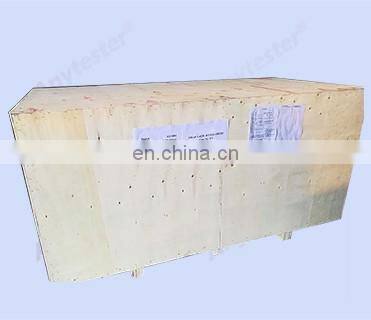

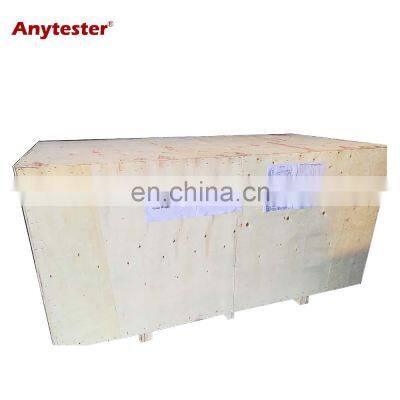

Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
ERIC QIN | ||
Website | ||
Mobile Phone | +86 188 5510 5986 | |
Whatsapp | +86 188 5510 5986 | |
Skype | eric-qlk | |
Wechat | +86 188 5510 5986 | |
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
