Laboratory Drawing Frame | mini drawing machine
- T/T Credit Card
You May Like
Product Description

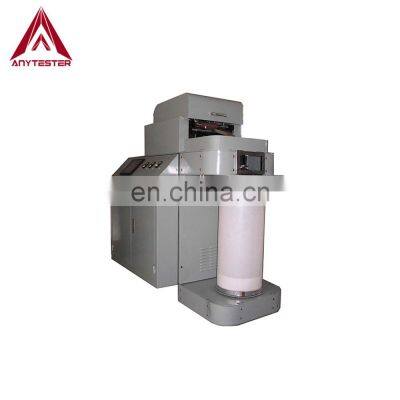

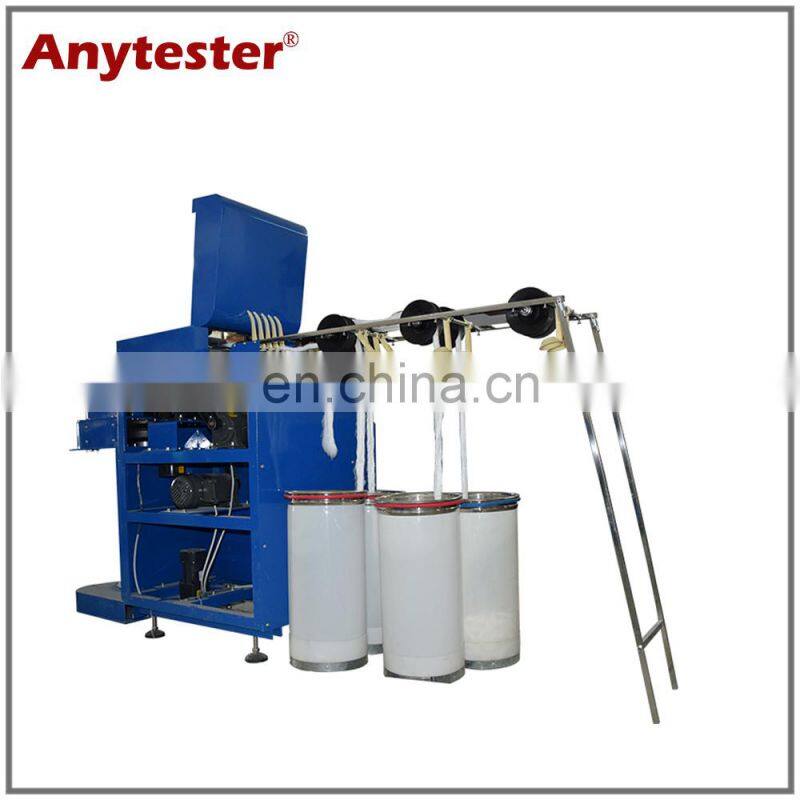

HY1004 Laboratory Drawing Frame is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to attenuate and straighten fibers by having them pass, in sliver form, through a series of double rollers, each pair of which revolves at a slightly greater speed than the preceding pair and reduce the number of strands originally fed into the machine to one extended fibrous strand doubled or redoubled in length.
1. Laboratory Drawing Frame adopted imported frequency converter control, high efficiency.
2. Mini type machine, save researching cost and easy to operate and maintain
3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.
4. Can be used for cotton fiber or wool fiber (alternative)with different machine parts
|
Model |
HY1004 Laboratory Drawing Frame |
|
Fiber type |
Cotton or wool (alternative) |
|
Draw structure |
3 up and 3 down |
|
Draw ratio |
Approx. 2~10 |
|
Fiber length |
22 ~ 64 mm or customized |
|
Output capacity |
0.25 ~ 1 kg per hour or customized |
|
Roller diameter |
Φ35mm |
|
Output speed |
Approx. 12m/min |
|
Can size |
Φ250*550mm |
|
Power |
220V/380V, 50/60Hz, 950W |
|
Dimension |
1200*800*1200mm |
