Help CenterHIMA K9203
Related Products
Brand: HIMA

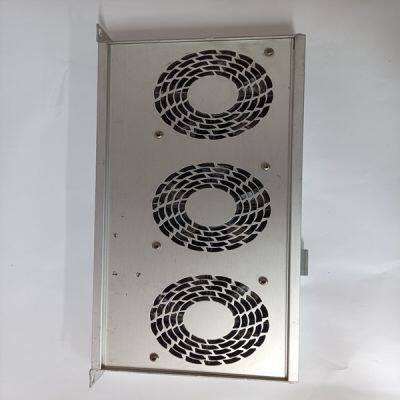

Type:K9203
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
S200 SYNQNET DRIVE Follow the instructions below if you are using one of the following S200 Series Drives: • S20250-SRS, S20260-SRS, S20350-SRS, S20360-SRS, S20330-SRS, S20630-SRS, S20250-SDS, S20260-SDS, S20350-SDS, S20360-SDS, S20330-SDS, S20630-SDS The setup consists of the following steps: 1. MDK and SynqNet Controller Installation 2. S200 Tools Software Installation 3. Hardware Setup 4. S200 Tools Communication Wizard 5. SynqNet Configuration 6. Motor Feedback Configuration 7. Save Options 4.2.1 MDK and SynqNet Controller Installation Before you can use an S200-SynqNet Drive, you must first install the Motion Developer's Kit Software package and SynqNet controller from Motion Engineering Inc. For more information about installation, please see MEI's Technical Support website.
n 2/2008 Quick Start Guides S200 Base/SynqNet Reference Manual M-SM-200-01 C 17 4.2.2 S200 Tools Software Installation Follow the installation instructions from the CD-ROM or zip file. See S200 Tools Software Installation Guide. S200 Tools supports the following Operating Systems: • Windows 2003 Server • Windows XP, All Service Packs - (SP) • Windows 2000, SP2 • Windows XP embedded • Windows NT4, SP6 4.2.3 Hardware Setup 4.2.3.1. DRIVE SETUP NOTE: The drive serial port (J5) is disabled on SynqNet drives. If you are using an S200 SynqNet Drive, you need to establish SynqNet communication link between the S200 SynqNet Drive and the SynqNet motion controller. 1. Plug one end of an Ethernet communications cable to J11 (SynqNet IN) of the S200 drive and the other end to the SynqNet controller's OUT port. 2. One Drive/Node Use another Ethernet communications cable to connect J12 (SynqNet OUT) of the S200 drive to the XMP-SynqNet controller's SynqNet IN port. Multiple Drives/Nodes Connect an Ethernet communications cable from the XMP-SynqNet controller's OUT port to the SynqNet IN port (J11) of the first drive/node. Connect an Ethernet cable from the node's SynqNet OUT port (J12) to the SynqNet IN port (J11) of the next node. Connect another cable from the SynqNet OUT port (J12) of the last node in the topology to the SynqNet IN port of the XMP-SynqNet controller.
SynqNet network, you will only be able to configure the S200 Series Drives with the S200 Tools software. S200 Tools will only communicate with S200 Series Drives. 4.2.3.2. MOTOR SETUP Depending on the type of motor feedback that is used, you will need to use the appropriate feedback connector. Motor Feedback J3 Feedback J14 AUX FB SFD X - SinCos (with Endat 2.1/2.2) - X SinCos (with Halls) - X ComCoder (Incremental + Halls) - X 4.2.4 S200 Tools Communication Wizard 4.2.4.1. LAUNCH S200 TOOLS Launch the S200 Tools program by clicking the desktop icon or from the Windows Start button (Programs > Danaher Motion > S200Tools). The default location for S200Tools.exe, is (C:Program FilesDanaher MotionS200Tools).
