Brand: ABB

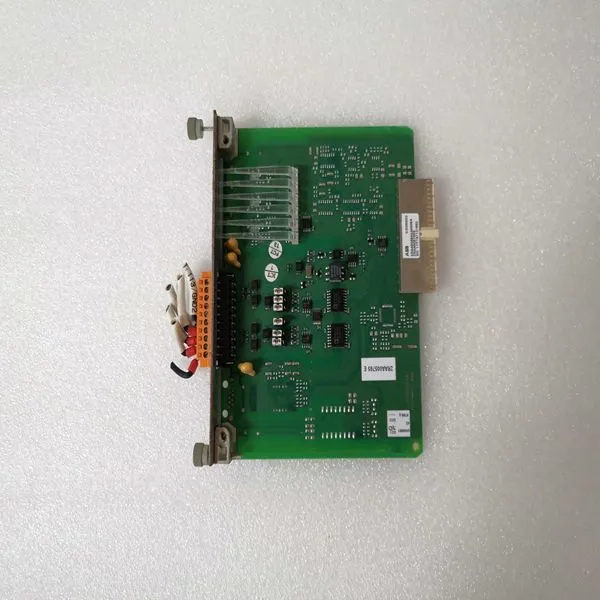

Type:COM0003 2RAA005844A0006A
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
1 S1 position 0 allows setting the non-volatile line count via the drive parameter EncOut to any of the following values: 128, 512, 1024, 2048, 4096, 8192, 16384, 32768 125, 500, 1000, 2000, 2500, 5000, 10000, 20000 The value written replaces the factory default value listed in position 0 of the table. NOTE The emulated encoder output is only available when using SFD feedback to the base unit or a high-resolution feedback device connected to the option card.S1 FUNCTION WITH 6-STEP FEEDBACK In 6-step mode, S1 sets the current loop proportional gain, KIP. Set S1 to the value listed in the table for your drive type and motor inductance. Consult the factory if the motor inductance is lower or higher than what can be accommodated by S1.
An incorrect setting of KIP can cause current loop instability or oscillation potentially resulting in damage to the drive or application.The SynqNet ID switches can be used to help distinguish and differentiate a drive on the network by assigning a unique ID to the drive. To set a SynqNet ID to an S200 drive, turn the S11 LSB (Least Significant Bit) and S12 MSB (Most Significant Bit) switches to a desired letter/number combination. The SynqNet ID can then be read using the following utilities: Motion Console and Version.exe Utility.To finish configuring the S200 to drive a brush motor, set the following parameters using the S200Tools utility. Once configured, the parameters should be saved to non-volatile MEMORY (click the NV Save button). The configuration will then be recalled on drive power up. Refer to Advanced Configuration for detailed descriptions of the parameters. The relevant parameters are listed in the table below. Parameter Value CommMode Brush CommOff 0 Degrees OpMode Torque/Current Or SetupS2-1 with switch S2-1 set to the down position labeled, I on the drive. KIP Set directly with the serial port when S1 is set to position 0. Or Set S1 to the appropriate position for the inductance of the motor be used, refer to S1 Function with 6-Step Feedback. I2TF0 Set to the motor’s thermal time constant. I2TTrip Set to the motor’s continuous current rating. IlmtPlus ILmtMinus Set to the lower of 100% or the percent of the motor’s peak current rating divided by the drives peak current. CmdSrc Selects Analog, PWM, or Command variable for command. CmdGain Sets the command gain for the command input. CmdOffset Sets the command offset for the command input. CMDF0 Sets the filtering on analog input commands. EnInhibitCW EnInhibitCCW Enables the hardware over travel limits.
