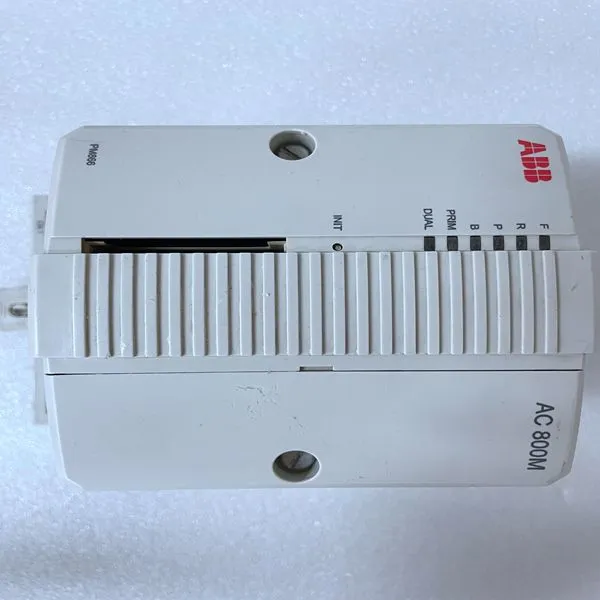

Help CenterPM866K01 3BE050198R1
Related Products
Brand: ABB
Type: PM866K01 3BE050198R1
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
DPoles 0 – 62 Poles (even numbers only) DPoles sets the drive for the appropriate motor pole count. Typically set to match the motor pole count. With a feedback device that has multiple cycles per revolution, DPoles is set to twice the ratio of motor electrical cycles to feedback device electrical cycles per revolution. Setting DPoles to zero turns electronic commutation off. Binary 0 = 0 Poles Binary 1 = 2 Poles ... Binary 31 = 62 Poles WARNING When the DPoles setting does not match the actual motor pole count, the motor's operation will be erratic and could be dangerous. EncOut 125 to 32768 Lines Via Rotary Switch S1, See Chart Supported over SynqNet. Sets the J4-17 to J4-22 emulated encoder output signal’s line count (pulses per revolution) when the EMU setup rotary switch S1 on the base drive is set to position 0. All other settings for rotary switch S1 have fixed line counts. (EncOut * 4) = the number of quadrature counts per revolution. EncOut Line Count EncOut Line Count 0 500 8 8192 1 512 9 10000 2 1000 10 125 3 1024 11 128 4 2000 12 16384 5 2048 13 20000 6 4096 14 Programmable by EncOutPPR Default = 32768 7 5000 15 2500 EncOutPPR 0 to 65535 Lines Supported over SynqNet. Sets an arbitrary emulated encoder output line count, also know as pulses per revolution, for J4-17 to J4-22 outputs. EncOutPPR is only used if the EMU setup switch S1 on the base drive is set to position 0 and the EncOut NV parameter is set to Programmable. Note that if EncOutPPR is set to 0 with EncOut set to programmable the J4-17,18 Z-pulse can be turned off.
A SynqNet master application program can then switch EncOut from 14 to an appropriate other value to enable and disable the Z CH output at the right point in a machine cycle to be used to trigger an action like a camera. EncOutZOffset can be used to position the Z CH OUT pulse a the exact desired position. EncOutZOffset 0 to 65535 Counts Supported over SynqNet. EncOutZOffset sets the location of the emulated encoder marker or Z-pulse on the J4- 17,18 CH Z OUT. Base unit (PosFB – EncOutZOffset) is sent to the decoding logic to make the CH Z OUT so EncOutZOffset allows electronically setting the exact mechanical location for the emulated Z pulse. See diagram for exact phase of the Z-pulse.
