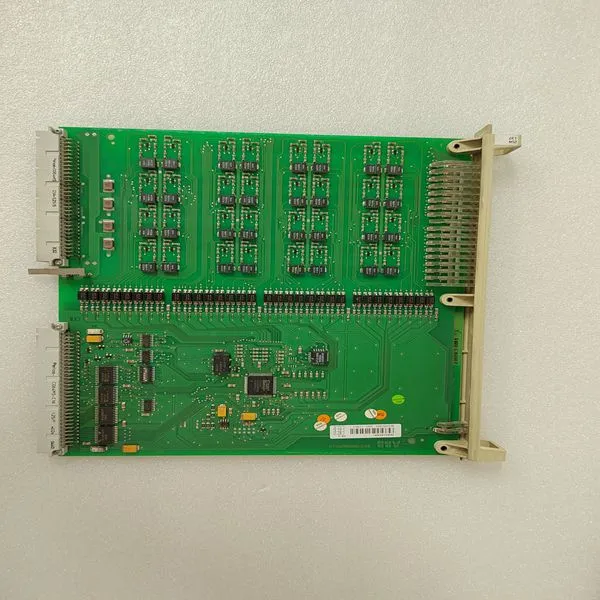

DSDI110AV1 3BSE018295R1

Brand: ABB

Type:DSDI110AV1 3BSE018295R1

Origin: the Swiss

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Auxiliary control is inhibited if a controlled shutdown is selected, the Auxiliary input fails, or the unit shuts down. See Table 5-7. Auxiliary control can be ‘enabled’ but not ‘active’ if the generator and/or utility tie breaker disable features are programmed. Aux will be In Control if the Auxiliary PID is active and limiting the Auxiliary input parameter. MESSAGE 5 MEANING Inhibited Aux is inhibited and is not active Enabled Aux is enabled but generator or tie breaker is open Enabled w/Rmt Setpt Aux is enabled but not active and the Setpt is in Remote control Active w/Rmt Setpt Aux is active but not limiting and the Setpt is in Remote control Active /Not Lmting Aux is active but not limiting the actuator output Control w/Rmt Setpt Aux is in control (limiting) and the Setpt is in Remote control In Control Aux is in control and limiting the actuator output Table 5-7. Auxiliary Messages (if using Aux as a limiter) The following auxiliary control indications are available through the Modbus links: Aux is Enabled, Aux is Active, Aux is In Control, Aux is Inhibited, Aux Active/Not Limiting, Aux Active/Not In Control, and the Aux Input Failed Alarm. In addition to these indications the Aux Setpoint, Aux Input, and Aux PID Output analog values are also available. Relay indications can be programmed to indicate Aux Control Active, Aux Control Enabled, or Aux PID In Control status parameters. Remote AUX Setpoint The Remote Auxiliary Setpoint function is used to allow the Auxiliary setpoint to be remotely positioned by an analog input. When configured to an analog input, this function/input can be enabled by pressing the front panel YES key from the Remote Aux Status screen (screen 3), closing the Remote Aux Setpoint Enable/Disable contact (if programmed), or selecting Remote Aux Enable from either Modbus communications link. Remote Auxiliary Setpoint is disabled by pressing the front panel NO key from the Remote Aux Status screen (screen 3), opening the Remote Aux Control Enable/Disable contact (if programmed), or selecting Remote Aux Disable from either Modbus communications link. See Table 5-8 for all possible Remote Aux control messages. MESSAGE 4 MEANING Disabled Remote Aux Setpoint is not selected Inhibited Remote Aux Setpoint is inhibited and cannot be enabled Enabled Remote Aux Setpoint is enabled but not in control of the Setpt Active Remote Aux Setpoint is in control, Aux PID is not controlling the actuator In Control Remote Aux Setpoint is in control, Aux PID is controlling the actuator Table 5-8. Remote AUX Messages
