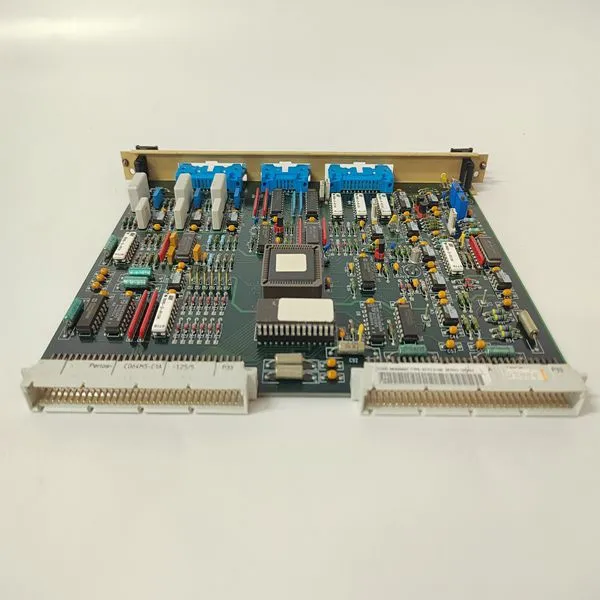

SCYC51020 58052582H

Brand:ABB

Type:SCYC51020 58052582H

Origin:the Swiss

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

DIGITAL REMOTE I/O EXTENSION MODULE BRIEF DESCRIPTION Features Digital I/O extension module • 16 digital inputs 24 V • 16 digital I/O 24 V, individually configurable as an input or an output • CANopen slave complying with CiA DS 401 GENERAL The RDIO digital module is used as a remote extension of the local inputs and outputs (I/O) of a Moog Servo Controller MSC or MSC II. The module is mounted on a DIN top-hat rail and connected to an MSC or MSC II via CAN. canopen INTERFACE The I/Os are accessed via CANopen interface. The RDIO can be extended locally by connecting up to 6 QDIO modules. The I/Os of the QDIO modules are also accessed via CANopen interface of the RDIO. INTERFACE The Moog Axis Control Software (MACS) includes a library with function blocks to interface the RDIO via CANopen. This ensures simple integration into the Moog M3000 control system, e.g. to Moog Servo Controller MSC and MSC II. HARDWARE CONFIGURATION • No modules shall be connected to the left Extensionmodule-Bus (E-Bus) connector of the module • The CAN interface is only accessible via the CAN connectors on the front cover • Up to 6 QDIO modules can be connected to the right E-Bus connector of the module • Several RDIOs can be connected via CAN connector STATUS-LEDs LEDs on the front provide information about the status of each I/O. The arrangement of the LEDs corresponds to the I/O connections

Module Data Digital Remote I/O Extension Module Order number / Designation D137-002-001 / RDIO 16/16-0.5 Types of inputs/outputs Plus switching Interfaces CAN, E-Bus Connection technique Plug-in terminal strips for screwing or clamping Connection of the I/O 3-conductor front wiring Assembly Mounting rail NS 35/7.5 pursuant to EN 50022 (DIN top-hat rail) Status LEDs 1 Status LED per I/O Dimensions W x H x D 124 x 170 x 85.5 (attachment dimension: W = 113/118.5) mm 4.88 x 6.69 x 3.37 (attachment dimension: W = 4.45/4.67) inch Temperature range Operation: 5 °C to 50 °C (41 °F to 122 °F) Storage: -25 °C to 70 °C (-13 °F to 158 °F) Relative air humidity 10 % to 95 % (non-condensing) Standards Interference emission / immunity EN 61000-6-4 / EN 61000-6-2, industrial portion Protection class / protection system III / IP20 Insulation strength IEC 61131-2; test voltage 500 V DC
