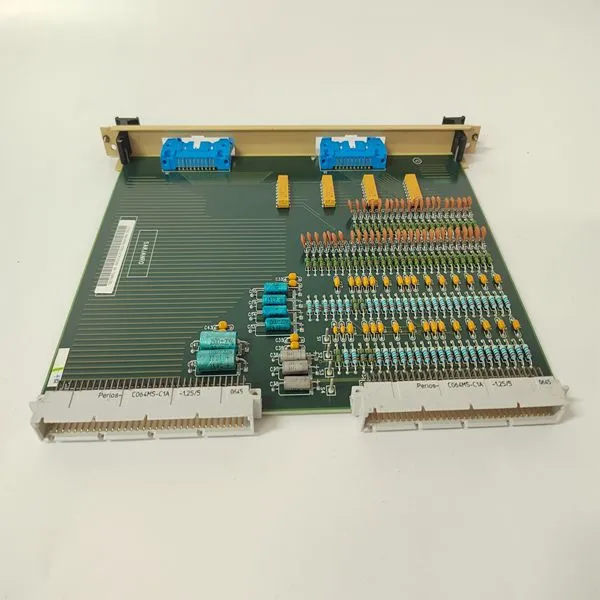

SCYC51090 58053899E

Brand:ABB

Type:SCYC51090 58053899E

Origin:the Swiss

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Accessories Designation Description Order number CPRDISP PC based editor to build menu pages D138-006-001 CAN connection cable, 3 meters / 9.8 foot 9-pole D-sub plug-in connection; pin contacts to jack contacts B95863-001 CAN connection cable, 10 meters / 132.8 foot 9-pole D-sub plug-in connection; pin contacts to jack contacts B95863-002 CAN bus termination resistor 120Ω 9-pole D-sub plug-in connection with jack contacts B95864-001 CAN bus termination resistor 120Ω with grounding 9-pole D-sub plug-in connection with pin contacts; CAN-GND connected to SL/PE B95865-001 RDISP 22 MOOG • Automation System • M3000 33 OPERATOR PANEL TECHNICAL DATA Module Data Operator Panel Order number / Designation D137-004-001 / RDISP 22 Housing Integrated case Dimensions: W x D x H in mm (in.) 196 x 129 x 53 (7.72 x 5.08 x 2.09 in.) (front with plug) Mounting hole: W x D in mm (in.) 187 x 120 (7.36 x 4.72 in.) Temperature range -10 °C to 60 °C (14 °F to 140 °F) Relative air humidity 10 % to 95 % (non-condensing) Standards Interference emission / immunity EN 61000-6-4 / EN 61000-6-2, industrial portion Protection class / protection system III / IP65 front side, IP20 rear side Shock / vibration IEC 60068 Part 2-27 / IEC 60068 Part 2-6 Energy Supply Voltage supply 24 V DC (17-32 V DC) SELV with reverse voltage protection Current consumption at 24 V DC 500 mA max. depending on display brightness Fuse Electronic with automatic reset Connection of power supply 6-pole AMP crimp connector Display Display LCD-Supertwist 240 x 64 points; LED background lighting Number of characters per line max/min 40 / 10 Line height 2-4-8 lines in mm (in.) 14 / 7 / 4 (0.55 / 0.28 / 0.16 in.) Standard character set IBM set 2 and Cyrillic, other characters possible Keys Push buttons Number of keys 22 (including numeric keypad) Key top Aluminum disc behind polyester cover;

secured against vandalism Rear Galvanized steel plate with clamping lid Weight 1.4 kg (3.08 lbs.) Functions Menu structures Tree structure or other structure Contrast and brightness Adjustable using keys and program Character attributes Flashing, normal, and inverse display Programming With PC and CPRDISP editor Value entry Numeric keyboard Variables Up to 104 per page, number of pages typically > 700, only limited by memory size Variable types Binary, integer, fixed point, bit pattern ... and others Memory Flash EEPROM to store texts, images, messages, operating system etc. Interface to PC Editor (CPRDISP) CAN or TIA/EIA 232, TIA/EIA 232 recommended as interface to PC Interface to controller (e.g. MSC, MSC II) CAN or TIA/EIA 232, CANopen recommended as interface to controller Interfaces CAN Galvanic insulation, termination switchable with DIP switch, 9-pin D-Sub connector RS 232 9-pin D-Sub connector Detailed information and integration tips can be obtained from the user manual
