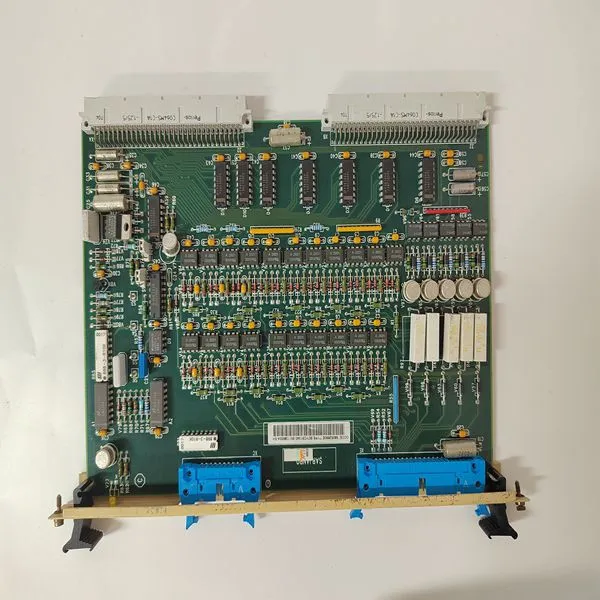

SCYC51040 58052680E

Brand:ABB

Type:SCYC51040 58052680E

Origin:the Swiss

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Energy Supply Voltage supply of module electronics 24 V DC (18-32 V DC) SELV pursuant to DIN EN 60950-1 Current consumption of module electronics Max. 0.15 A Voltage supply of the digital I/O 24 V DC (SELV), divided into 6 groups Current consumption of the digital I/O At U = 24 V DC in idling, max. 300 mA; all digital I/O active, approx. 8 A Potential separation Yes, between CAN and digital I/O Digital Inputs/Outputs Number of inputs 16 Number of inputs/outputs 16, each useable as input or output Output current Max. 0.5 A Short-circuit / reverse polarity protection Yes / yes, all digital outputs Accessories Connectors (six 18-poled are needed per module) Designation Description Order number Screw terminal, 18-pole Up to max. conductor cross-section of 2.5 mm2 (14 AWG) VK055-018 Spring-power clamp, 18-pole Up to max. conductor cross-section of 2.5 mm2 (14 AWG) B95907-018 CAN connection cable, 3 meters / 9.8 foot 9-pole D-sub plug-in connection; pin contacts to jack contacts B95863-001 CAN connection cable, 10 meters / 32.8 foot 9-pole D-sub plug-in connection; pin contacts to jack contacts B95863-002 CAN bus termination resistor 120Ω 9-pole D-sub plug-in connection with jack contacts B95864-001 CAN bus termination resistor 120Ω with grounding 9-pole D-sub plug-in connection with pin contacts; CAN-GND connected to SL/PE B95865-001 Detailed information and integration tips can be obtained from the user manual.GENERAL The operator panel RDISP 22 is designed for supervision and control of machines and processes. Its main advantage is the easy and fast creation of visualization screens with text and graphical elements and visualization structures. IMAGES AND MESSAGES The RDISP22 offers the display types ’images’ and ´messages’. They can be activated independently. • Images: Images are graphical elements (pictograms, BMP files), in which text and variables are displayed both numerically and graphically or as bar charts or as X/Y charts. A menu structure out of different images can be defined by the programmer. An image can be selected by an image number or via a menu structure by using keys • Messages: Messages can be inserted into a page in addition as texts with variables. Messages are activated by using the message number DISPLAY The LCD display with graphics capabilities permits optimum graphical display of your visualization solution. Up to 8 x 40, 4 x 20, 2 x 10 characters per page and any combination of these, pictograms and graphical display images in BMP format can be displayed. Contrast and brightness can be adjusted via the program or keys.

 LABELING The function keys can be labeled freely. This is done by using strips of paper and inserting them between the keys and the front cover. PROGRAMMING Programming is carried out on the PC via an user friendly editor. Easy operation enables clear and quick implementation. Programming of menus, menu structures, message texts and multi-language display is easy to achieve with the CPRDISP PC editor. MEMORY All data (parameters, images and messages) are stored in the maintenance-free flash memory. INTERFACE The Moog Axis Control Software (MACS) includes a library with function blocks to interface the RDISP via CANopen. This ensures simple integration into the Moog M3000 control system, e.g. to Moog Servo Controller MSC or MSC II.
