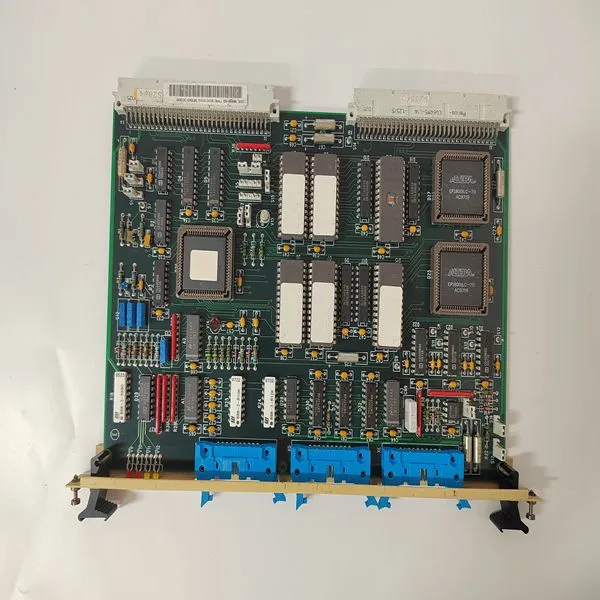

SCYC51010 58052515G

Brand:ABB

Type:SCYC51010 58052515G

Origin:the Swiss

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

TECHNICAL DATA Module Data QEBUS-CAN Extension Module Designation QEBUS-CAN Order number D137-001-010 Connection to M3000 modules Via Q-connector Connection technology Optional CAN power supply: plug-in terminal strip for screwing or clamping, CAN bus: 2 D-Sub connections Installation Mounting rail NS 35/7.5 according to EN 50022 (DIN top-hat rail) Dimensions W x Hx D 65 x 170 x 85.5 (attachment dimension W = 59.5) mm 2.55 x 6.69 x 3.37 (attachment dimension W = 2.34) inch Temperature range +5 °C (+41 °F) to +55 °C (+131 °F) (operation) and -25 °C (-13 °F) to +70 °C (+158 °F) (storage).

Mean temperature during operation over 24 hours: max. 50 °C (+122 °F) Relative humidity 10% to 95% (non-condensing) Operating height Max. 2000 m (6500 feet); storage/transport: max. 3000 m (9800 feet) Standards Operational equipment demands and examinations IEC 61131-2 Interference emission / immunity EN 61000-6-4 / EN 6100-6-2, industrial range Shock / vibration IEC 60068 Part 2-27 / IEC 60068 Part 2-6 Protection class / protection system III / IP20 Insulation strength IEC 61131-2; test voltage 500 V DC Energy supply Voltage supply of module electronics None (passive module) Interfaces Q-connector Contains the LocalCAN bus of the MSC ; E-bus is not passed through the module LocalCAN Bus 2 D-Sub connections (these are connected internally); 120Ω termination resistor can be connected / disconnected with jumper J3 Accessories Plug-in terminal strip (1 piece per module) Designation Description Order number Screw terminal, 2-pole Up to max. conductor cross-section of 2.5 mm2 (14 AWG) VK055-002 Spring-power clamp, 2-pole Up to max. conductor cross-section of 2.5 mm2 (14 AWG) B95907-002 CAN connection cable, 3 meters / 9.8 feet One side: 9-pole D-Sub plug-in connector with pin contacts (to DIN 41652) Other side: 9-pole D-Sub plug-in connector with jack contacts (to DIN 41652) B95863-001 CAN connection cable, 10 meters / 32.8 feet One side: 9-pole D-Sub plug-in connector with pin contacts (to DIN 41652) Other side: 9-pole D-Sub plug-in connector with jack contacts (to DIN 41652) B95863-002 Detailed information and integration tips can be obtained from the user manual
