1000N 2000N 3000N 4000N 5000N Electronic Digital Display Torquemeter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
20nm -500nm Lab Digital Torque Wrench Calibration Tester System
-
Textile Yarn Analogue Belt Tension Gauge Meter
-
Lab Torque Wrench Calibration Equipment Torque Wrench Calibrator
-
Vertical 500N Manual Test Stand Screw Button Pull Force Test Stand
-
Manual Horizontal 500N Force Test Stand for Force Gauge
-
3000N Digital Elevator Wire Rope Tension Meter
Product Description
Product Description
electronic Digital display Torquemeter
Product introduction：
Digital display torquemeter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of torque. It main used in testing and calibrating various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force, parts torsion destructive testing etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Main features
1.High precision, high resolution, quick sampling speed, full-screen display.
2.Adopting high precision torque sensor, with torque direction display.
3.Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4.Three units can be switched each other (N·m、kgf·cm、Ib·in).
5.Real-time, peak, automatic peak three models of optional switch.
6.Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7.Peak holding, remove automatically function, remove time to set freely.
8.Large storage, can save 99 groups of test data.
9.Without automatic shutdown function, time can be set freely.
Product Structure

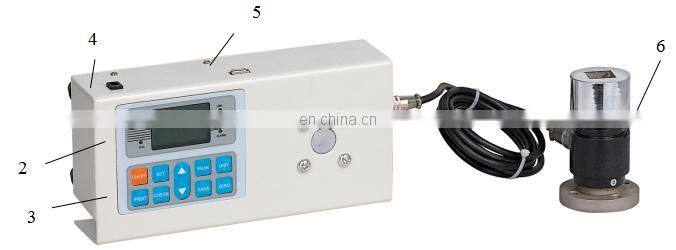

Without Printer
1, LCD
2, Indicating lamp
3, Function keys
4, Power socket

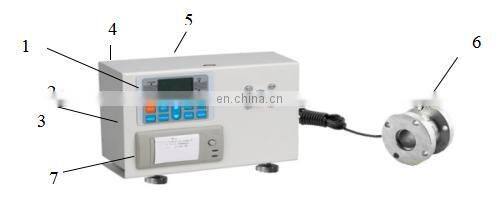

With printer
5, Communication interface
6, Torque sensor
7, Printer
Specification
Type Index | With printer | NNL-1000P | NNL-2000P | NNL-3000P | NNL-5000P | ||||
No printer | NNL-1000 | NNL-2000 | NNL-3000 | NNL-5000 | |||||
Measuring range / Division value | N·m | 1000.0/0.1 | 2000.0/0.1 | 3000.0/0.1 | 5000.0/0.1 | ||||
Kg·cm | 10210/1 | 20420/1 | 30630/1 | 51051/1 | |||||
Ib·in | 88622/1 | 17724/1 | 26586/1 | 44311/1 | |||||
Precision | ±1% | ||||||||
Peak Value Sampling Frequency | 2000HZ | ||||||||
Power | 8.4V 1.2VX7 Ni-MH Battery group | ||||||||
Charging Time | 4～6 Hours | ||||||||
Continuous using time of battery | About 10 Hours | ||||||||
Battery life | ≥300 times | ||||||||
Size | With printer：Host display part 230mm×95mm×180mm No printer：Host display part 230mm×70mm×125mm | ||||||||
Net Weight | With printer：36KG No printer：34KG | ||||||||
Power adapter | Input：AC 220V 50HZ Output：DC 10V 300mA | ||||||||
