Product Description

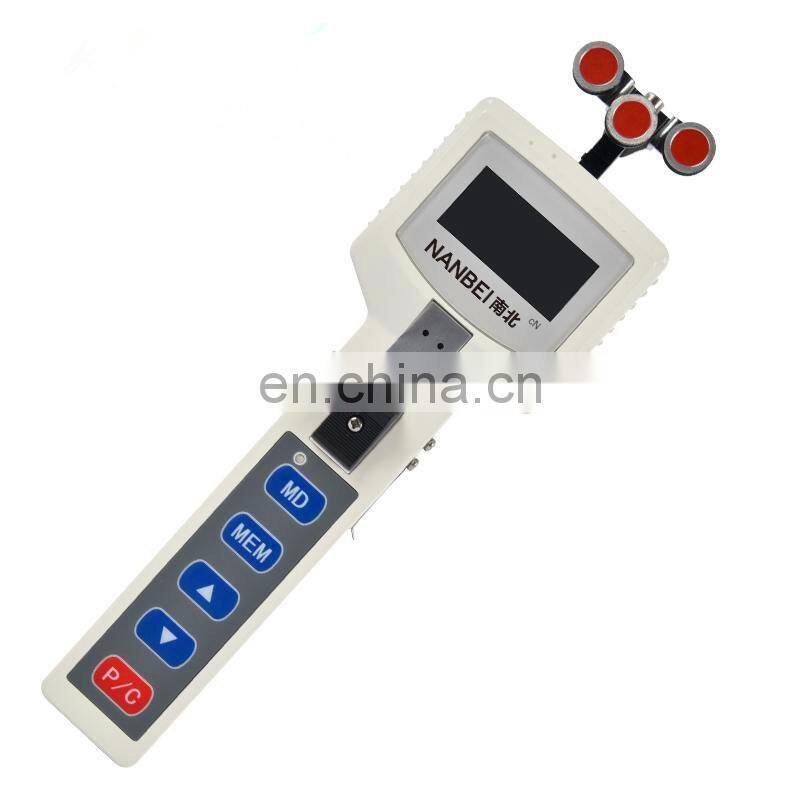

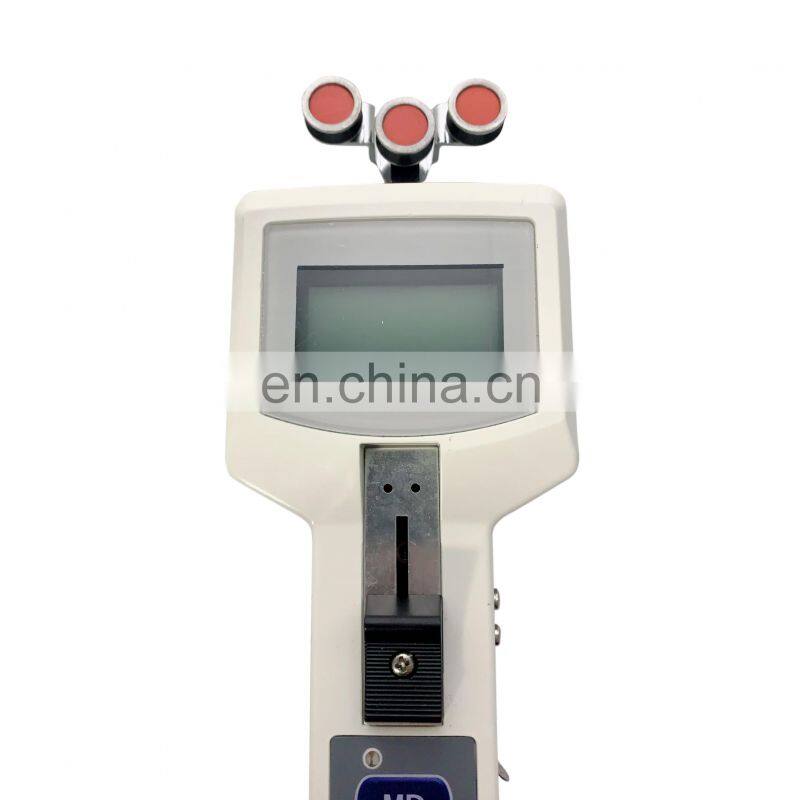

NZSH Handheld Digital Tension Meter
I.Introduction
1.1Main use and scope of application
NZSH handheld digital tension meter is a portable electronic digital measuring instrument. It can measure the tension force of filamentou, linear material,widely used in wire and cable,tensile chemical fiber ,metal wire,carbon fiber and other industries. It can measure the tension force and process data accurately.
Product features
1.The three working mode: real-time, hold and peak. The three mode can be switch into each other .
2.cN, gf, OZ, Kgf, N, lb can be set.
3.Accuracy is 0.5% of full scale.
4.It can measure the tension of 10 different materials accurately.
5.With USB communication function.
6.has thickness adjustment function.
7.Easy to store, can store 41 group data.
Specification
Model | NZSH-200cN | NZSH-500cN | NZSH-1000cN | NZSH-2000cN | NZSH-2500cN | NZSH-5000cN | NZSH-100N | ||||||
Tension range | 4~200.0（cN） | 10~500.0（cN） | 20~1000（cN） | 40~2000（cN） | 50~2500（cN） | 100~5000 （cN） | 2~100N | ||||||
* Measuring head width (mm) | 65 | 65 | 65 | 65 | 116 | 116 | 116 | ||||||
** Calibration material textile PA monofilament | φ0.12mm | φ0.12~0.20mm | φ0.20~0.40mm | φ0.40~0.70mm | φ0.40~0.70mm | φ0.60~1.20mm | φ0.80~1.40mm | ||||||
Size (mm) | 270*118*55 | ||||||||||||
Net weight (g) | About 640g | ||||||||||||
Power supply | 3.7V lithium battery*2 | ||||||||||||
Note | 1CN=1.02g=0.01N 100N=10.2kg=10000cN | ||||||||||||

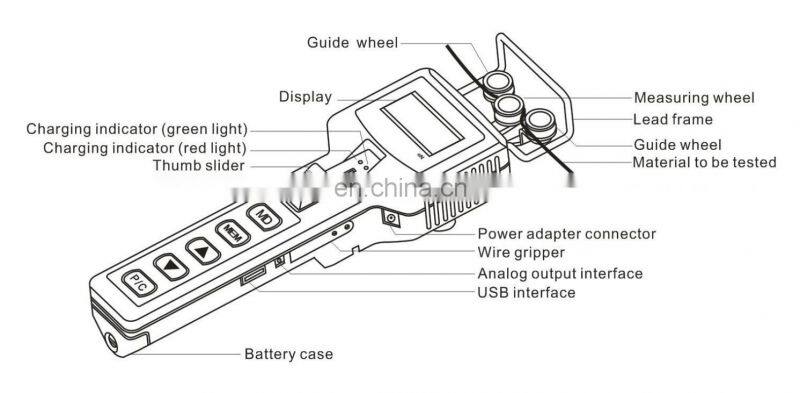

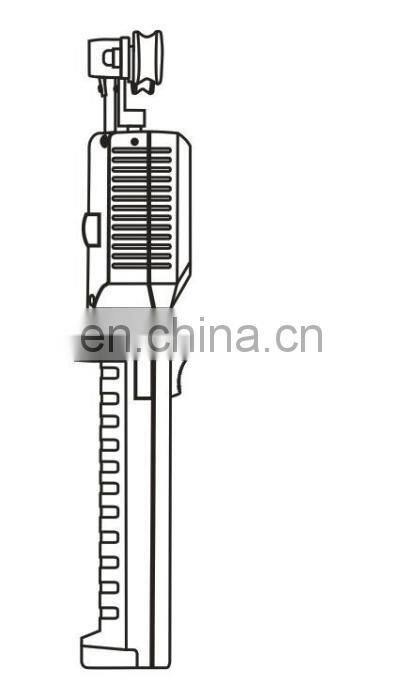

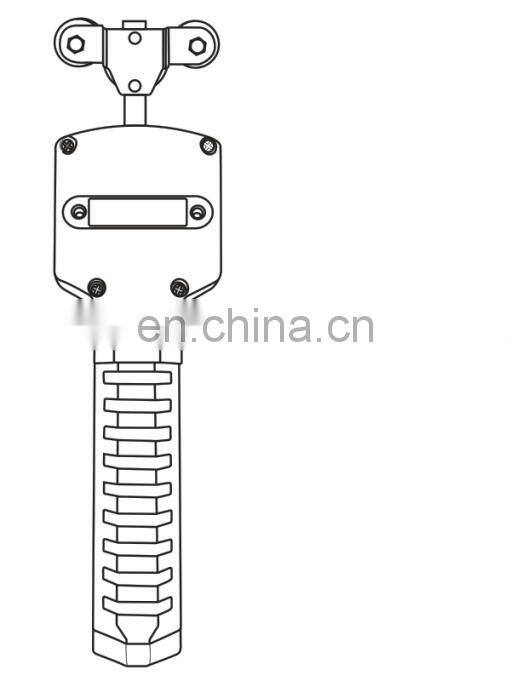

Exterior structure

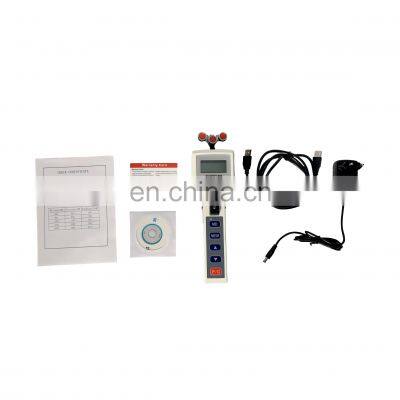

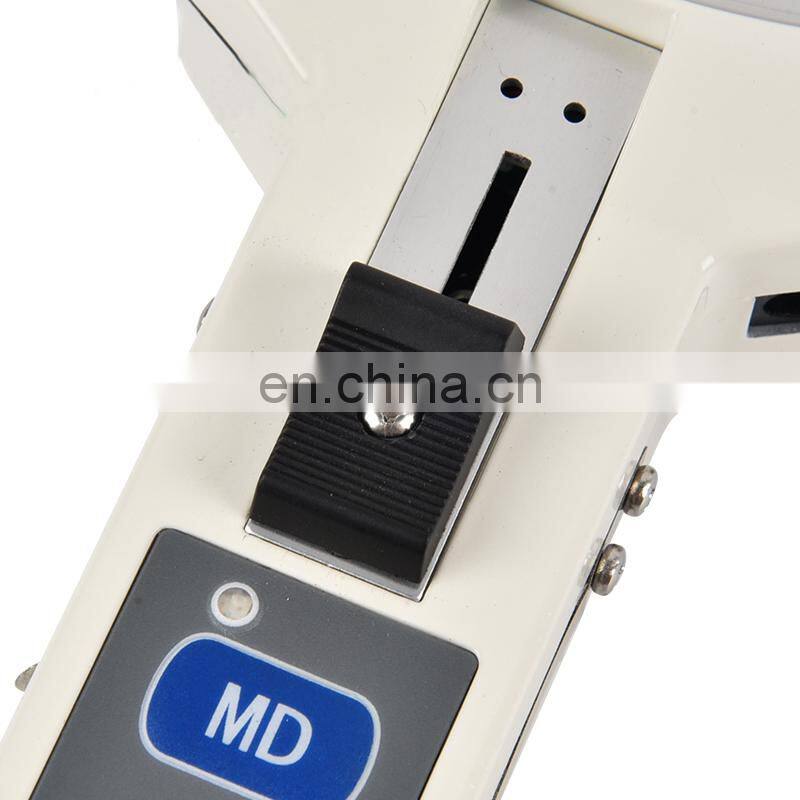

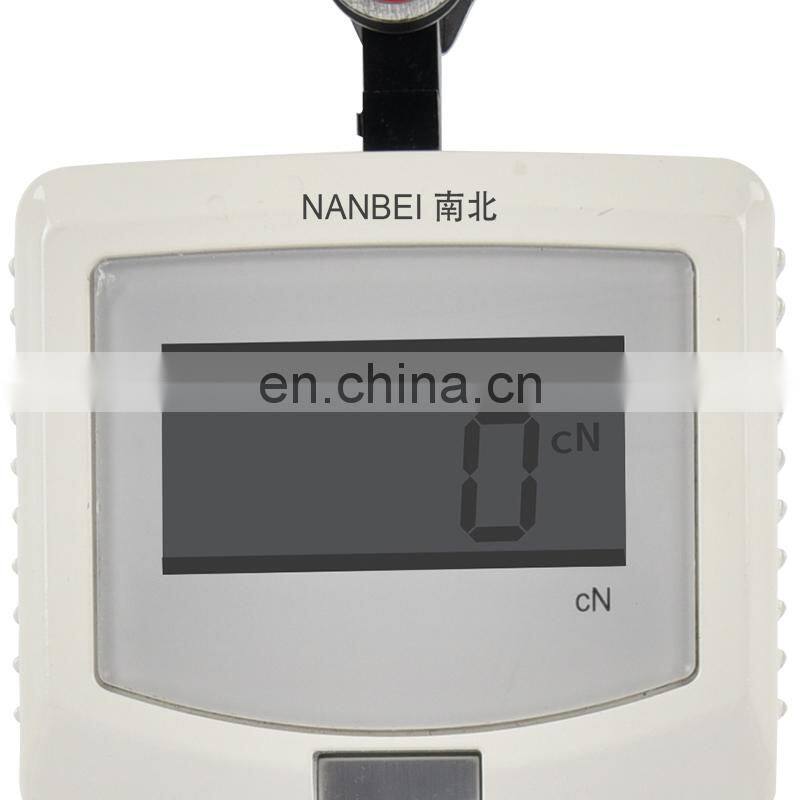

More Pictures

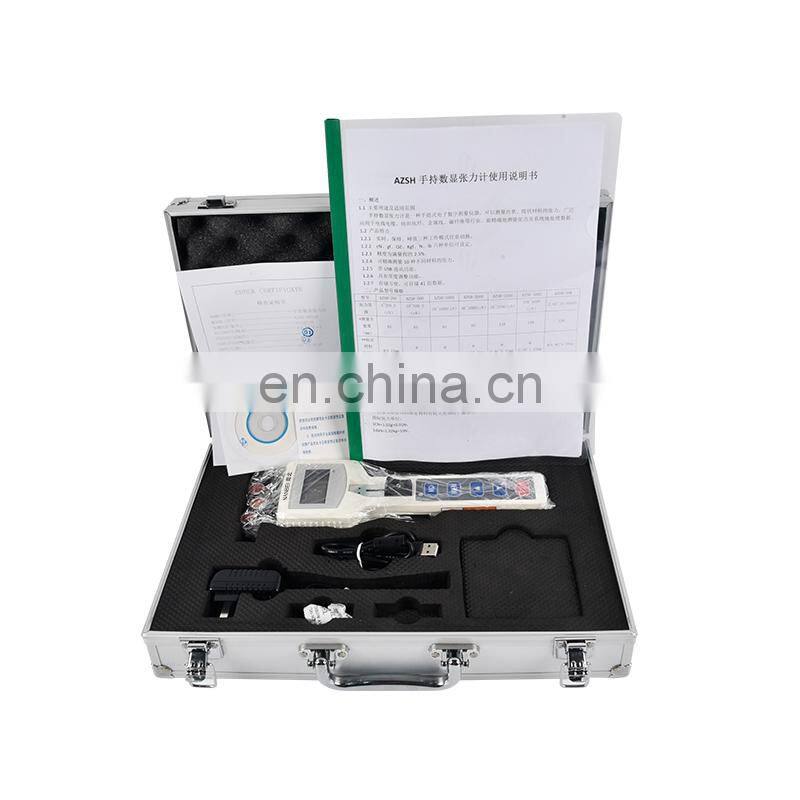

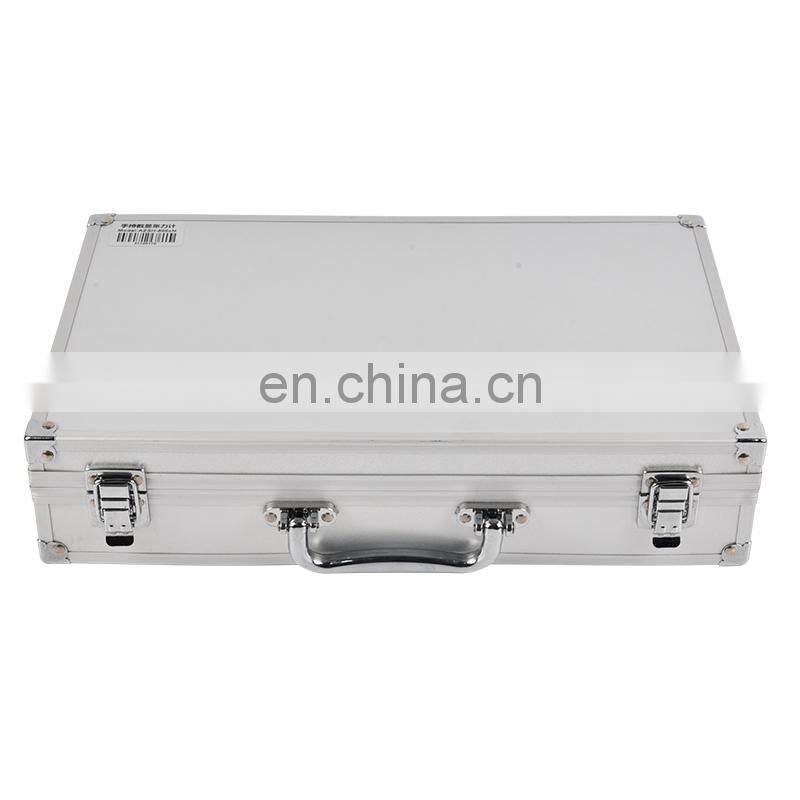

Packing & Delivery
Related Products
Company Profile
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set,sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express
.We can also provide reasonable solutions according to your transportation requirements
.We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
