Product Description
Product Description

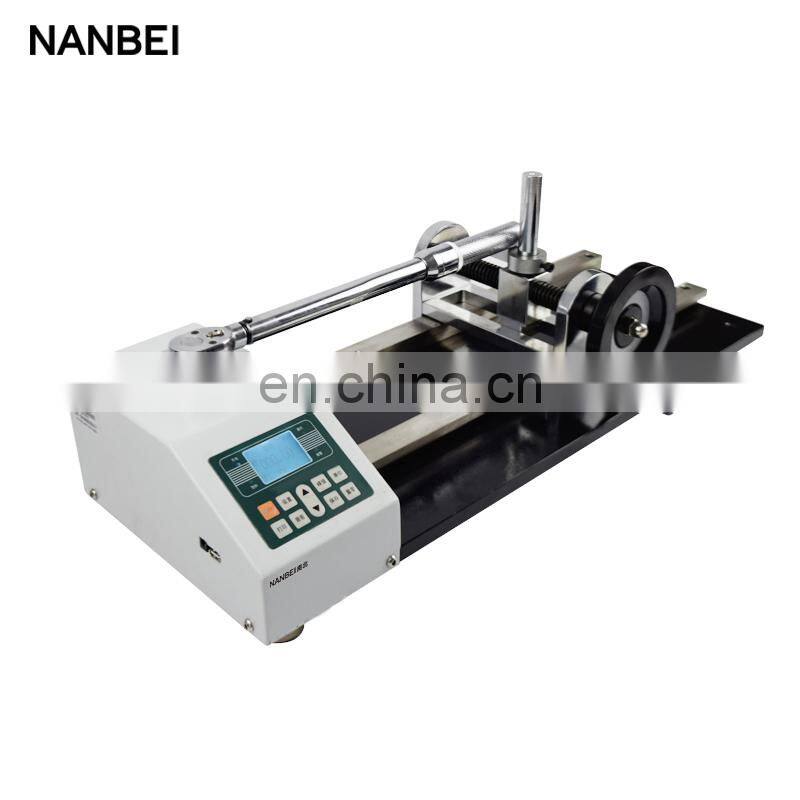

Torque wrench calibrator tester
Application and Usage
NNJ torque wrench calibrator tester is a test torque wrench, torque screwdriver special equipment
Mainly used to detect a variety of fixed-type torque wrench, digital torque wrench, preset torque wrench, torque screwdriver, screwdriver and other equipment involved in tightening force and products.
Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industry.
More Details
Feature
1. High precision, high resolution, sampling speed, full screen display.
2. The use of high-precision torque sensor, with torque direction display.
3. The upper and lower limits of the set, red and green light and the sound of light and light alarm.
4. The three units are converted to each other (N.m, kg.cm, Ib.in).
5. Real-time, peak, automatic peak three modes can be free to switch.
6. Using USB interface and PC communication 7. Peak hold, auto release function, release time free setting.
8. Storage capacity, can save 1000 sets of test data.
9. No operation Automatic shutdown function, the time can be set freely.
Specification
Model | NNJ-30 | NNJ-50 | NNJ-100 | NNJ-200 | NNJ-300 | NNJ-500 | NNJ-1000 | ||||||||
Measurement range / scale value | N.m | 30.000/0.001 | 50.000/0.001 | 100.00/0.01 | 200.00/0.01 | 300.00/0.01 | 500.00/0.01 | 1000.0/0.1 | |||||||
Kgf.cm | 306.31/0.01 | 510.52/0.01 | 1021.0/0.1 | 2042.0/0.1 | 3063.1/0.1 | 5105.2/0.1 | 10210/1 | ||||||||
lbf.in | 265.86/0.01 | 443.11/0.01 | 886.2/0.1 | 1772.4/0.1 | 2658.6/0.1 | 4431.1/0.1 | 88622/1 | ||||||||
Dimension | 645mm×420mm×220mm | 1050mm×540mm×300mm | 1250mm×500mm×800mm | 1433mm×685mm×360mm | |||||||||||
Width stroke | 210mm | 330mm | 0~360° | 450mm | |||||||||||
Height stroke | 90mm | 140mm | |||||||||||||
Accuracy | ±1% | ||||||||||||||
Power | 7.2V 1.2V×6 Ni-MH rechargeable battery pack | ||||||||||||||
Charging time | 4~6h | ||||||||||||||
Battery continuous use of time | About 10 hour | ||||||||||||||
Battery | ≥300 time | ||||||||||||||
Power Adapter | Input AC220V50HZ output:DC10V300mA | ||||||||||||||
Net weight | 30kg | 55kg | 110kg | ||||||||||||
Recommendations
Packing & Delivery
Company Profile
Customer concerns
Certificate
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
