Product Description
Product Description

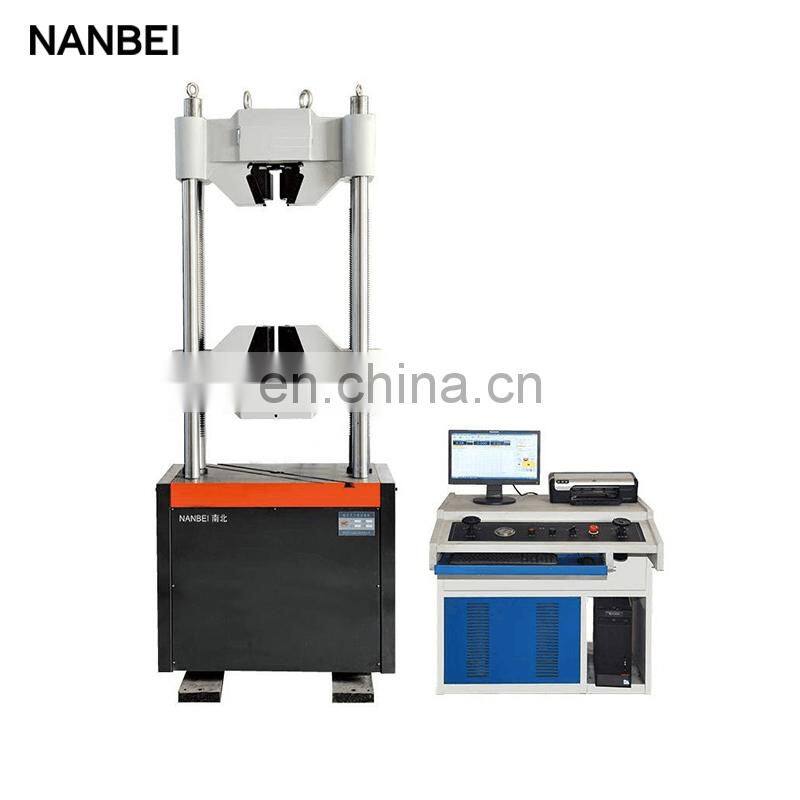

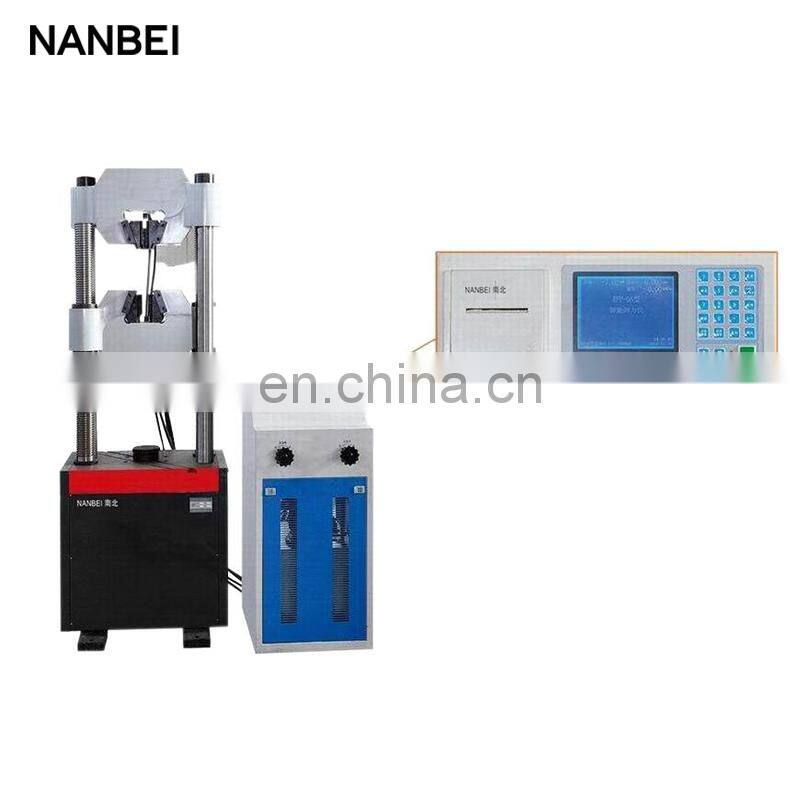

Electro-hydraulic Universal Testing Machine
Product introduction：
Microcomputer Controlled Electro-hydraulic Servo Universal Testing Machine adopts the cylinder underneath type main engine,use a load cell to measure force. The machine configured Italian oil pump unit generator system, oil source and independent low noise clamping oil source. Use Digital program-controlled amplifier to achieve all sorts of model of the closed-loop control such as constant force, constant stress, constant deformation, constant speed, etc.
More Details Photos
Specification
Model | WAW-100 | WAW－300 | WAW－600 | WAW－1000 | WAW－2000 | WAW－3000 | |||||||||||
Maximum test force | 100kN | 300kN | 600kN | 1000kN | 2000kN | 3000kN | |||||||||||
Host structure | Two column | Two column | Four column | Four column | Four column | Four column | |||||||||||
Indication accuracy | ±1% or ±0.5% | ||||||||||||||||
Load resolution (KN) | 1/300000 | ||||||||||||||||
Effective measurement range (KN) | 2%～100% | ||||||||||||||||
Deformation accuracy | Better than ±0.5% | ||||||||||||||||
Deformation Resolution (μm) | 2 | ||||||||||||||||
Displacement indication Accuracy | Better than ±1% | ||||||||||||||||
Stress control speed (Mpa / s) | 1～45 | ||||||||||||||||
Strain control speed (mm / s) | 0.001～0.5 | ||||||||||||||||
Displacement control speed (mm / s) | 0.02～3 | ||||||||||||||||
Testing space | Stretching space (mm) | 600 | 600 | 600 | 650 | 750 | 800 | ||||||||||
Compression space (mm) | 550 | 550 | 550 | 580 | 650 | 700 | |||||||||||
effective width(mm) | 460 | 460 | 500 | 520 | 650 | 750 | |||||||||||
Cylinder（mm） | 200 | 200 | 250 | 250 | 250 | 250 | |||||||||||
Host Size（mm） | hydro-cylinder underneath type (Double space) | 720×580 ×1770 | 720×580 ×1770 | 800×620 ×2050 | 860×660 ×2170 | 950×620 ×3000 | 1100×750 ×3100 | ||||||||||
hydro-cylinder placed up type（Single space） | 850×540 ×2600 | 850×540 ×2600 | 980×640 ×3100 | 1100×720 ×3700 | 1300×900 ×4300 | 1300×900 ×4300 | |||||||||||
Round sample size（mm） | Φ5～Φ20 | Φ10～Φ32 | Φ13～Φ40 | Φ20～Φ60 | Φ20～Φ80 | Φ20～Φ100 | |||||||||||
Flat sample size (thickness × width mm) | 0～15×75 | 0～15×75 | 0～30×80 | 0～40×110 | 10～60×120 | 10～80×120 | |||||||||||
Total power（kw） | 2.1 | 2.1 | 2.3 | 2.3 | 3.5 | 5 | |||||||||||
Voltage | 220V and 380V ( Can configured with national standard voltage) | ||||||||||||||||
Weight（kg） | 1500 | 1500 | 2500 | 3100 | 5000 | 6500 | |||||||||||
Recommendations
Packing & Delivery
Company Profile
Customer Concerns
FAQ
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can you visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
1.Warranty : 1 year
2.We supply free part for quality problem in warranty
3.Long life technical support and service
