ASTM D1925 ASTM E313 Portable Spectrophotometer CS-520
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18Kw 24KW 72Kw Electric Heating Steam GeneratorNegotiableMOQ: 1 -
18kw 24kw 32kw 72KW Electric Steam Generator for IndustryNegotiableMOQ: 1
-
Mini Biological Laboratory Pharmaceutical Medical Drying Machine Vacuum Freeze DryerNegotiableMOQ: 1
-
Multi Manifold Top Press Medicine Laboratory Vertical Vacuum Freeze DryerNegotiableMOQ: 1
-
Rotary Vane Single Stage Vacuum PumpNegotiableMOQ: 1
Product Description

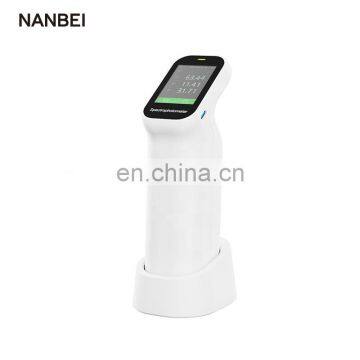

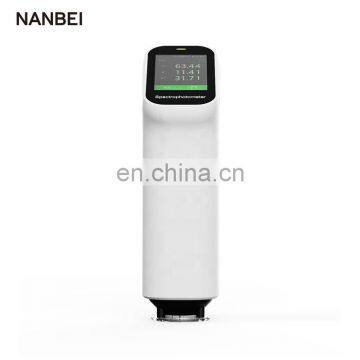

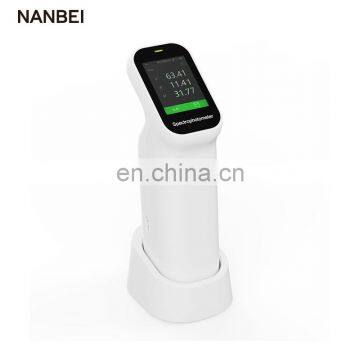

Portable Spectrophotometer CS-520
------ Revolution in color measurement
Portable spectrophotometer CS-520 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation, switchable apertures, UV included / excluded... it will fully upgrade the user experience.
Part 1. Product Features
1. 20 kinds of color indexes and 26 kinds of illuminants
Spectrophotometer CS-520 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab, CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.
2. Excellent inter-instrument Agreement
inter-instrument agreement ＜0.2 which ensures test results consistency of multiple devices.
3. Auto calibration
The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.

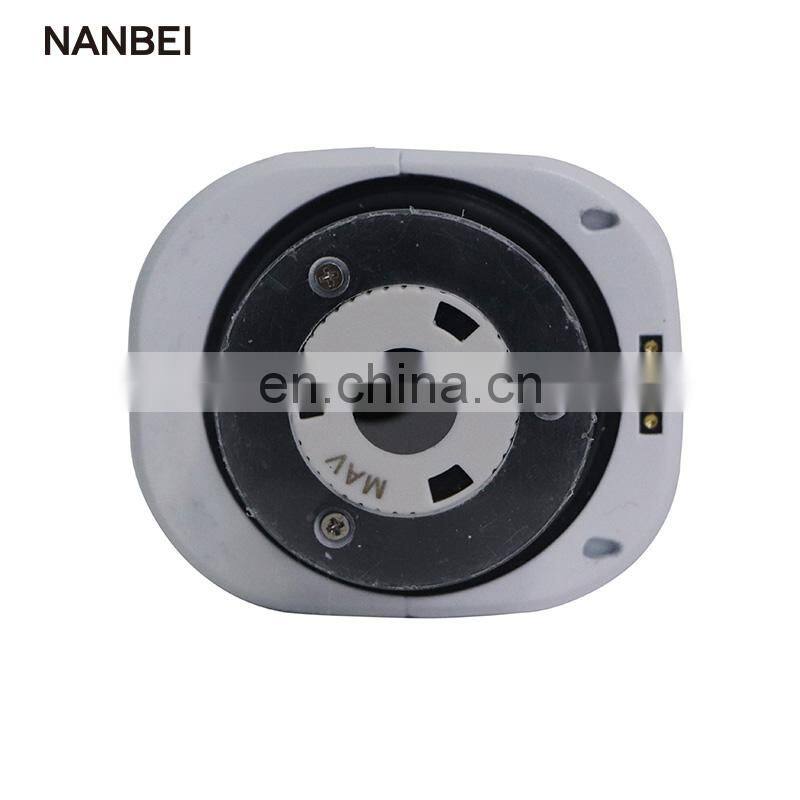

4. Switchable Apertures 11mm/6mm/1*3mm
Durable and stable aperture size to measure samples with different sizes
5. UV Included/ UV Excluded
UV Included/ UV Excluded to measure color and color difference for samples with fluorescence

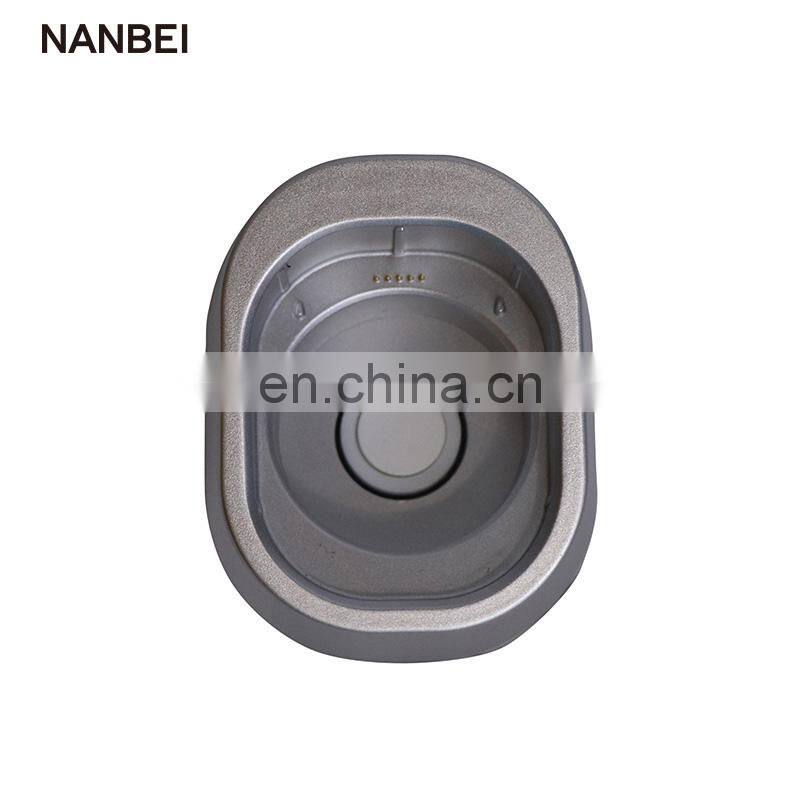

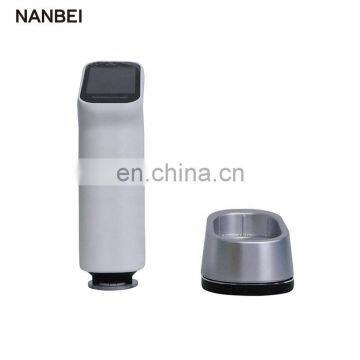

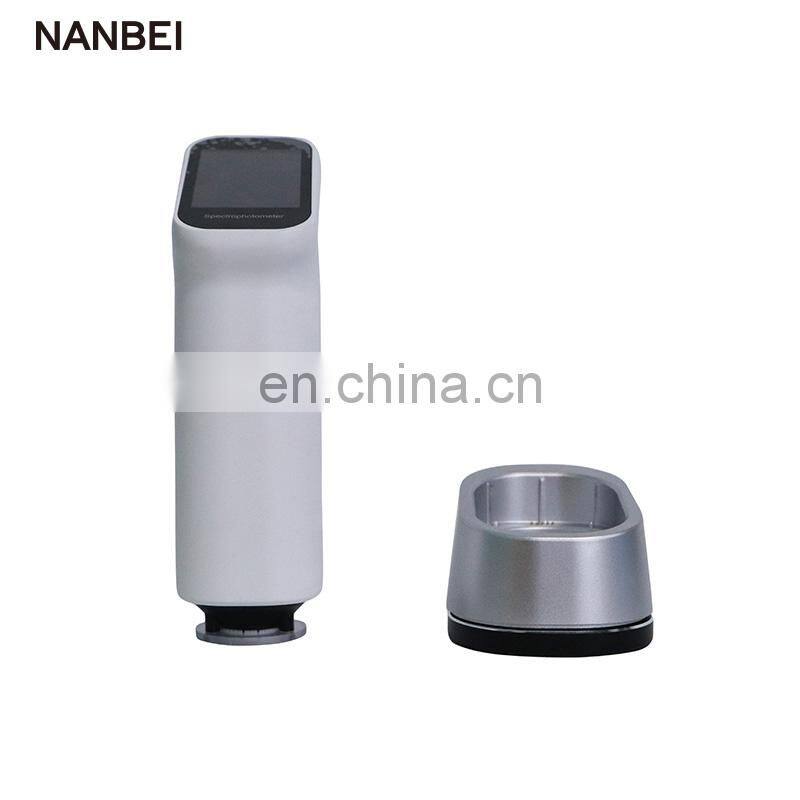

6. Multi-function calibration base
The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.
7. Connect to the mobile device App to expand more functions
Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color difference test. From APP, we can also obtain instrument data or download data to the instrument.

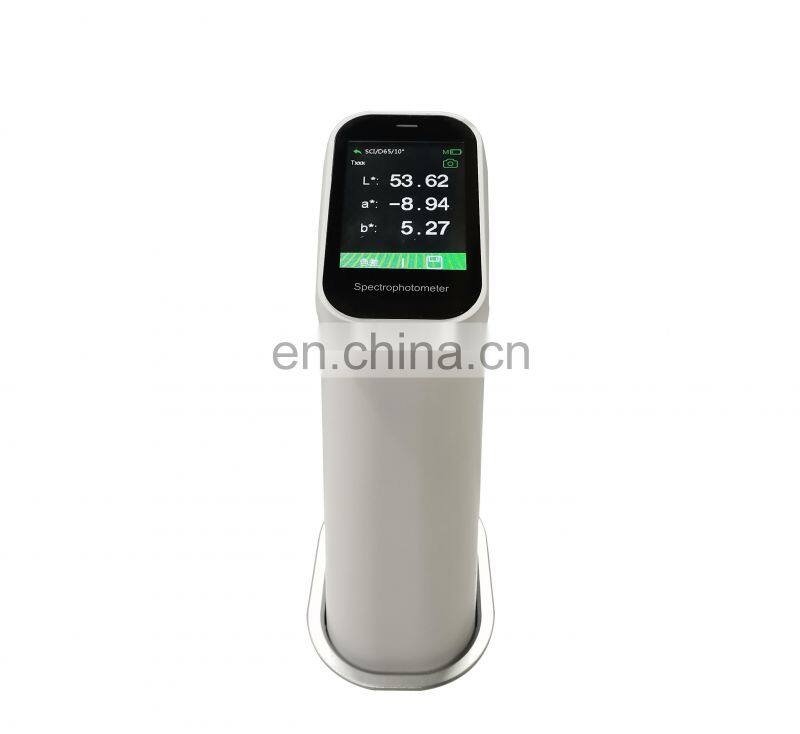

8. Camera to see the measurement area
Integrated camera to see the measurement area for accurate test
Part 2. Parameter
Model |
Spectrophotometer CS-520 |
Geometry |
d/8（diffused illumination,8° viewing） SCI（Specular Component Included），SCE（Specular Component Excluded）
|
Light Source |
LED(Full band balanced LED) |
Color Spaces and Indices |
Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM
E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness
(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK (A,T,E,M), Milm, Munsell, Opacity, Color strength
|
Illuminants |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF, U30,U35,DLF,NBF,TL83,TL84
|
Observer Angles |
2°,10° |
Sensor |
256 pixel CMOS sensor |
Calibration |
Auto |
Wavelength Interval |
10nm |
Wavelength Range |
400-700nm |
Reflectance Range |
0-200% |
Reflectance Resolution |
0.01% |
Sphere Size |
40mm |
Repeatability |
Chromaticity value: Max. :dE*ab< 0.04 Average :dE*ab< 0.03 Standard deviation within ΔE*ab 0.02 (when a white tile is measured 30 times at 5-seconds interval)
Reflectance: Standard deviation < 0.1% |
Illumination Area/Aperture |
MAV:Φ8mm/Φ11mm MAV:Φ4mm/Φ6mm MINI:1*3mm |
Inter-instrument agreement |
ΔE*ab＜0.2 （BCRA Series Ⅱ, average measurement of 12 tiles，MAV/SCI） |
Test Time |
About 1s |
Storage |
APP mass storage |
Battery |
Rechargeable, 8000 times continuous tests, 3.7V/3000mAh |
Screen |
IPS Full Color Screen,2.4 inches |
Interface |
USB，Bluetooth |
Lamp Lifetime |
10 years, 1 million tests |
Language |
Chinese and English |
Software |
Andriod,IOS,Windows |
Pass Metrology |
Yes, metrology level I |
Camera |
with |
Instrument Size |
L x W x H (77.8mm x 53.2mm x 185.7mm) |
Weight |
About 300g |
Part 3. Packing List
Qty. |
Name |
Qty. |
Name |
1 |
Main Instrument |
1 |
Power Cable |
1 |
Operating Manual |
1 |
Charger base |

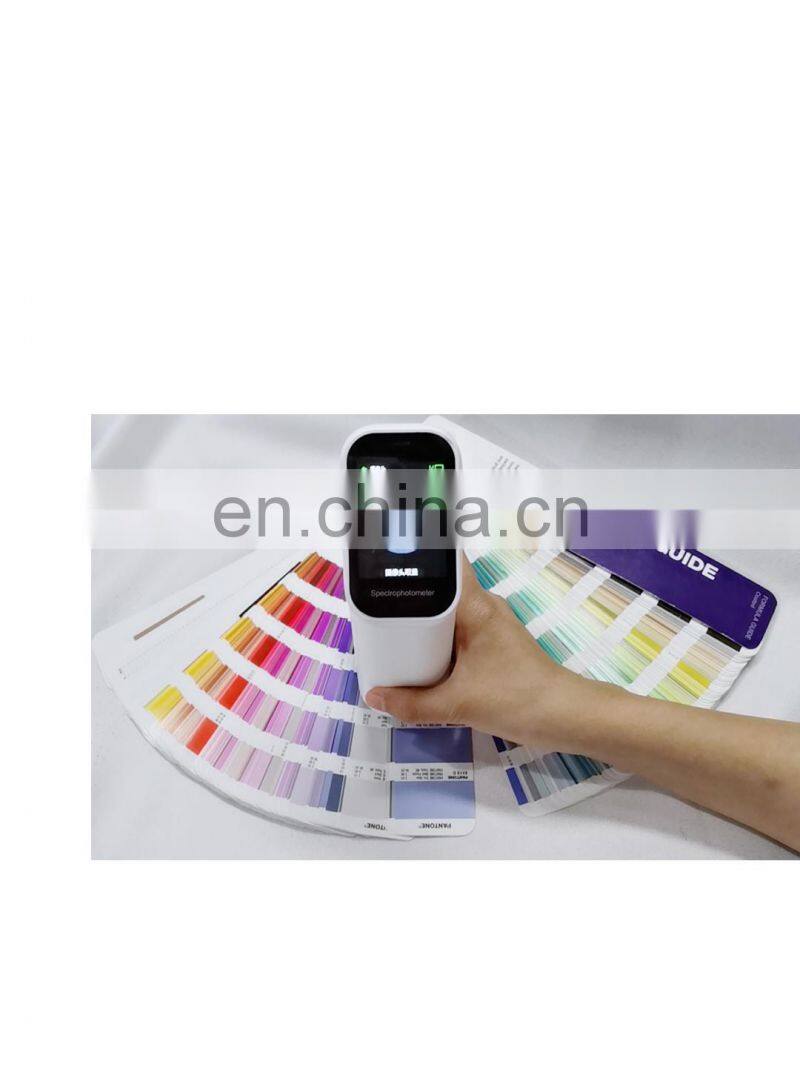

Part 4. Application
Part 5. Warranty
a. One Year Warranty Time.
b. Every instrument comes with verification certification to ensure the accuracy of the test result and save first year calibration cost for customer.

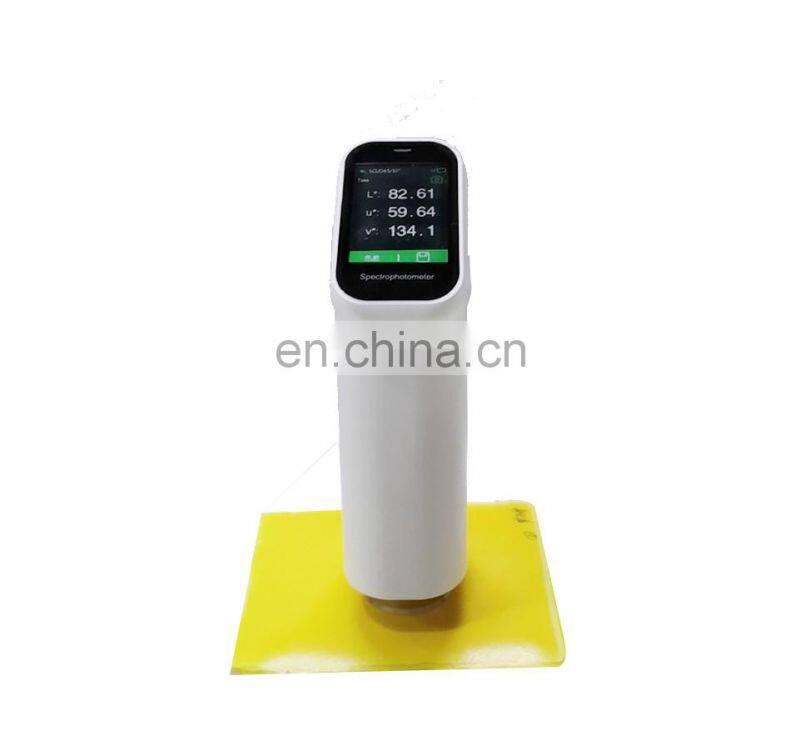

Part 5. More details pictures
