18Kw 24KW 72Kw Electric Heating Steam Generator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
18kw 24kw 32kw 72KW Electric Steam Generator for IndustryNegotiableMOQ: 1 -
Mini Biological Laboratory Pharmaceutical Medical Drying Machine Vacuum Freeze DryerNegotiableMOQ: 1
-
Multi Manifold Top Press Medicine Laboratory Vertical Vacuum Freeze DryerNegotiableMOQ: 1
-
Rotary Vane Single Stage Vacuum PumpNegotiableMOQ: 1
-
Medical Use Sterilization Machine EO Equipment ETO Gas Sterilizer Sterilization AutoclaveNegotiableMOQ: 1
Product Description
Small capacity electric heating steam generator
1)Features:
1, the unique design of the boiler water circulation in a very short period of time quickly and efficiently to achieve the set temperature and pressure, even in the replenishment process would not have temperature and pressure fluctuations.
2, the unique built-in steam moisture separator ensure ≤2%. This is different from the most significant features of other similar products.
3, electric and furnace with flange connection, which will help replace, repair and maintenance.
4, electric heating pipe can be set according to the number of electric heating segments to control, for example, 108KW electric heating boilers heating by the six 18KW tubes, it can be divided into three segments, to control. Users can independently regulate the use of steam power, in order to achieve more energy, more convenient purpose.
2)Safety performance:
1. Products fitted with a safety valve by boiler inspection institute, even in the case where the control system is not flexible, when the pressure exceeds the set pressure, safety valve will open automatically to prevent the boiler explosion due to excessive pressure.
2, the product is equipped with low water protection, when water supply is stopped, the boiler will automatically stop working,to prevent the boiler dry electric heating element damage and even lead to burnout phenomenon. 3,the products contains leakage protection, even in the case of a short circuit caused by improper operation of the boiler, the boiler will drain automatically cut off the circuit, timely good control lines.
3)Operation:
1, the operating system of boiler is automatic controlling, the water tank connected to the boiler comes, boiler power is connected, just press the key, the boiler will run automatically
2, the detailed installation methods, operating procedures, maintenance and other information please contact us or to our website, Download "automatic electric heating steam boiler operating instructions."
Uses: School biological laboratory, washing equipment (dry-cleaning machines, washing machines, ironing machine,iron, etc.), biological equipment (reactor, fermentation, sterilization tank), packaging machinery equipment (hotels,hostels, Schools, mixing station), hot water supply, canteen steamed rice, food sterilization, legumes food processing,
maintenance and other concrete surfaces.
◆Usage and Application
Automatic Electric Steam Generator is the best and necessary equipment. Home-use:for heating water,cooking,high-temperature sterilization etc..
Industry-use:Provide steam for steam iron and ironing table,reaction kettle,jacket kettle,concrete curing,etc

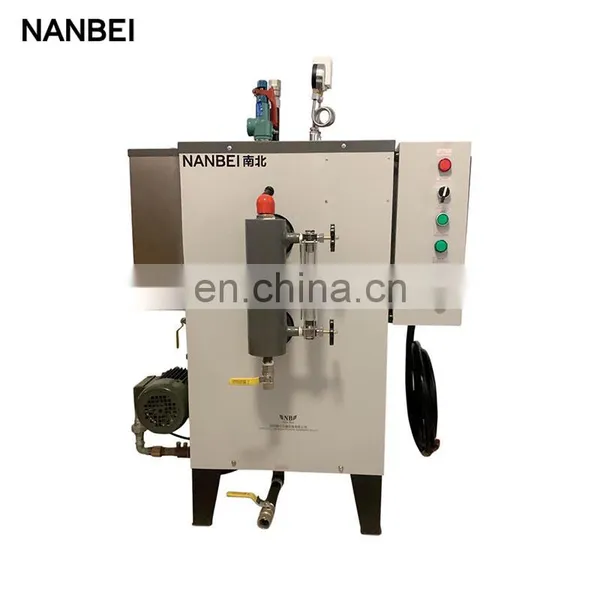

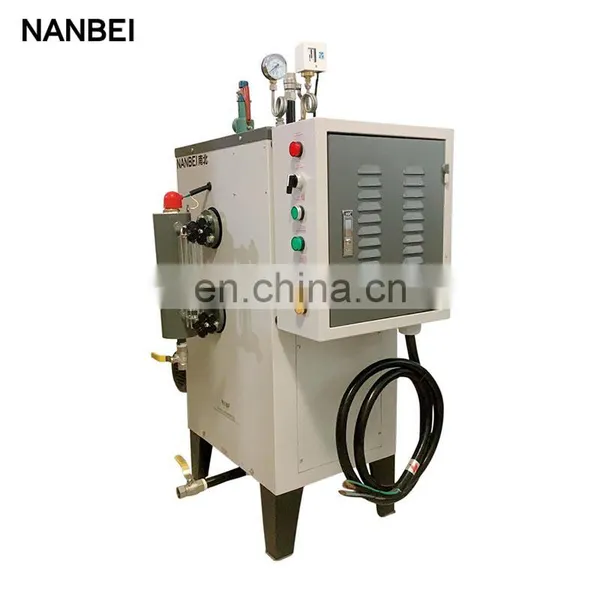

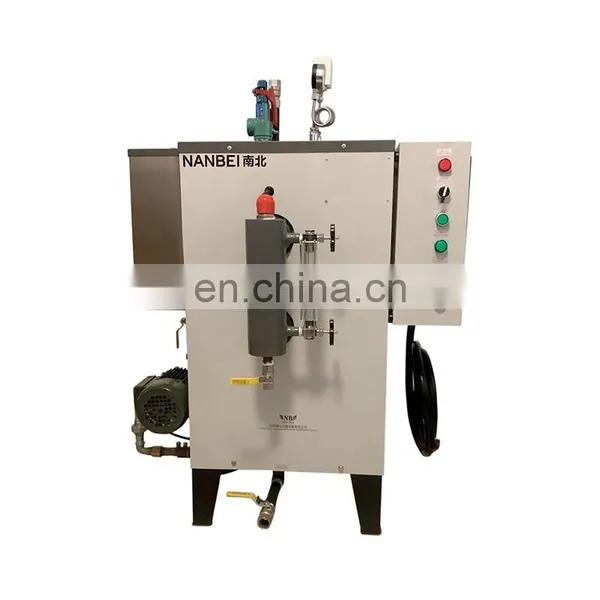

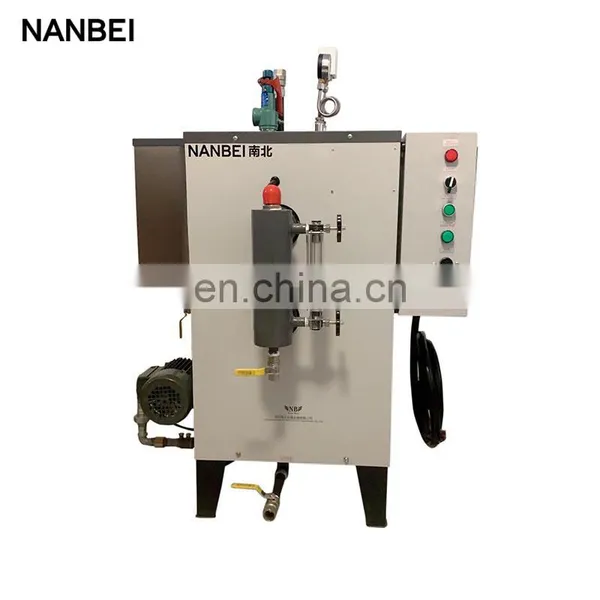

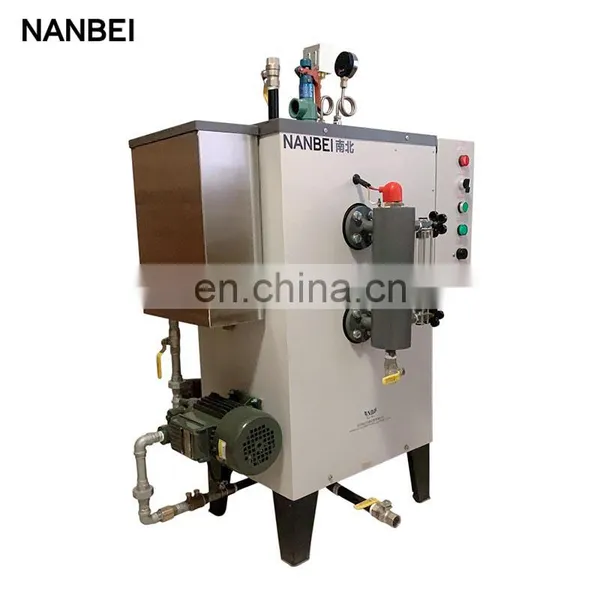

Detail picture:
Specification
Model |
Dimension |
Power (KW) |
Evaporation capacity (Kg) |
Temperature (℃) |
Voltage (V) |
Pressure (Mpa) |
Water volume (Kg) |
Steam pipe diameter (mm) |
ND-6kw |
735*470*920 |
6 |
10 |
151/170 |
380 |
0.4/0.7 |
16 |
DN15 |
ND-9kw |
735*470*920 |
9 |
16 |
151/170 |
380 |
0.4/0.7 |
16 |
DN15 |
ND-12kw |
755*490*950 |
12 |
22 |
151/170 |
380 |
0.4/0.7 |
20 |
DN15 |
ND-18kw |
755*490*950 |
18 |
33 |
151/170 |
380 |
0.4/0.7 |
20 |
DN15 |
ND-24kw |
800*575*970 |
24 |
40 |
151/170 |
380 |
0.4/0.7 |
24 |
DN15 |
ND-36kw |
800*575*970 |
36 |
48 |
151/170 |
380 |
0.4/0.7 |
24 |
DN15 |
ND-48kw |
845*575*1130 |
48 |
66 |
151/170 |
380 |
0.4/0.7 |
29 |
DN15 |
ND-72kw |
845*575*1130 |
72 |
102 |
151/170 |
380 |
0.4/0.7 |
29 |
DN15 |
Packing & Delivery
Factory:
Our service
Pre-sale service
24hours online to ensure quick response to customers' inquiry or online message;
Guide customers to choose the best suitable machine model;
Offer detailed specification and competitive prices;
Contract execution
Machine production will be arranged strictly according to the contract;
Machine photos will be sent to you for inspection during production;
Send customs clearance documents by DHL;
Update latest news after delivery and prepare customs clearance;
After-sale service
12 months warranty except for wear parts;
Broken spare parts (except for wear parts) will be sent for free due to quality problems;
In time response to customers technical problems;
New products update for customers' reference
Our Company:
