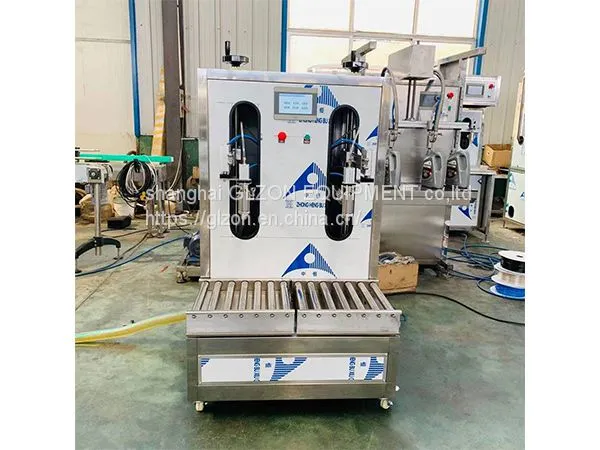

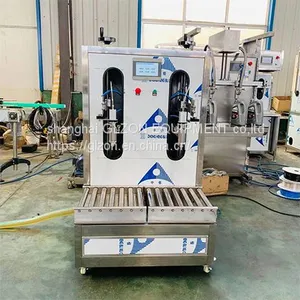

Help CenterSemi-automatic 18L Weighing+capping
Related Products
-
Semi-automatic 200L Weighing and Filling MachineNegotiableMOQ: 10 Bags -
Semi-automatic 200L Weighing and Filling MachineNegotiableMOQ: 10 Bags
-
Ton Barrel Filling MachineNegotiableMOQ: 10 Bags
-
Automatic Weighing Filling MachineNegotiableMOQ: 10 Bags
-
Automatic Weighing Filling MachineNegotiableMOQ: 10 Bags
main feature
This system adopts weighing filling, with high measurement accuracy and is not affected by materials.
2. At the end, the feeding valve is composed of fast and slow speed by frequency conversion, which can improve the filling speed and precision.
3 Large measurement range, measurement error plus or minus 10g/barrel. (calculated by 18L)
4. The filling head adopts vacuum suck-back anti-dripping device, and the poured material has no bubble, which has good effect.
Adopt electrical and pneumatic components, with low failure rate and stable performance.
Main structure and working principle
Computer quantitative filling machine consists of feeding system, weighing system, frame, pneumatic control, control system and unpowered raceway.
Feeding mode: It is required to feed continuously and stably (feeding by feeding pump or hopper under pressure).
Filling method: ordinary conventional filling and lifting submersible filling (selected when ordering according to needs)
Frequency conversion deceleration system is adopted at the end of filling process, which automatically decelerates when it approaches the quantitative value to prevent overflow.
Adopt vacuum suction anti-drip filling nozzle to prevent material from dripping.
The weighing system consists of weighing bracket, sensor, weighing platform, unpowered roller and frame support and filling system.
During use, the weighing platform is not allowed to be subjected to additional external forces.
Technical parameters:
Model CD-QZD weighing and filling machine has a power rate of 2.2KW.
The filling capacity is 5-25KG, and there are 2 filling heads.
The production capacity is 80-120 barrels per hour/head (calculated by 20 liters) and the weight is 180KG.
Filling accuracy ≤0.5% Overall dimensions 900X700X1600 (length * width * height)
