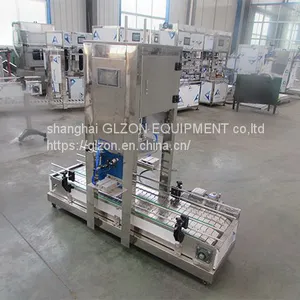

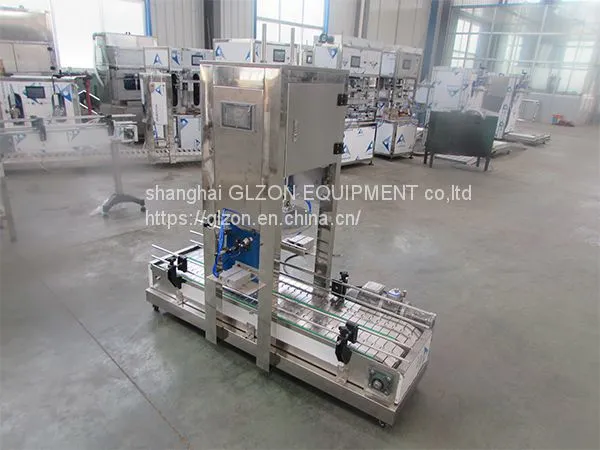

Automatic Roller Capping Machine

Product features:

This machine is widely used for gland sealing of middle barrels, mainly for gland sealing of lubricating oil barrels, antifreeze, hydraulic oil, paint, fertilizer, washing powder, chemical industry and other 10 -20 liter middle barrels.

With double pneumatic gland, the gas in the barrel can be extruded, thus avoiding the phenomenon of barrel expansion.

Computer control, easy to operate and easy to use. The capping machine is an important part of the production line, located behind the filling equipment, which is used to complete the capping of the middle barrel. The capping machine is a one-time capping to ensure the tightness of the capping and the flatness of the capping after capping. The capping machine is to position the heavy barrel directly below the capping plate, and then automatically capping the barrel after positioning. It is suitable for the capping of plastic barrels such as oil coatings and latex paints. (This machine can be customized according to customer requirements)

Technical parameters:

Power rate: 0.5-0.7 (MPa)

Dimensions: length 1500X width 450x height 1400 (customized according to customer requirements)

Adjustment range: height 5~20cm and width 0~10cm

Weight: 120Kg

Production capacity: 300 barrels per hour
