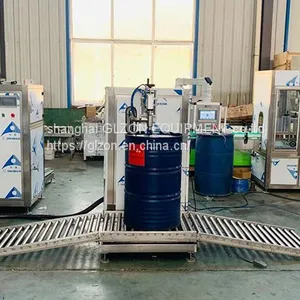

Help CenterSemi-automatic 200L Weighing and Filling Machine
Related Products
main feature
This system adopts weighing filling, with high measurement accuracy and is not affected by materials.
2 Frequency conversion deceleration system is adopted at the end of filling process, which automatically decelerates when it approaches the quantitative value.
3 Large measurement range, measurement error ≤0.1%/ barrel.
4. The filling head adopts vacuum suck-back anti-dripping device, and the poured material has no bubble, which has good effect.

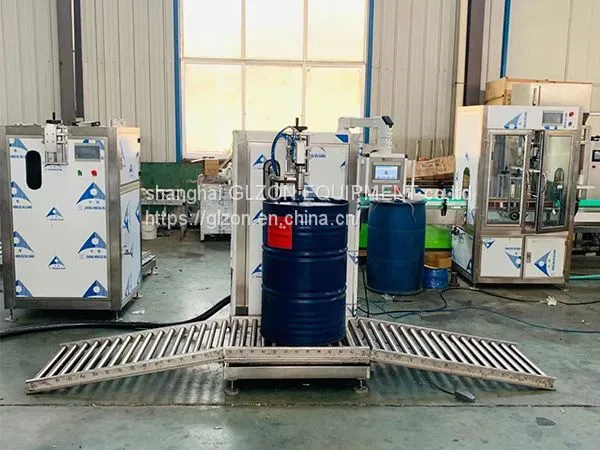

Main structure and working principle
The computer quantitative filling machine consists of feeding system, weighing system, frame, pneumatic control and control system.
Feeding mode: It is required to feed continuously and stably (feeding by feeding pump or hopper under pressure).
Filling method: ordinary conventional filling and lifting submersible filling (selected when ordering according to needs)
The weighing system is supported and filled by weighing bracket, sensor, weighing platform, unpowered drum and frame.
During use, the weighing platform is not allowed to be subjected to additional external forces.
Technical parameters:
Filling capacity: 20-30 barrels per hour
Applicable bottle height: unlimited.
Filling capacity: 100-200kg
Filling accuracy: ≤0.1%
Applicable bottle diameter: unlimited.
Power rate: 4KW
Weight: 300Kg
Host size: 930*750*1700 (length * width * height)
Roller size: 3300*720 (length * width)
Upper slope: 1200*720 (length * width)
Weighing platform: 900*720*260 (length * width * height)
Lower slope: 1200*720 (length * width)
